Schneider Electric
NSYZHPLA53G900mm polyester plinth - partly burried - for vers.PLAZ or PLAZT W500xD320mm
Schneider Electric NSYZM253G
Polyester glassreinforced plinth for encl. PLM75 front opening IP44-IK10 RAL7035
- MPN
- NSYZM253G
- EAN
- 3606480777912
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYZM253G?

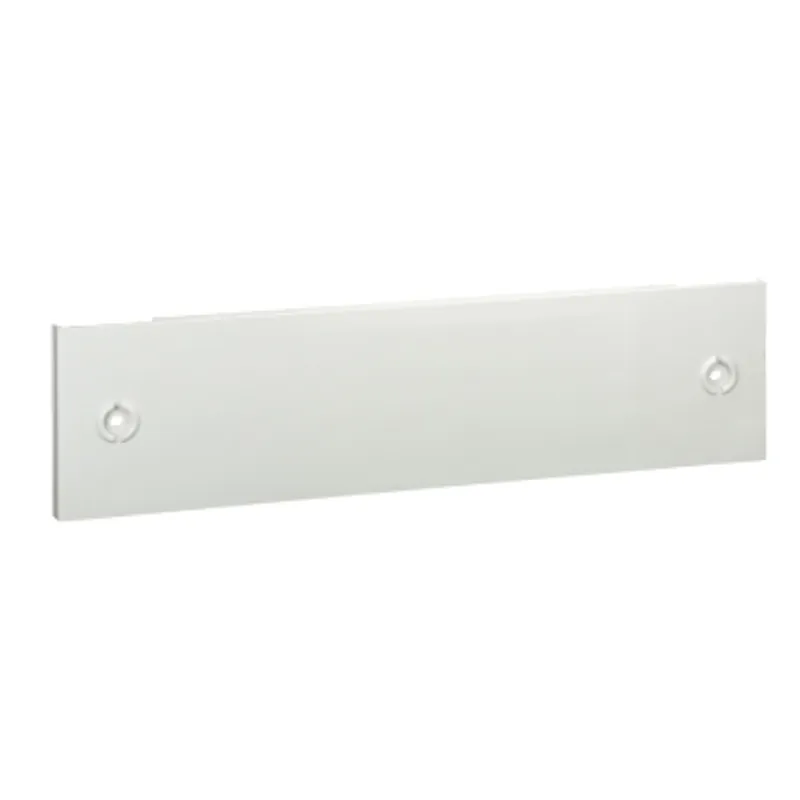

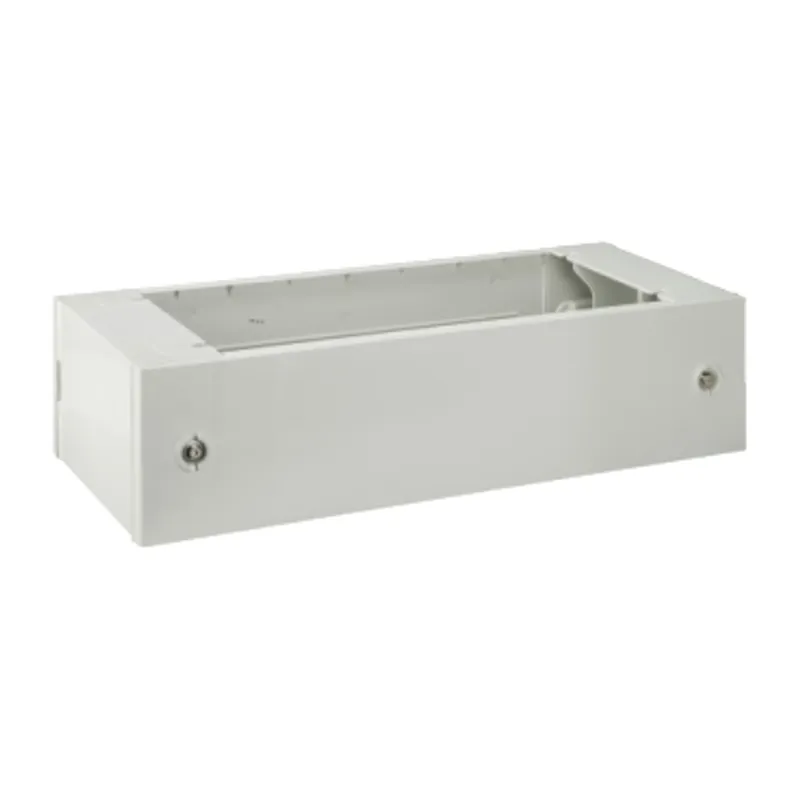

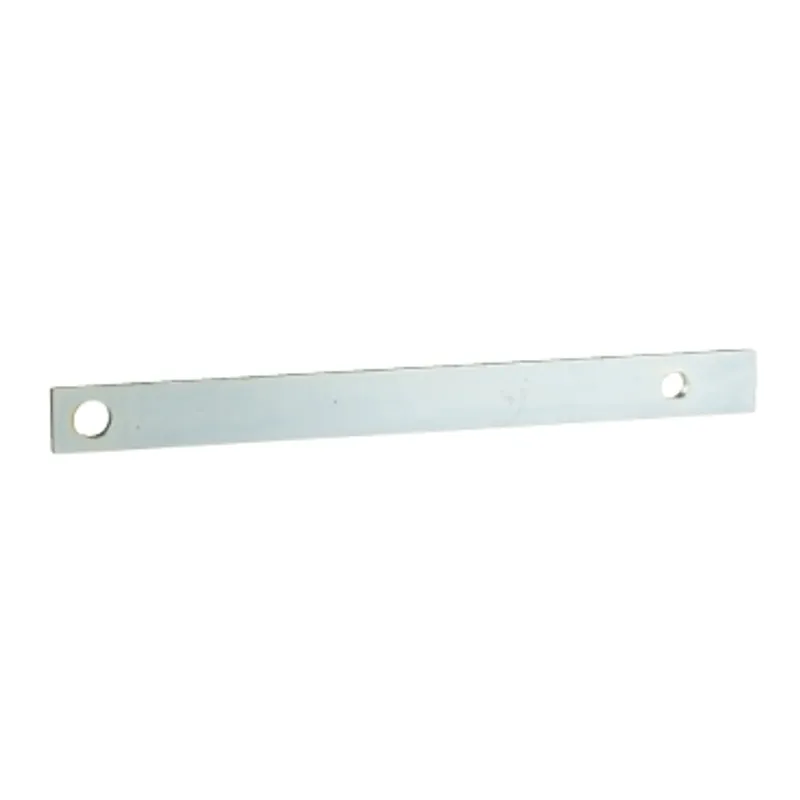

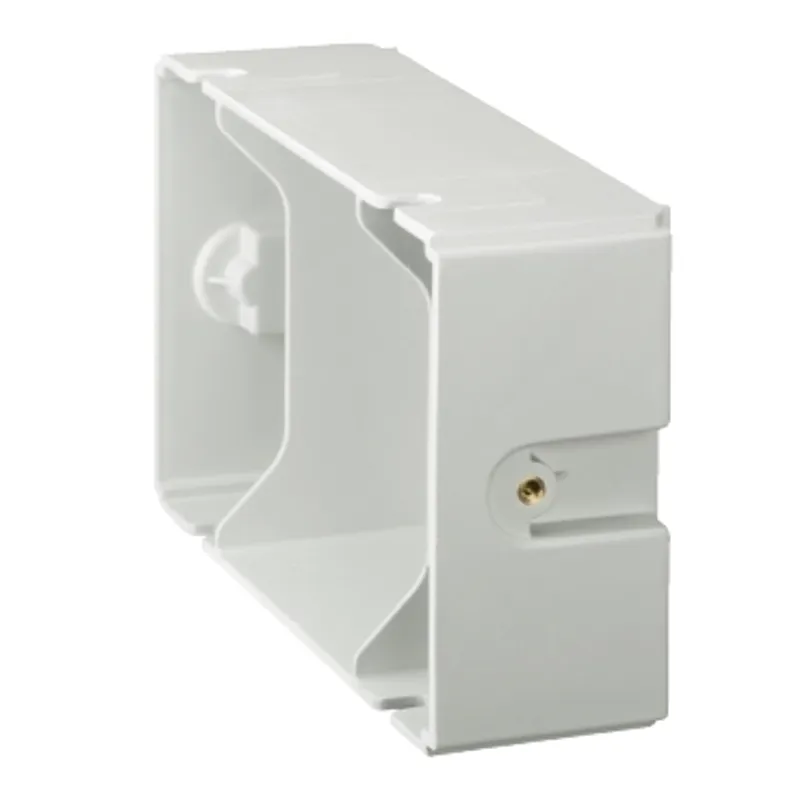

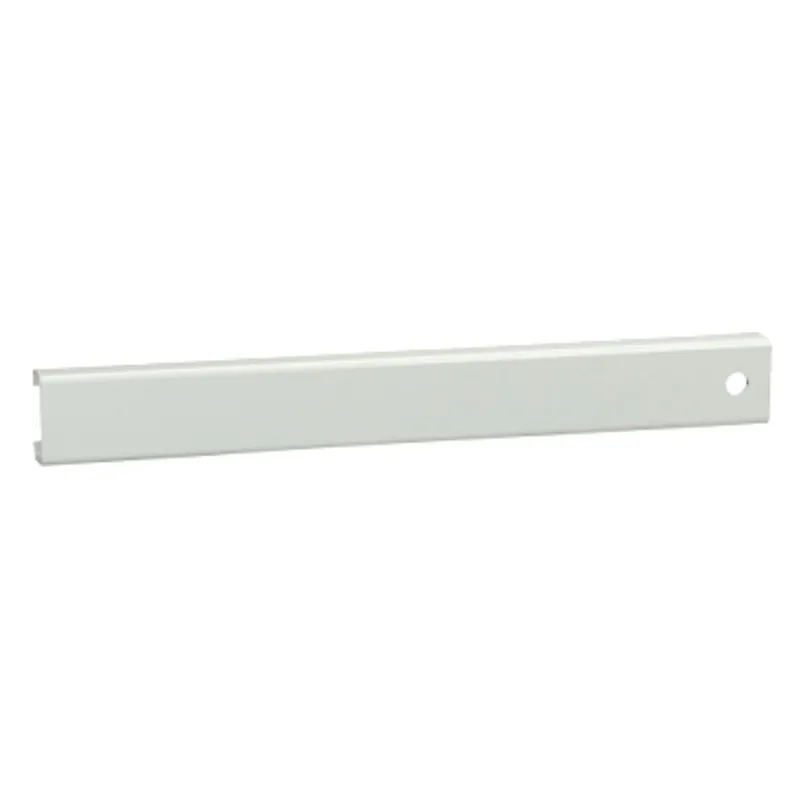

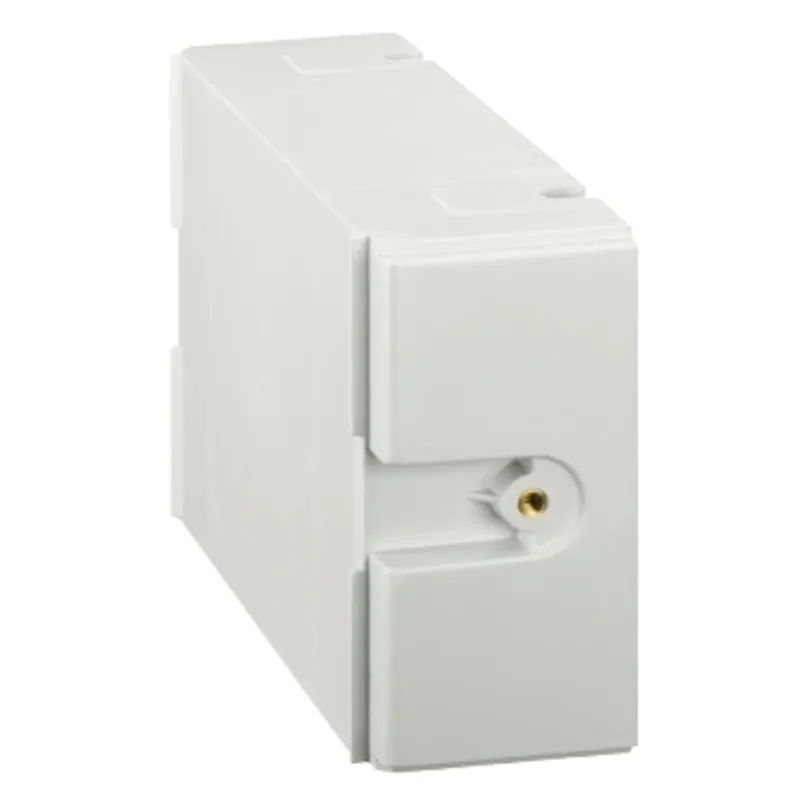

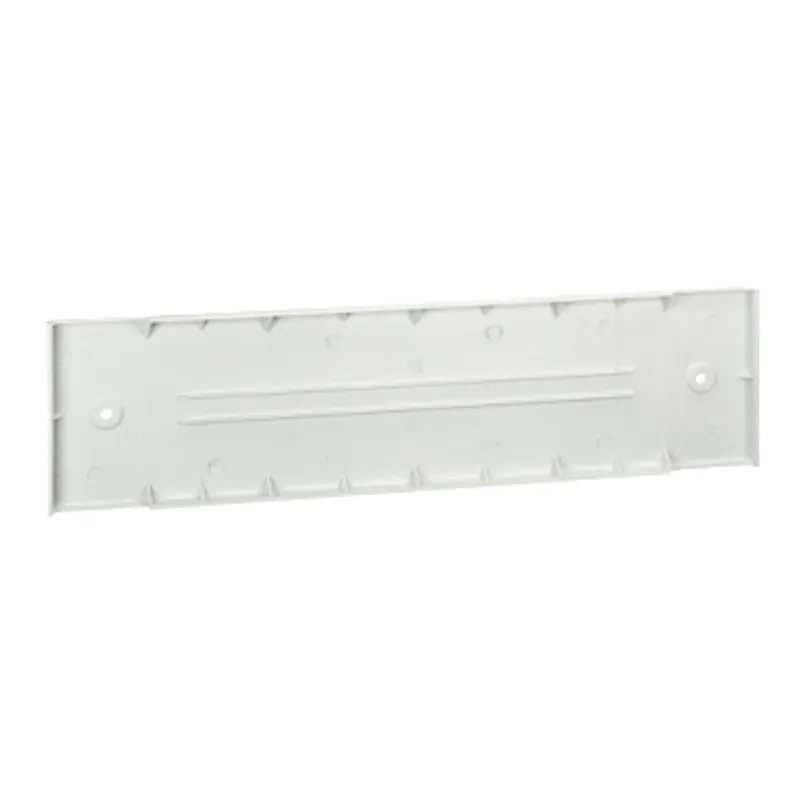

Plinth to be used with PanelSeT PLM enclosures. The plinth is to be used in multi-purpose applications. The width is 456mm. The height is 200mm. The depth is 302mm. The kit is made of fixing elements, 2 front panels and 2 side parts. The product is made of grey Material : Plastic. (RAL 7035). Ingress protection rating is IP44. Mechanical protection rating is IK10.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Plinth |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 2 front panel, 2 side part |
| Range compatibility | PanelSeT PLM |
| Fixing mode | By screws - on side parts location |
| Colour | Plinth: grey (RAL 7035) |
| Height | 200 mm |
| Width | 456 mm |
| Depth | 302 mm |
| IP degree of protection | IP44 |
| IK degree of protection | IK10 |
Packaging
| Package 1 | 1 PCE, 60.000 cm × 21.500 cm × 18.500 cm (L × W × H), 6.500 kg |
| Package 2 | 50 PAM, 120.000 cm × 100.000 cm × 122.000 cm (L × W × H), 338.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYZM253G: frequently asked questions
When can NSYZM253G be shipped?
NSYZM253G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYZM253G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYZM253G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYZM253G, subject to availability and destination.
