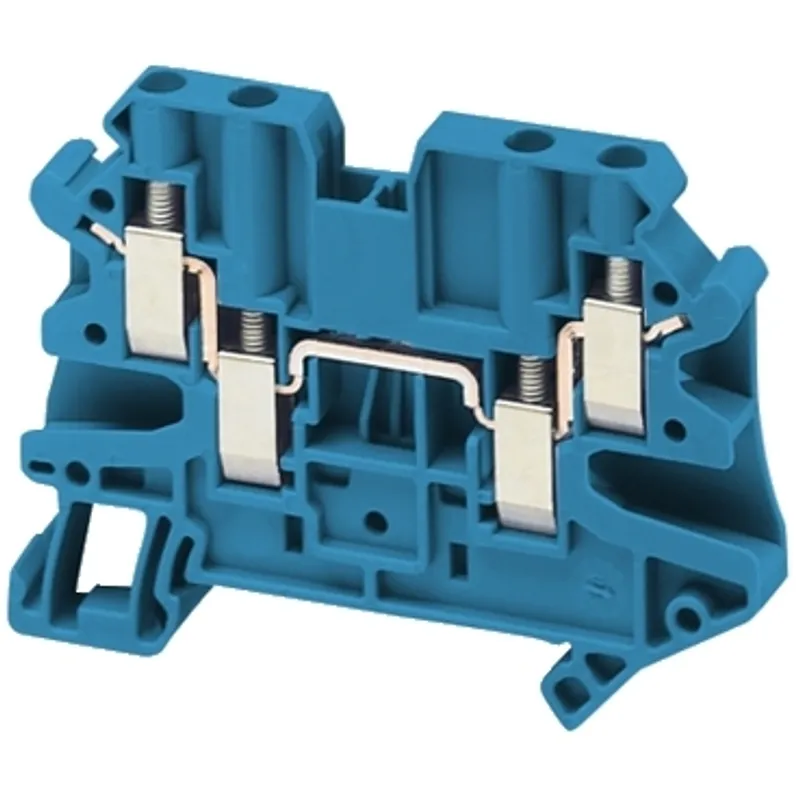

Schneider Electric NSYTRV44BL
Terminal block, Linergy TR, screw type, feed through, 4 points, 4mm², blue, set of 50
- MPN
- NSYTRV44BL
- EAN
- 3606480532016
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRV44BL?
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 4 mm² nominal cross section. The rated operational voltage is 150V conforming to CSA/UL and 500V conforming to EN/IEC 60947-7-1. The rated current is 32A conforming to EN/IEC 60947-7-1, 26A conforming to CSA/UL. It has blue surface treatment. Mounting by clip-on and sideways connection by double-level 2x2 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS ,Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, GL, DNV). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 4 mm² |
| Length | 65.4 mm |
| Colour | Blue |
| Quantity per set | Set of 50 |
| Width | 6.2 mm |
| Height | 47.5 mm |
| Connections - terminals | 2 x screw terminal: downstream (M3), 2 x screw terminal: upstream (M3) |
| number of connections | 4 |
| Connection position | Sideways |
| Number of measurement input | 2 |
| Cable cross section | 0.14…6 mm², solid cable with cable end, 0.2…4 mm², flexible cable with cable end, 0.14…6 mm², flexible cable without cable end, 0.14…6 mm², solid cable without cable end |
| Tightening torque | 0.6…0.8 N.m |
| Wire stripping length | 9 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| [Ue] rated operational voltage | 500 V conforming to EN/IEC 60947-7-1, 150 V UL |
| [In] rated current | 32 A conforming to EN/IEC 60947-7-1, 30 A UL |
| Material | Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 17 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys, Thalassa Thalassa TBP, Thalassa Thalassa TBS |
| Product compatibility | Spacial enclosures |
| Product certifications | UL, GL, CSA, DNV |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 6.500 cm × 4.800 cm × 0.800 cm (L × W × H), 17.000 g |
| Package 2 | 50 BB1, 32.000 cm × 7.800 cm × 5.500 cm (L × W × H), 883.000 g |
| Package 3 | 200 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 3.873 kg |
