Available on request

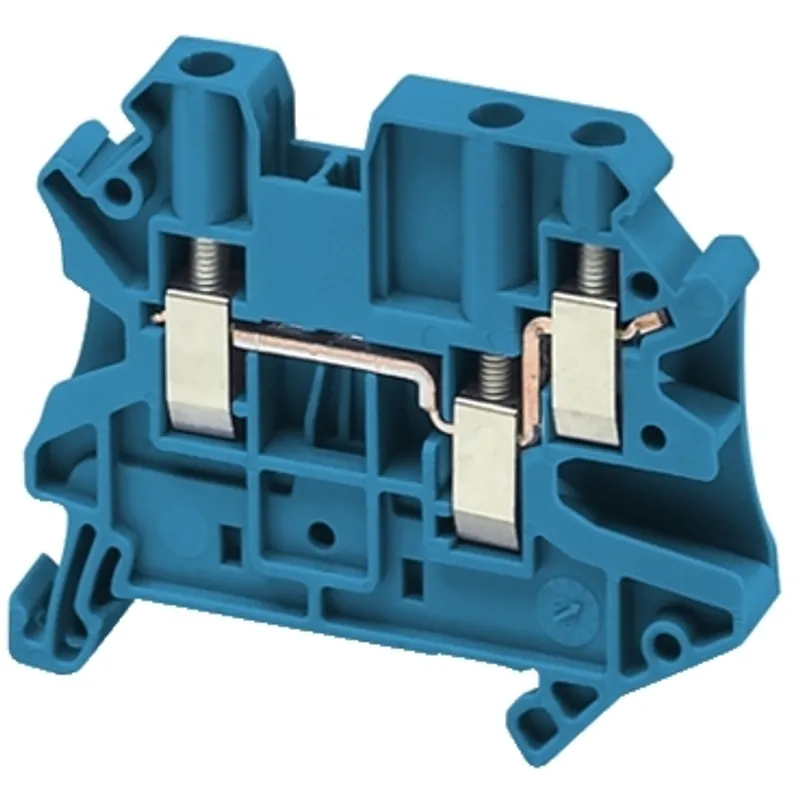

Terminal block, Linergy TR, screw type, feed through, 3 points, 4mm², blue, set of 50
MPN: NSYTRV43BL · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Linergy TR terminals blocks |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 14 kg |
Shipping & availability
When can NSYTRV43BL be shipped?
NSYTRV43BL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTRV43BL in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTRV43BL and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRV43BL, subject to availability and destination.
Schneider Electric Terminal block, Linergy TR, screw type, feed through, 3 points, 4mm², blue, set of 50, manufacturer part number NSYTRV43BL. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 4 mm² |
| Length | 57.8 mm |
| Colour | Blue |
| Quantity per set | Set of 50 |
| Width | 6.2 mm |
| Height | 47.5 mm |
| Connections - terminals | 1 x screw terminal: upstream (M3), 2 x screw terminal: downstream (M3) |
| number of connections | 3 |
| Connection position | Sideways |
| Number of measurement input | 2 |
| Cable cross section | 0.14…6 mm², solid cable with cable end, 0.2…4 mm², flexible cable with cable end, 0.14…6 mm², flexible cable without cable end, 0.14…6 mm², solid cable without cable end |
| Tightening torque | 0.6…0.8 N.m |
| Wire stripping length | 9 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| [Ue] rated operational voltage | 500 V conforming to EN/IEC 60947-7-1, 150 V UL |
| [In] rated current | 32 A conforming to EN/IEC 60947-7-1, 30 A UL |
| Material | Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 14 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | DNV, UL, GL, CSA |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.500 cm |
| Package 1 Width | 9.600 cm |
| Package 1 Length | 6.500 cm |
| Package 1 Weight | 14.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 50 |
| Package 2 Height | 5.500 cm |
| Package 2 Width | 9.600 cm |
| Package 2 Length | 26.000 cm |
| Package 2 Weight | 706.000 g |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 350 |
| Package 3 Height | 15.000 cm |
| Package 3 Width | 30.000 cm |
| Package 3 Length | 40.000 cm |
| Package 3 Weight | 5.346 kg |
| Warranty | 18 months |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More Schneider Electric parts
Available on requestTerminal block, Linergy TR, fused disconnect type, for 6.3x32mm fuse, with light indicator 12 to 30V, blackMPN: NSYTRV42SF6LD · Schneider Electric
Price on request
Request a quote
Available on requestTerminal block, Linergy TR, screw type, knife disconnect, 2 points, 4mm², with test point, orangeMPN: NSYTRV42STAR · Schneider Electric
Price on request
Request a quote
Available on requestTerminal block, Linergy TR, screw type, feed through, 2 points, 4mm², white, set of 50MPN: NSYTRV42WH · Schneider Electric
Price on request
Request a quote
Available on requestTerminal block, Linergy TR, screw type, feed through, 3 points, 4mm², grey, set of 50MPN: NSYTRV43 · Schneider Electric
Price on request
Request a quote

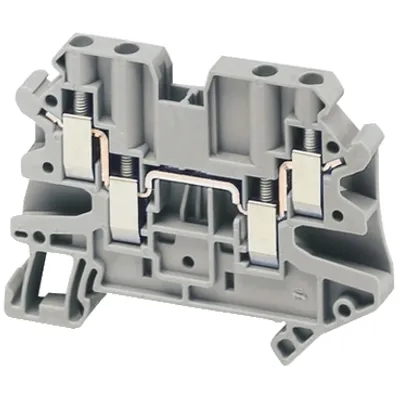

Available on requestTerminal block, Linergy TR, grey, 4mm², passthrough, 4 points, set of 10MPN: NSYTRV44 · Schneider Electric
Price on request
Request a quote

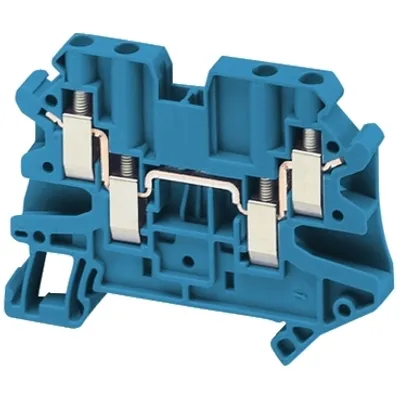

Available on requestTerminal block, Linergy TR, screw type, feed through, 4 points, 4mm², blue, set of 50MPN: NSYTRV44BL · Schneider Electric
Price on request
Request a quote

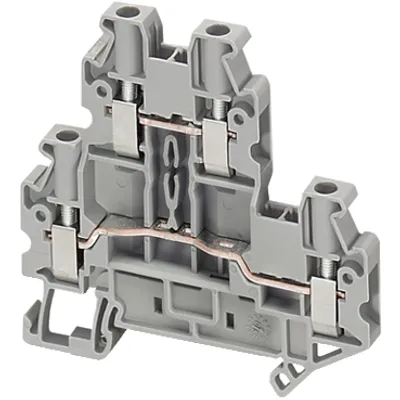

Available on requestTerminal block, Linergy TR, grey, 4mm², double level, 4 points, set of 10MPN: NSYTRV44D · Schneider Electric
