NSYTRR23Terminal block, Linergy TR, spring type, feed through, 3 points, 2.5mm², grey, set of 50

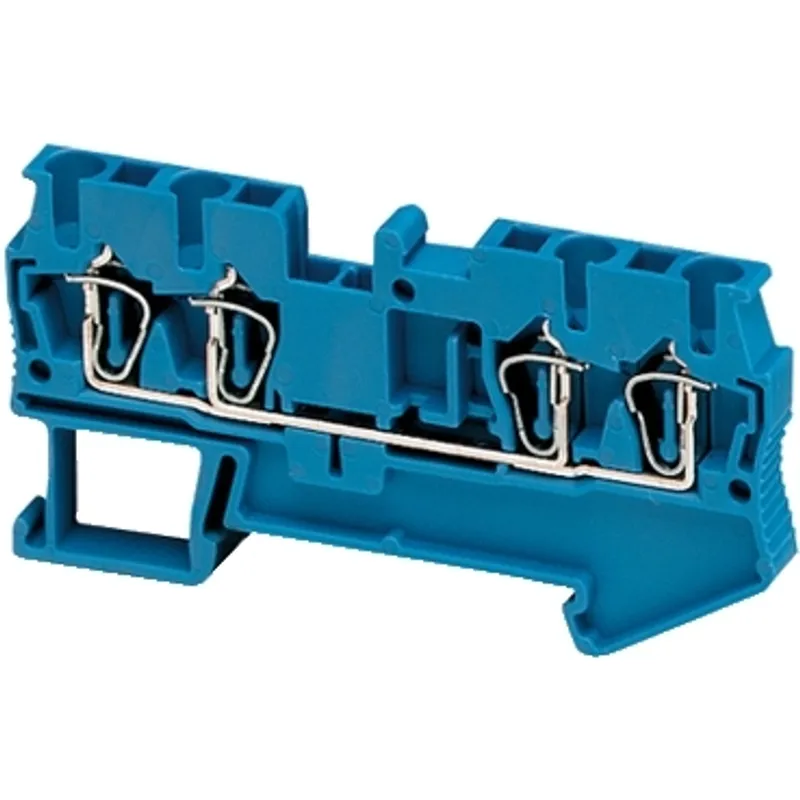

Schneider Electric NSYTRR24BL
Terminal block, Linergy TR, spring type, feed through, 4 points, 2.5mm², blue, set of 50
- MPN
- NSYTRR24BL
- EAN
- 3606480532597
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYTRR24BL (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRR24BL?
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and UL. It has blue surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, VDE, GL, DNV). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRR |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 2.5 mm² |
| Length | 72 mm |
| Colour | Blue |
| Quantity per set | Set of 50 |
| Width | 5.2 mm |
| Height | 36.5 mm |
| Connections - terminals | 2 x spring terminal: downstream, 2 x spring terminal: upstream |
| number of connections | 4 |
| Connection position | Top |
| Number of measurement input | 2 |
| Cable cross section | 0.08…2.5 mm², flexible without cable end, 0.08…4 mm², solid with cable end, 0.2…2.5 mm², flexible with cable end, 0.08…4 mm², solid without cable end |
| Wire stripping length | 10 mm |
| Tool type | Connection: flat screwdriver, Disconnection: flat screwdriver |
| [Ue] rated operational voltage | 600 V CSA, 800 V conforming to EN/IEC 60947-7-1, 600 V UL |
| [In] rated current | 20 A CSA, 20 A UL, 24 A conforming to EN/IEC 60947-7-1 |
| Material | Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 8.5 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | VDE, CSA, DNV, UL, GL |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 4.500 cm × 9.000 cm × 4.700 cm (L × W × H), 9.000 g |
| Package 2 | 50 BB1, 27.000 cm × 9.000 cm × 4.700 cm (L × W × H), 490.000 g |
| Package 3 | 800 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 8.364 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTRR24BL: frequently asked questions
Can I still buy the NSYTRR24BL now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYTRR24BL, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time. If you are planning an upgrade instead, Schneider Electric names the NSYTRP24BL as its successor — we can quote both.
When can NSYTRR24BL be shipped?
NSYTRR24BL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTRR24BL in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTRR24BL and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRR24BL, subject to availability and destination.
