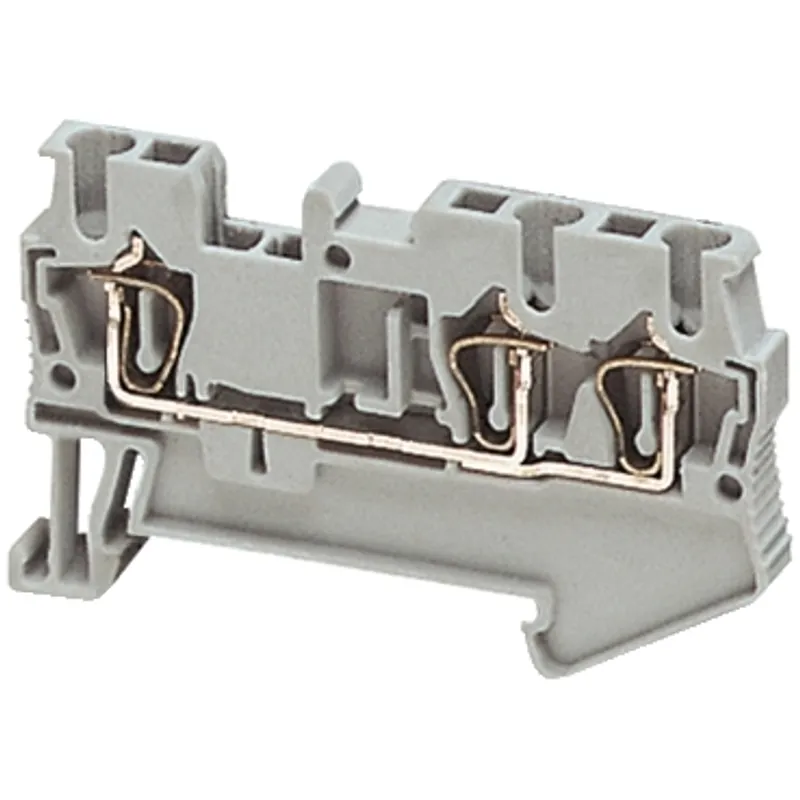

NSYTRR22BLTerminal block, Linergy TR, spring type, feed through, 2 points, 2.5mm², blue
Schneider Electric NSYTRR23
Terminal block, Linergy TR, spring type, feed through, 3 points, 2.5mm², grey, set of 50
- MPN
- NSYTRR23
- EAN
- 3606480532542
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRR23?
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus and 800V conforming to EN/IEC 60947-7-1. The rated current is 24A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA and cURus. It has grey surface treatment. Mounting by clip-on and top connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRR |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 2.5 mm² |
| Length | 60.5 mm |
| Colour | Grey |
| Quantity per set | Set of 50 |
| Width | 5.2 mm |
| Height | 36.5 mm |
| Connections - terminals | 1 x spring terminal: upstream, 2 x spring terminal: downstream |
| number of connections | 3 |
| Connection position | Top |
| Number of measurement input | 2 |
| Cable cross section | 0.08…2.5 mm², flexible without cable end, 0.08…4 mm², solid with cable end, 0.2…2.5 mm², flexible with cable end, 0.08…4 mm², solid without cable end |
| Wire stripping length | 10 mm |
| Tool type | Connection: flat screwdriver, Disconnection: flat screwdriver |
| [Ue] rated operational voltage | 600 V CSA, 800 V conforming to EN/IEC 60947-7-1, 600 V UL |
| [In] rated current | 20 A CSA, 20 A UL, 24 A conforming to EN/IEC 60947-7-1 |
| Material | Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 7 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | CSA, GL, VDE, DNV |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 1.290 cm × 27.000 cm × 5.000 cm (L × W × H), 7.000 g |
| Package 2 | 50 BB1, 9.000 cm × 27.000 cm × 5.000 cm (L × W × H), 404.000 g |
| Package 3 | 8400 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 80.872 kg |
