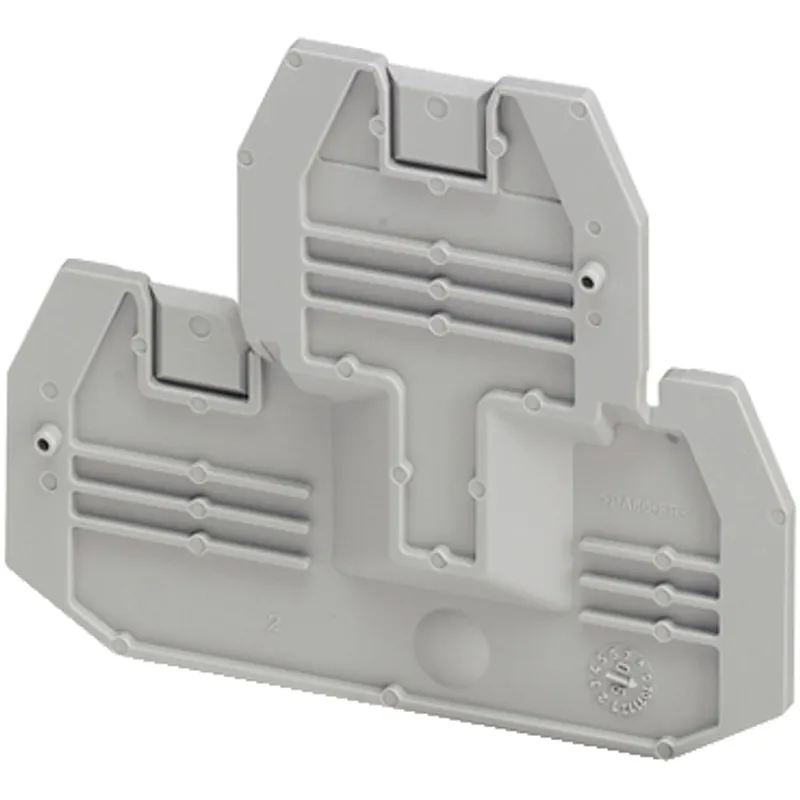

Schneider Electric NSYTRACE24
Cover plate, Linergy TR, 2 level, 2.2mm width, 4 points, for screw terminals NSYTRV24D, grey, Set of 50
- MPN
- NSYTRACE24
- EAN
- 3606480533457
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRACE24?
Linergy NSYTR cover plate for terminal block. It is compatible with TRV screw terminal block. It has grey surface treatment. For screw double-level terminal block 1x1, 2.5 to 4mm². Sold in lots of 50 units. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Cover plate |
| Device short name | TRA |
| Accessory / separate part category | Insulation accessory |
| Product compatibility | TRV screw terminal terminal block, length = 69.9 mm |
| thickness | 2.2 mm |
| Cable cross section | 2.5 mm², 4 mm² |
| number of connections | 2 |
| Number of measurement input | 4, 2 |
| Quantity per set | Set of 50 |
| Net weight | 2.2 g |
| Colour | Grey |
Packaging
| Package 1 | 1 PCE, 7.000 cm × 5.800 cm × 0.400 cm (L × W × H), 4.000 g |
| Package 2 | 50 BB1, 27.000 cm × 12.500 cm × 5.000 cm (L × W × H), 232.000 g |
| Package 3 | 1600 S04, 60.000 cm × 40.000 cm × 30.000 cm (L × W × H), 8.142 kg |
