Schneider Electric
NSYTRABPV6Marking card, Linergy TR, with 6 strips, 6mm, unprinted, 60 characters, white, Set of 10
Schneider Electric NSYTRAC22BL

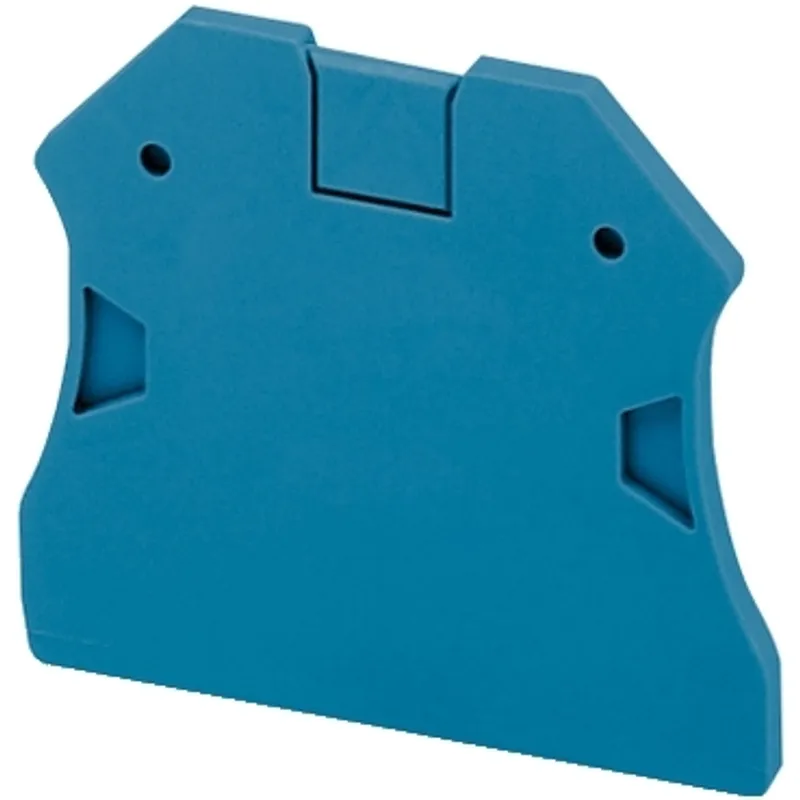

Cover plate, Linergy TR, 2.2mm width, 2 points, for screw terminals NSY TRV22,TRV42,TRV, blue, set of 50
- MPN
- NSYTRAC22BL
- EAN
- 3606480533556
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRAC22BL?
Linergy NSYTR cover plate for terminal block. It is compatible with TRV screw terminal block. It has blue surface treatment. For screw single-level terminal block 1x1, 2.5 to 10mm². Sold in lots of 50 units. It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Cover plate |
| Device short name | TRA |
| Accessory / separate part category | Insulation accessory |
| Product compatibility | TRV screw terminal - passthrough terminal block, length = 47.7 mm, TRV screw terminal - protective earth terminal block, length = 47.7 mm, TRV screw terminal - blade disconnect terminal block, length = 55 mm |
| thickness | 2.2 mm |
| Cable cross section | 10 mm², 4 mm², 2.5 mm², 6 mm² |
| number of connections | 2 |
| Number of measurement input | 1, 2 |
| Quantity per set | Set of 50 |
| Net weight | 2.4 g |
| Colour | Blue |
Packaging
| Package 1 | 1 PCE, 4.800 cm × 4.100 cm × 0.500 cm (L × W × H), 2.000 g |
| Package 2 | 50 BB1, 18.000 cm × 15.000 cm × 4.000 cm (L × W × H), 130.000 g |
| Package 3 | 800 S02, 40.000 cm × 30.000 cm × 15.000 cm (L × W × H), 2.395 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTRAC22BL: frequently asked questions
When can NSYTRAC22BL be shipped?
NSYTRAC22BL is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTRAC22BL in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTRAC22BL and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTRAC22BL, subject to availability and destination.
