Schneider Electric NSYTLCFL

Standard for PanelSeT S3D encl. RAL7035, L245xW130

MPN: NSYTLCFL
EAN: 3606480168451
Category: PanelSet SF

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYTLCFL (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYTLCFL?

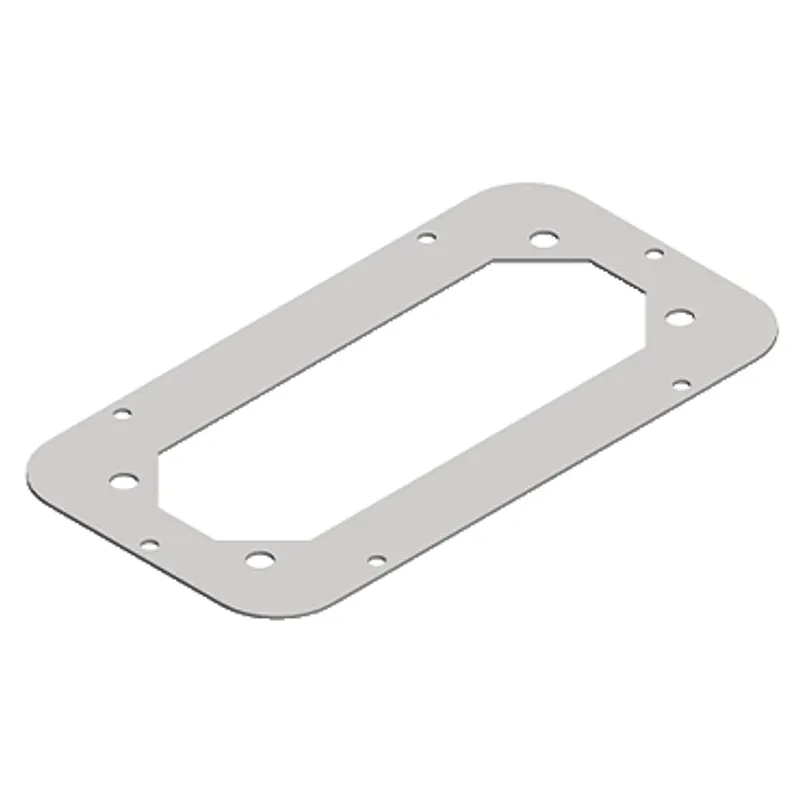

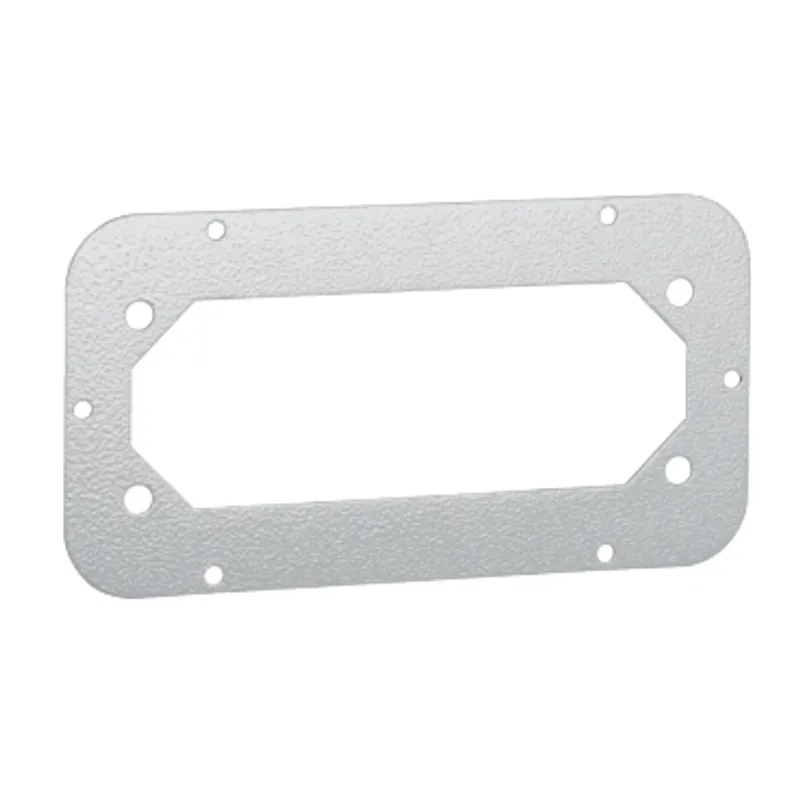

Standard cable gland plate for Spacial S3D/SF. L is 245 x W is 130 mm. Cable management accessory. Mounting on bottom of enclosure. Cable gland type is with FL cut-out. Number of cut-out is 1. For FL21 membranes part destination. Steel made, polyethylene (PE) foam for seal. Grey RAL 7035. Fixing elements, 1 plate, 1 separate gasket incl.

Specifications

Range	PanelSeT
Product or component type	Cable gland plate
Accessory / separate part category	Cable management accessory
Application	Multi-purpose
Nominal width of the housing	300 mm
Nominal depth of the housing	200 mm
Range compatibility	PanelSeT SF, PanelSeT S3D
Mounting location	Enclosure bottom
Cable gland type	With FL cut-out
Device composition	Fixing elements, 1 plate, 1 separate gasket
Quantity per set	Set of 1
Material	Plate: steel, Seal: polyethylene (PE) foam
Colour	Plate: grey (RAL 7035)
Surface finish	Epoxy-polyester powder
Height	245 mm
Width	245 mm, Real: 400 mm
Depth	130 mm, Real : 200 mm
Net weight	550 kg
thickness	1.5 mm
Number of cut-out	1 cut-out
Accessory / separate part destination	For FL21 membranes
Cut-out dimensions	194 x 62.5 mm

Packaging

Package 1

1 PCE, 0.500 cm × 15.000 cm × 25.500 cm (L × W × H), 235.000 g
