Schneider Electric NSYTLC

Standard for PanelSeT S3D encl. RAL7035, L245xW130.

MPN: NSYTLC
EAN: 3606480168468
Category: PanelSet SF

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYTLC?

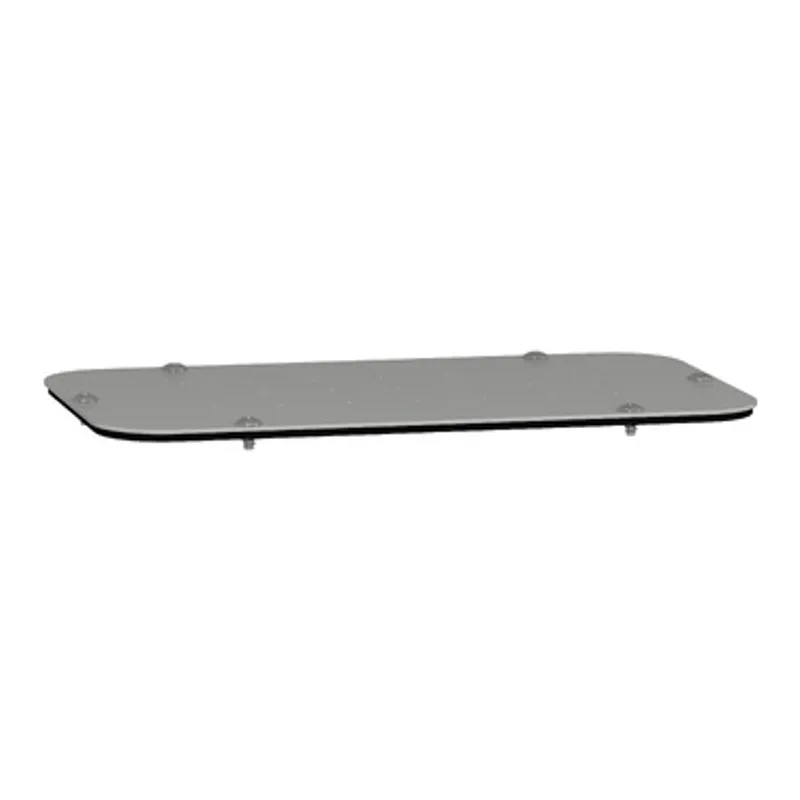

This is a multi-purpose standard cable gland plate for PanelSeT S3D electrical enclosures. The product is made of steel plate and polyethylene (PE) foam seal. The external width and depth are 245mm and 130mm respectively. The thickness of the product measures 1.5mm. The cable gland plate is designed to be installed at the bottom of the enclosure. The set contains one plate, one separate gasket and fixing elements. The cable gland features 21 markings, each measuring 25mm. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .

Specifications

Range	PanelSeT
Product or component type	Cable gland plate
Accessory / separate part category	Cable management accessory
Application	Multi-purpose
Range compatibility	PanelSeT S3D
Mounting location	Enclosure bottom
Cable gland type	Standard
Device composition	Fixing elements, 1 plate, 1 separate gasket
Quantity per set	Set of 1
Material	Plate: steel, Seal: polyethylene (PE) foam
Colour	Plate: grey (RAL 7035)
Surface finish	Epoxy-polyester powder
Number of cut-out	21 markings 25 mm
Height	245 mm, 5 mm
Width	245 mm, Real: 270 mm
Depth	130 mm
Net weight	0.452 kg
thickness	1.5…2.0 mm

Packaging

Package 1

1 PCE, 0.500 cm × 14.000 cm × 27.000 cm (L × W × H), 439.000 g

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYTLCPDF

NSYTLC: frequently asked questions

When can NSYTLC be shipped?

NSYTLC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYTLC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYTLC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTLC, subject to availability and destination.
