What is the Schneider Electric NSYTJ8030?

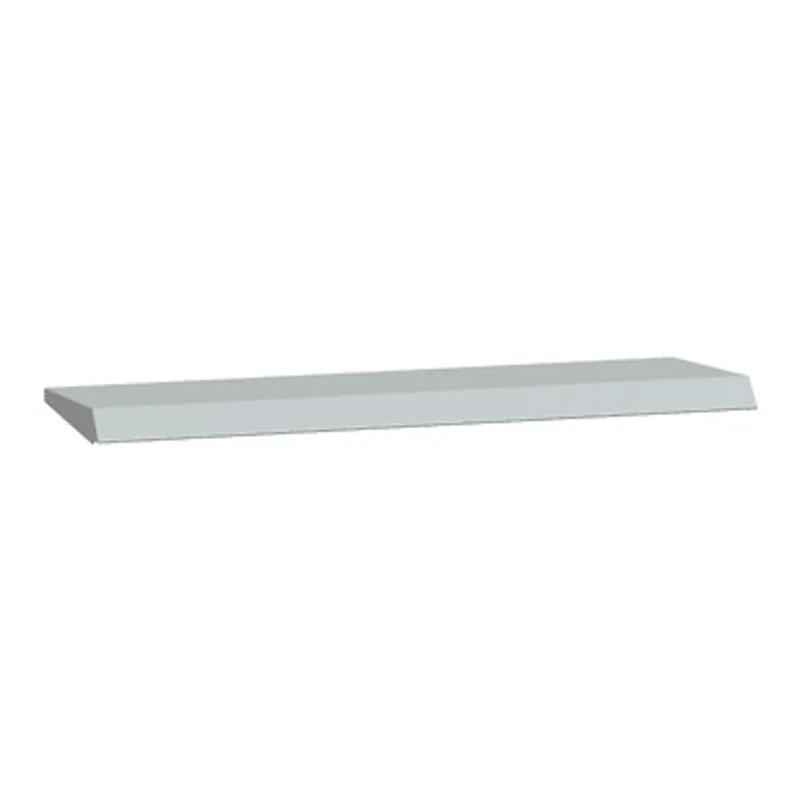

Multi-purpose canopy for PanelSeT CRN and PanelSeT S3D enclosures The canopy is to be installed on all enclosure models with 800mm width and 300mm depth The nominal width is 800mm and real width is 809mm The nominal depth is 300mm and real depth is 314,5mm The height is 42mm Fixed by 4 screws - screw type M6 on top of enclosure The canopy is made from galvanised steel (color RAL 7035) Provides high resistance to impacts, temperature and bad weather The kit is made up of canopy, fixing elements and instruction sheet Net weight is 4,3kg

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Canopy
Application	Multi-purpose
Range compatibility	PanelSeT CRN, PanelSeT S3D
For enclosure nominal dimensions	-
Mounting location	On top of enclosure
Device composition	Canopy, fixing elements, instruction sheet
Material	Galvanised steel
Colour	Grey (RAL 7035)
Surface finish	Epoxy-polyester powder
Fixing mode	By 4 screws - screw type M6
Height	42 mm
Width	Nominal: 800 mm, Real: 809 mm
Depth	Nominal : 300 mm, Real : 314.5 mm
Net weight	4.3 kg
Mounting diameter	8 mm

Packaging

Package 1	1 PCE, 82.000 cm × 32.000 cm × 5.000 cm (L × W × H), 3.984 kg
Package 2	65 PAM, 120.000 cm × 100.000 cm × 105.000 cm (L × W × H), 272.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYTJ8030PDF
