Schneider Electric NSYTJ8025

PanelSeT WM enclosure canopy W800xD250 Colour RAL7035.. Fixings supplied.

MPN: NSYTJ8025
EAN: 3606480198694
Category: PanelSeT CRN

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYTJ8025?

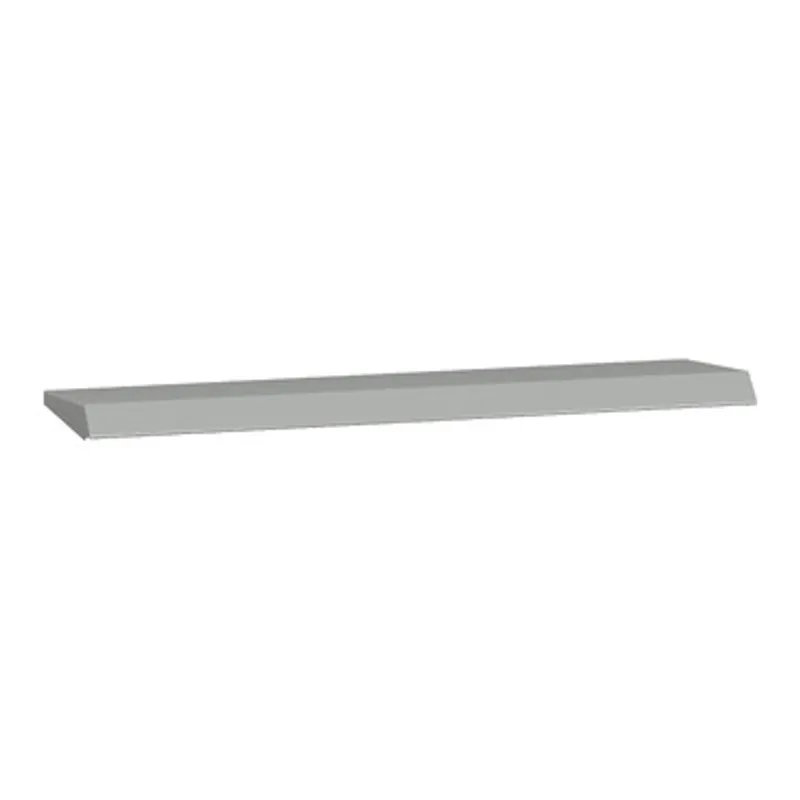

Multi-purpose canopy for PanelSeT CRN and PanelSeT S3D enclosures The canopy is to be installed on all enclosure models with 800mm width and 250mm depth The nominal width is 800mm and real width is 809mm The nominal depth is 250mm The height is 42mm Fixed by 4 screws - screw type M6 on top of enclosure The canopy is made from galvanised steel (color RAL 7035) Provides high resistance to impacts, temperature and bad weather The kit is made up of canopy, fixing elements and instruction sheet Net weight is 3,7kg

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Canopy
Application	Multi-purpose
Range compatibility	PanelSeT CRN, PanelSeT S3D
For enclosure nominal dimensions	-
Mounting location	On top of enclosure
Device composition	Canopy, fixing elements, instruction sheet
Material	Galvanised steel
Colour	Grey (RAL 7035)
Surface finish	Epoxy-polyester powder
Fixing mode	By 4 screws - screw type M6
Height	42 mm
Width	Nominal: 800 mm, Real: 809 mm
Depth	Nominal : 250 mm
Net weight	3.7 kg
Mounting diameter	8 mm

Packaging

Package 1	1 PCE, 81.500 cm × 28.000 cm × 5.000 cm (L × W × H), 3.550 kg
Package 2	50 PAM, 120.000 cm × 100.000 cm × 105.000 cm (L × W × H), 191.000 kg
