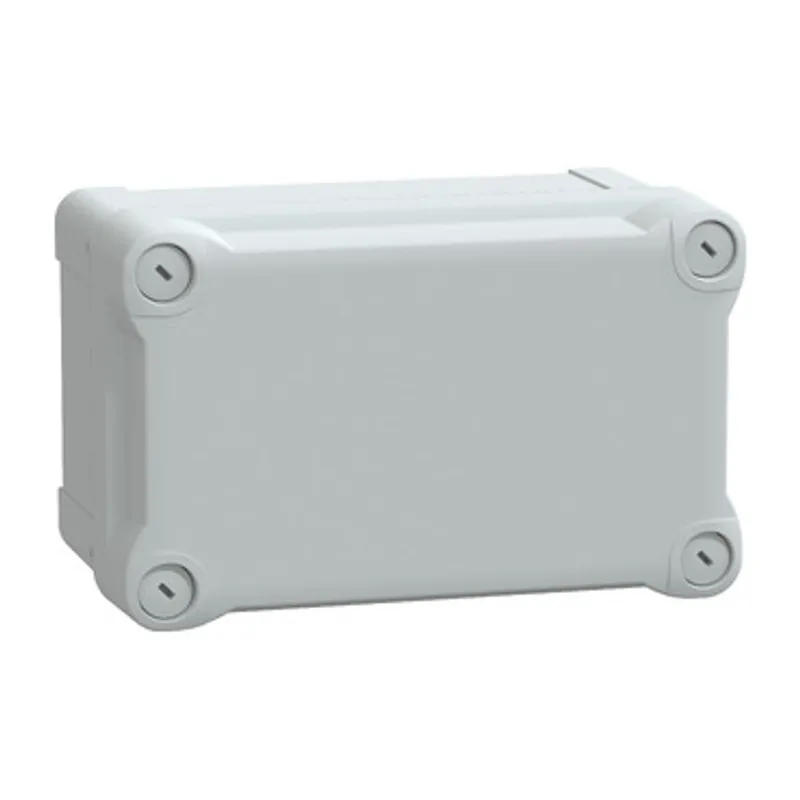

Schneider Electric NSYTBP191210H – PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40

Name: Schneider Electric NSYTBP191210H – PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40
Brand: Schneider Electric
SKU: NSYTBP191210H

MPN: NSYTBP191210H · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PanelSeT TBP
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.43 kg

Shipping & availability

When can NSYTBP191210H be shipped?

NSYTBP191210H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYTBP191210H in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYTBP191210H and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBP191210H, subject to availability and destination.

Schneider Electric PC box IP66 IK08 RAL7035 Int.H175W105D100 Ext.H192W121D105 opaque PC cover H40, manufacturer part number NSYTBP191210H. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range	PanelSeT
Product name	PanelSeT TBP
Device application	Multi-purpose
Category	Industrial box

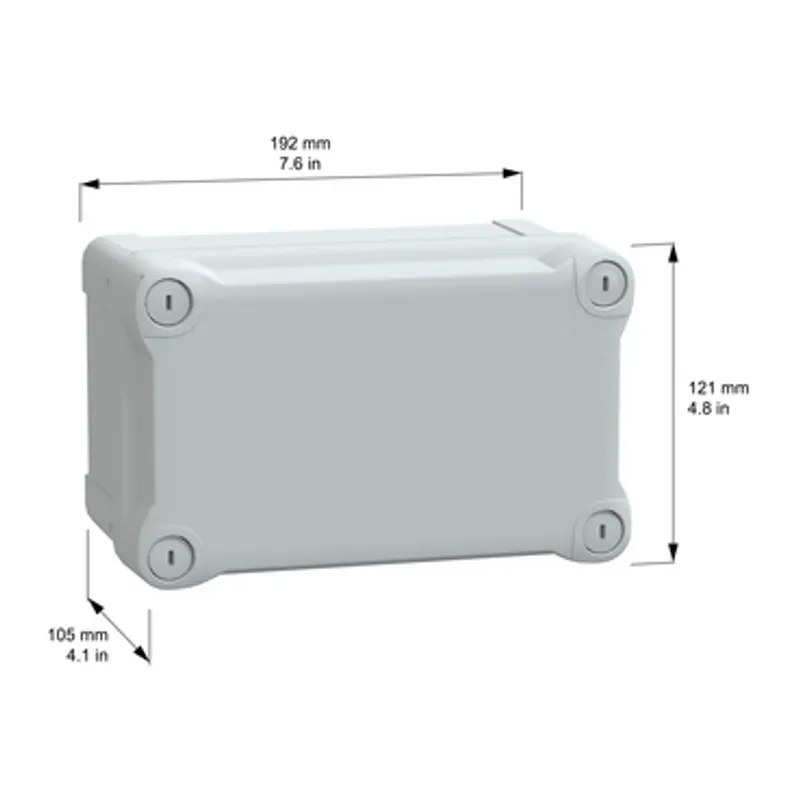

Height	192 mm
Width	121 mm
Depth	105 mm
Internal height	175 mm
Internal width	105 mm
Internal depth	100 mm
Enclosure mounting	Wall mounted

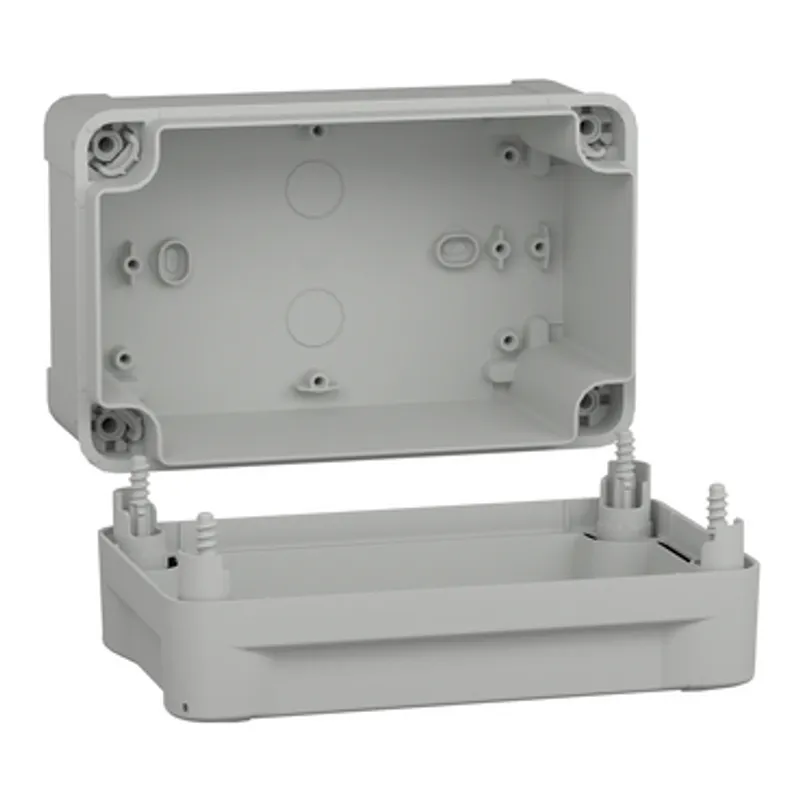

Device composition	1 body, 1 cover, 4 cover screw
Quantity per set	Set of 2
Body type	One piece moulded
Type of front cover	High plain cover
Cover fixing	Plastic screws
Lock type	Captive screw flat outside sealed area
Removable parts	Cover by captive screws
Material	Polycarbonate
Colour	Grey (RAL 7035)
Standards	IEC 62208, UL 508 A
Product certifications	TÜV, UL
Electrical insulation class	Class II
Mounting location	Outdoor (with canopy or shelter and anticondensation valve)
Net weight	0.43 kg
IP degree of protection	IP66 conforming to NEMA 4.4X
IK degree of protection	IK08 conforming to IEC 62262
Fire resistance	960 °C
Ambient air temperature for storage	-15…60 °C
Operating temperature	-25…80 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	10.500 cm
Package 1 Width	12.100 cm
Package 1 Length	19.200 cm
Package 1 Weight	509.000 g
Unit Type of Package 2	CAR
Number of Units in Package 2	22
Package 2 Height	43.000 cm
Package 2 Width	40.000 cm
Package 2 Length	62.000 cm
Package 2 Weight	11.200 kg
Unit Type of Package 3	P12
Number of Units in Package 3	264
Package 3 Height	134.500 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	187.000 kg
Warranty	18 months
