NSYSUCR65100Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W1000mm, 2 rows, set of 2
Schneider Electric NSYSUCR65180
Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H65 W1800mm, 2 rows, set of 2
- MPN
- NSYSUCR65180
- EAN
- 3606485133478
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

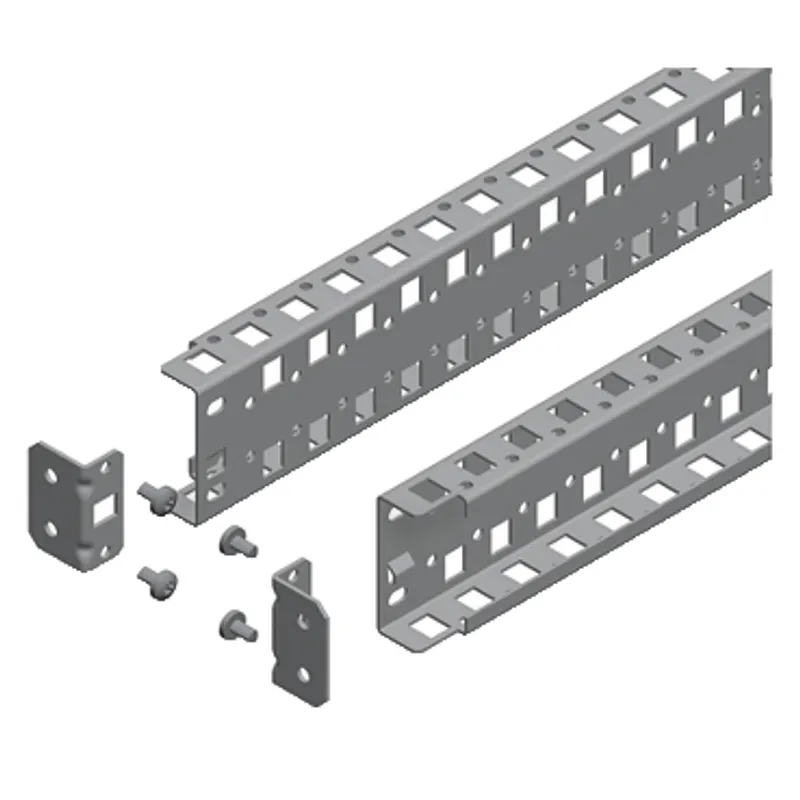

What is the Schneider Electric NSYSUCR65180?
This set of two universal cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 65 mm and a nominal length of 65 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Universal cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - H: 1800 mm |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Mounting location | Between cross rails, On structure of enclosure |
| Mounting support | Adaptation profile, on SM enclosures |
| Installation direction | Vertical |
| Device composition | Fixing elements, 2 cross rails, 4 supports |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 2 |
| Height | Nominal: 1800 mm, Useful: 1707 mm |
| Width | 65 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 171.000 cm × 7.000 cm × 6.000 cm (L × W × H), 4.336 kg |
| Package 2 | 50 P2M, 200.000 cm × 120.000 cm × 35.000 cm (L × W × H), 243.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSUCR65180: frequently asked questions
When can NSYSUCR65180 be shipped?
NSYSUCR65180 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSUCR65180 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSUCR65180 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSUCR65180, subject to availability and destination.
