Schneider Electric NSYSUCR40110
Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H40 W1100mm, 1 row, set of 2
- MPN
- NSYSUCR40110
- EAN
- 3606485133270
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYSUCR40110 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSUCR40110?

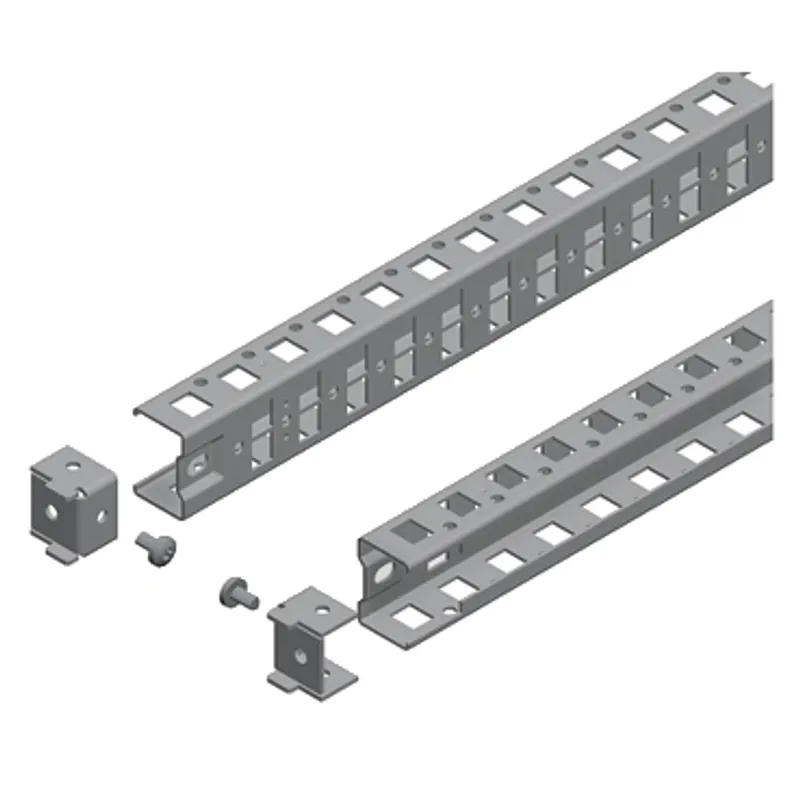

Universal cross rail made from zinc coated 1,5mm thick steel for use with Spacial SF, Spacial SM, Spacial SFX and Spacial SMX enclosures with height 1100mm Can be fixed between cross rails On SM enclosures fixing by means of adaptation profiles The nominal height is 1100mm and useful height is 1007mm The width is 40mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Universal cross rail |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - H: 1100 mm |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX, PanelSeT PanelSeT SMX |
| Mounting location | Between cross rails |
| Mounting support | Adaptation profile, on SM enclosures |
| Device composition | Fixing elements, 2 cross rails, 4 supports |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 1 |
| Maximum load | 30 kg |
| Height | Nominal: 1100 mm, Useful: 1007 mm |
| Width | 40 mm |
| Depth | 27 mm |
| thickness | 1.5 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 102.000 cm × 6.000 cm × 5.000 cm (L × W × H), 1.998 kg |
| Package 2 | 50 PAM, 120.000 cm × 100.000 cm × 30.000 cm (L × W × H), 113.000 kg |
