Schneider Electric NSYSTMP60100

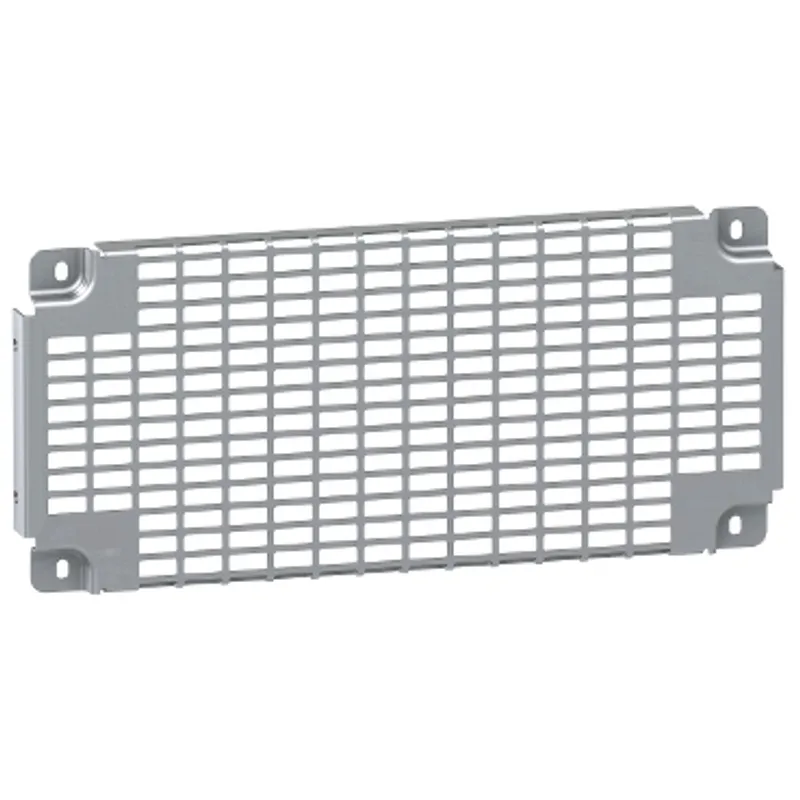

Perforated mounting plate, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure W1000mm, galvanized steel, H600mm
- MPN
- NSYSTMP60100
- EAN
- 3606485133171
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSTMP60100?
Perforated Telequick mounting plate for PanelSeT SFN, and PanelSeT SM, SMX, SFX and SD electrical enclosures with nominal width of 1000 mm. The plate has nominal height and width of 575 and 850 mm respectively. This multi purpose mounting accessory allows the installation of switchgear without drilling or screwing. To ensure vertical continuity, multiple Telequick plates can be installed consecutively in a stacked arrangement. The maximum admisible load is 150 kg/m2. They are made of steel made with zinc coated surface finish. The supply includes one perforated mounting plate and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT SFX PanelSeT SFX, PanelSeT SMX PanelSeT SMX |
| Device composition | 1 mounting plate, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element - on structure location |
| Height | Fixing centers: 575 mm, 600 mm |
| Width | Nominal: 1000 mm, 908 mm |
| Cut-out dimensions | 11 x 26 mm |
Packaging
| Package 1 | 1 PCE, 91.000 cm × 60.000 cm × 3.000 cm (L × W × H), 4.420 kg |
| Package 2 | 48 PAM, 120.000 cm × 100.000 cm × 92.000 cm (L × W × H), 225.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSTMP60100: frequently asked questions
When can NSYSTMP60100 be shipped?
NSYSTMP60100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSTMP60100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSTMP60100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSTMP60100, subject to availability and destination.
