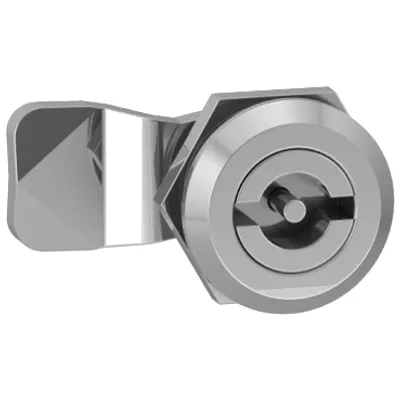

NSYSTDCX2HDouble bar insert Ø 3mm stainless steel 316, for S3X WM enclosures single door
Schneider Electric NSYSTMP22120

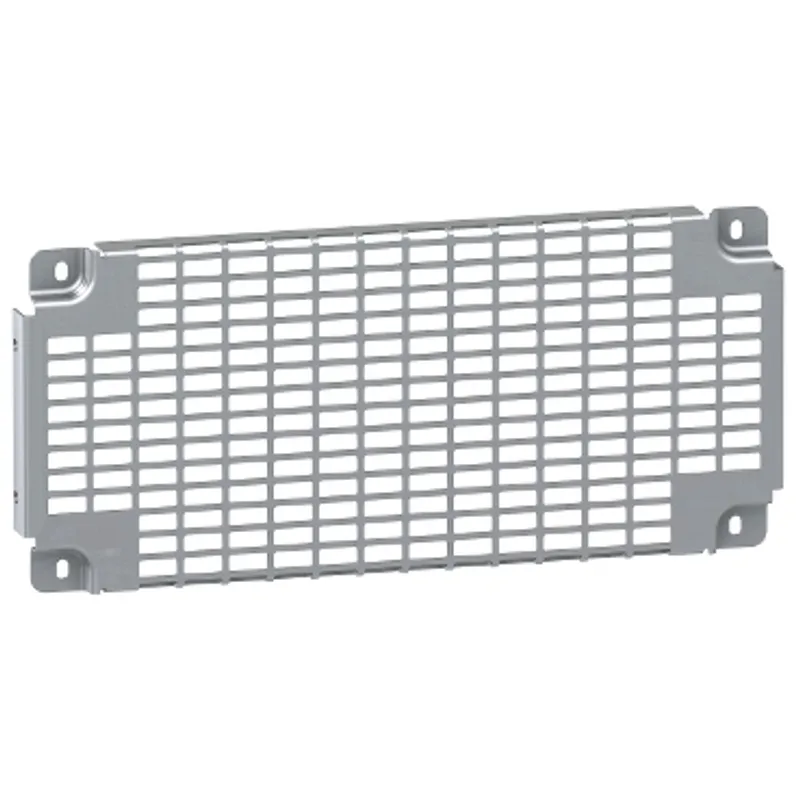

Perforated mounting plate, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure W1200mm, galvanized steel, H225mm
- MPN
- NSYSTMP22120
- EAN
- 3606485133102
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSTMP22120?
Perforated Telequick mounting plate for PanelSeT SFN, and PanelSeT SM, SMX, SFX and SD electrical enclosures with nominal width of 1200 mm. The plate has nominal height and width of 200 and 1050 mm respectively. This multi purpose mounting accessory allows the installation of switchgear without drilling or screwing. To ensure vertical continuity, multiple Telequick plates can be installed consecutively in a stacked arrangement. The maximum admisible load is 150 kg/m2. They are made of steel made with zinc coated surface finish. The supply includes one perforated mounting plate and fixing elements.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting plate description | Telequick perforated |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT SF |
| Device composition | 1 mounting plate, fixing elements |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element - on structure location |
| Height | Fixing centers: 200 mm, 225 mm |
| Width | Nominal: 1200 mm, 1108 mm |
| Cut-out dimensions | 11 x 26 mm |
Packaging
| Package 1 | 1 PCE, 111.000 cm × 22.800 cm × 2.800 cm (L × W × H), 2.310 kg |
| Package 2 | 28 PAM, 120.000 cm × 100.000 cm × 45.000 cm (L × W × H), 78.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSTMP22120: frequently asked questions
When can NSYSTMP22120 be shipped?
NSYSTMP22120 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSTMP22120 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSTMP22120 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSTMP22120, subject to availability and destination.
More Schneider Electric parts
Schneider Electric

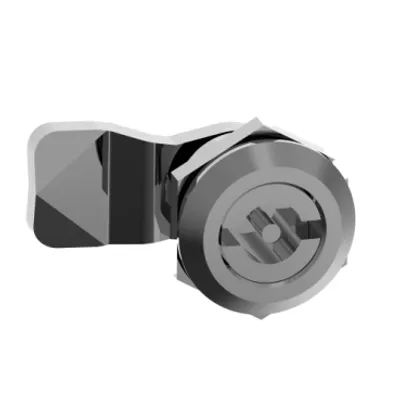

NSYSTDCXHReplace. Round lock, DB 3mm, for PanelSeT S3X enclosure, 100% stainless steel
Schneider Electric

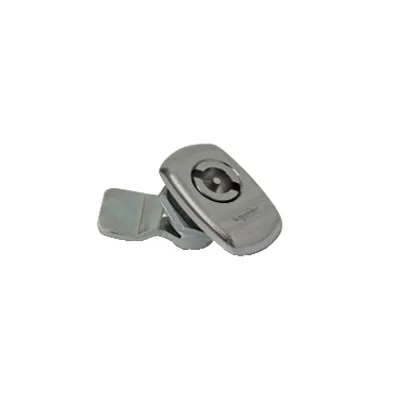

NSYSTDNCSXReplace. Stand. lock, DB 3mm, for PanelSeT S3X enclosure, chrome-plated zamak
Schneider Electric
NSYSTMP22100Perforated mounting plate, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure W1000mm, galvanized steel, H225mm
Schneider Electric
NSYSTMP2260Perforated mounting plate, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure W600mm, galvanized steel, H225mm
Schneider Electric
NSYSTMP2280Perforated mounting plate, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure W800mm, galvanized steel, H225mm
Schneider Electric

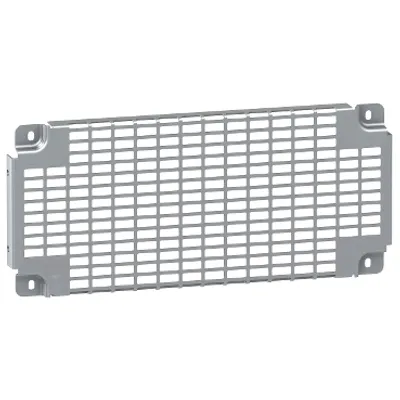

NSYSTMP45100Perforated mounting plate, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure W1000mm, galvanized steel, H450mm
