Schneider Electric NSYSPS8200

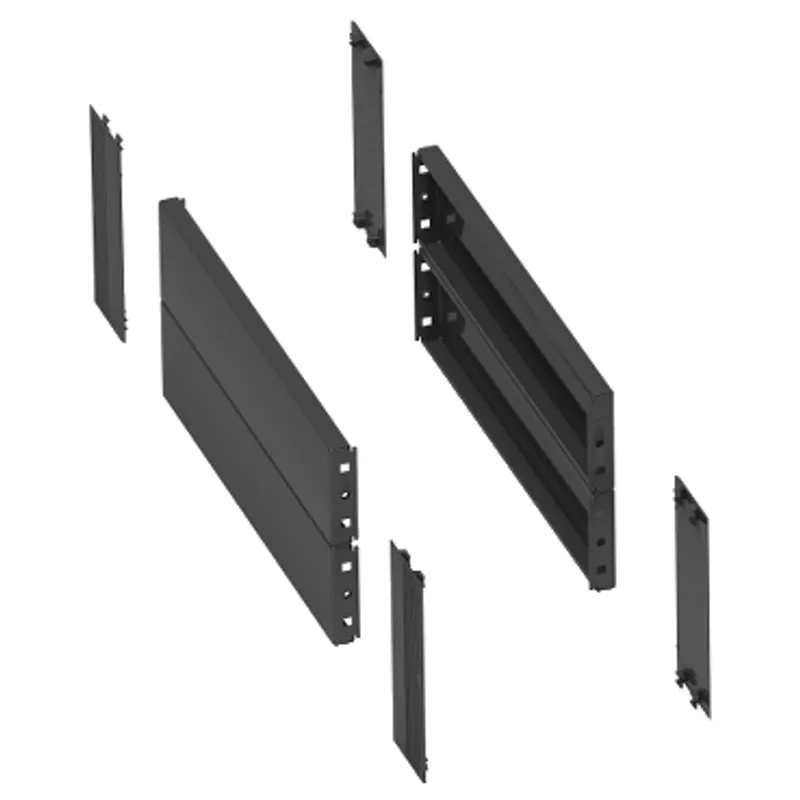

Side panels for the plinth, PanelSeT SFN, PanelSeT SF, for electrical enclosure D800mm, set of 4, H200mm

MPN: NSYSPS8200
EAN: 3606485126753
Category: PanelSet SF

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPS8200?

Plain side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 800 mm and its height is 200 mm. The set contains 4 corners covers, 4 side panels and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP30 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Side plinth
Application	PC application, Multi-purpose, Prisma application, Electronic application, Compartmentalised application
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 4 side panel
Range compatibility	PanelSeT PanelSeT SF SF, Prisma Prisma PH, PanelSeT PanelSeT SFM SFM, PanelSeT SFN
Mounting support	Front plinth
Fixing mode	By screws
Colour	Grey (RAL 7022)
Surface finish	Epoxy-polyester powder
Height	200 mm
Width	Nominal: 800 mm
IP degree of protection	IP20 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 66.500 cm × 21.500 cm × 6.000 cm (L × W × H), 5.000 kg
Package 2	90 PAM, 120.000 cm × 100.000 cm × 103.000 cm (L × W × H), 464.000 kg
