Available on request

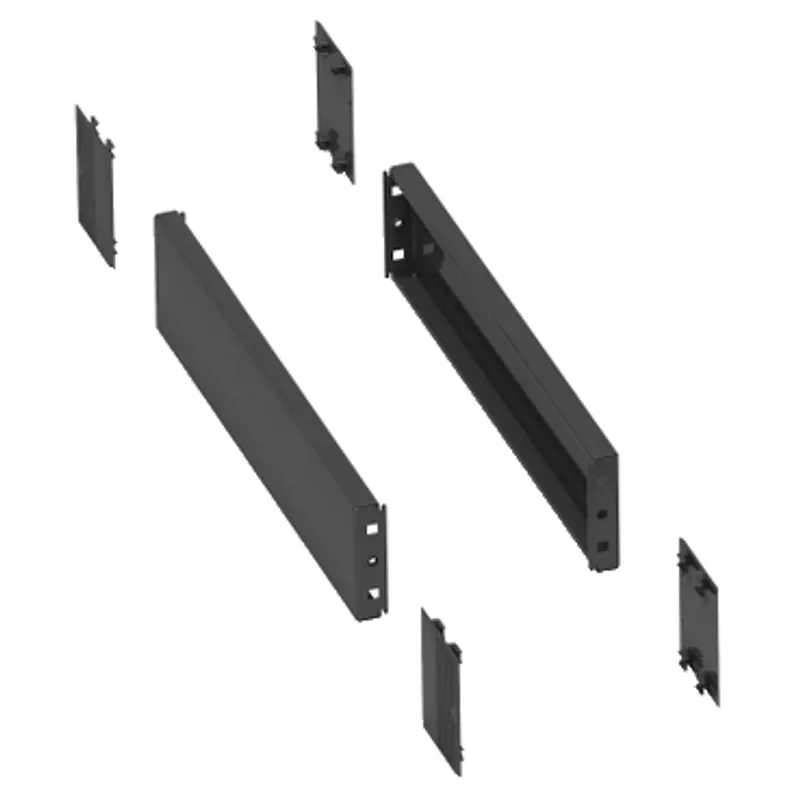

Side panels for the plinth, PanelSeT SFN, PanelSeT SF, for electrical enclosure D800mm, set of 2, H100mm
MPN: NSYSPS8100 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSet SF |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.65 kg |
Shipping & availability
When can NSYSPS8100 be shipped?
NSYSPS8100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSPS8100 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSPS8100 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPS8100, subject to availability and destination.
Specifications
Specifications
| Lead time | Usually Ships within 4 Weeks |
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Side plinth |
| Application | Compartmentalised application, PC application, Prisma application, Multi-purpose, Electronic application |
| Nominal dimensions of the housing | - |
| Device composition | Fixing elements, 4 corner cover, 2 side panel |
| Range compatibility | PanelSeT PanelSeT SF SF, Prisma Prisma PH, PanelSeT PanelSeT SFM SFM, PanelSeT SFN |
| Mounting support | Front plinth |
| Fixing mode | By screws |
| Colour | Grey (RAL 7022) |
| Surface finish | Epoxy-polyester powder |
| Height | 100 mm |
| Width | Nominal: 800 mm |
| IP degree of protection | IP20 (complete plinth) |
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 6.500 cm |
| Package 1 Width | 12.000 cm |
| Package 1 Length | 66.000 cm |
| Package 1 Weight | 2.646 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 70 |
| Package 2 Height | 46.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 200.000 kg |
| Warranty | 18 months |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
