Schneider Electric NSYSMVR14

PanelSeT SM vertical adaptation profiles - 1400 mm

MPN: NSYSMVR14
EAN: 3606480146633
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSMVR14?

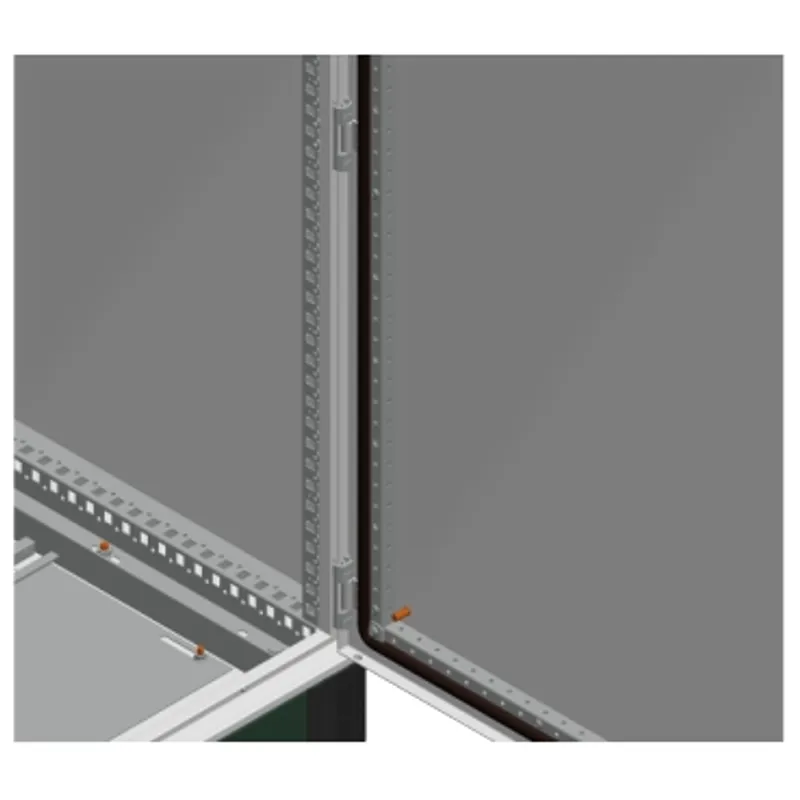

Spacial SM vertical adaptation profiles. 1400 mm. Allows to have fixation points in the external frame of the monobloc enclosure. Fixation in the hinge and latches holes. Zinc plated steel. 2 profiles delivery.

Specifications

Range	PanelSeT
Accessory / separate part category	Mounting accessory
Product or component type	Adaptation profile
Application	Multi-purpose
Nominal dimensions of the housing	-
Range compatibility	PanelSeT PanelSeT SM
Mounting location	Front and rear of enclosure
Installation direction	Vertical
Device composition	Fixing screws, 2 profile
Quantity per set	Set of 1
Material	Steel
Surface finish	Galvanized
Fixing mode	By screws - on screws of hinges and latches location
Height	Nominal: 1400 mm, Real: 1306 mm
Width	42 mm
Depth	24.5 mm
thickness	1.5 mm
Coverage	Core product

Packaging

Package 1	1 PCE, 135.000 cm × 5.500 cm × 3.000 cm (L × W × H), 2.222 kg
Package 2	200 P2M, 200.000 cm × 120.000 cm × 47.000 cm (L × W × H), 467.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSMVR14PDF
