Schneider Electric NSYSM20630

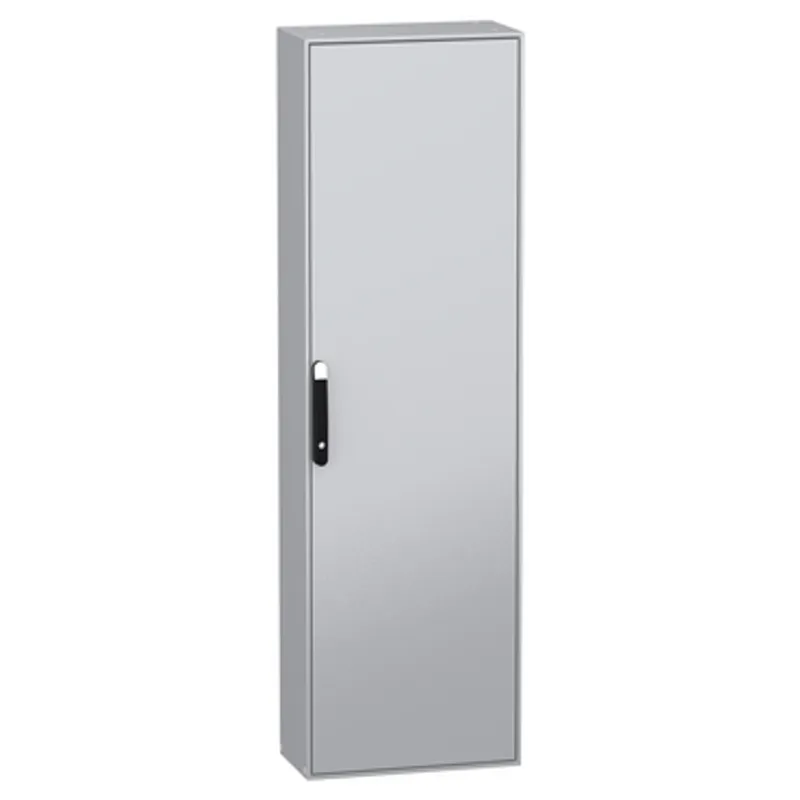

PanelSeT SM compact enclosure without mounting plate - 2000x600x300 mm

MPN: NSYSM20630
EAN: 3606485120768
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYSM20630 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSM20630?

Spacial SM monobloc compact steel enclosure with plain front door. 1999 x 600 x 300 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.

Specifications

Range	PanelSeT
Product name	PanelSeT SM
Product or component type	Compact enclosure
Application	Multi-purpose
Installation accessory type	Floor-standing
Device composition	1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door
Removable parts	Door by screws hinge, Mounting plate bracket by screws
Enclosure nominal height	2000 mm
Enclosure nominal width	600 mm
Enclosure nominal depth	300 mm
Number of doors	Front: 1 door(s)
Door opening side	Reversible (120 °)
Door type	Plain
Lock type	4 points lock, handle with 5 mm double bar insert
Body type	Front part forming a rigid frame with welded corners, Single piece body with welded rear panel
Mounting plate description	Without mounting plate
Type of gland plate	Standard
cable entry	1 entry
Material	Body: sheet steel, Door: sheet steel, Hinge: zamak
Surface finish	Epoxy-polyester powder
Colour	Enclosure: grey (RAL 7035), Handle: black (RAL 9005)
Accessibility for operation	Front
Net weight	72 kg
Standards	IEC 62208
Product certifications	DNV, BV, UL
IK degree of protection	IK10 conforming to IEC 62262, conforming to UL, conforming to cUL
IP degree of protection	IP55 conforming to IEC 60529
Coverage	Core product

Packaging

Package 1	1 PCE, 39.000 cm × 65.000 cm × 213.000 cm (L × W × H), 70.000 kg
Package 2	2 PAL, 78.000 cm × 65.000 cm × 213.000 cm (L × W × H), 140.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSM20630PDF

NSYSM20630: frequently asked questions

Can I still buy the NSYSM20630 now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYSM20630, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYSM20630 be shipped?

NSYSM20630 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSM20630 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSM20630 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM20630, subject to availability and destination.
