Schneider Electric NSYSM1210302D

PanelSeT SM compact enclosure without mounting plate - 1200x1000x300 mm

MPN: NSYSM1210302D
EAN: 3606485120478
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSM1210302D?

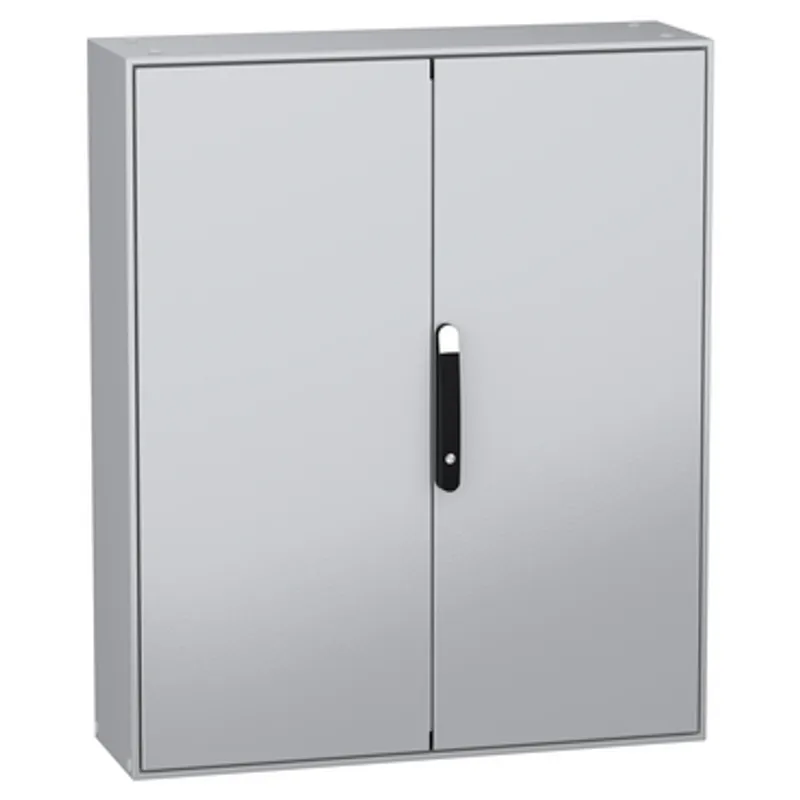

PanelSeT SM is a multi-purpose steel compact monobloc floor-standing enclosure designed for use in harsh environments. It has a nominal height, width and depth of 1200mm, 1000mm and 300mm respectively. The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005). It consists of one body, two plain doors, one cable gland plate with one entry and four mounting plate brackets. The doors can be opened up to 120°, allowing easy access to the equipment inside. The enclosure has a four-point lock with a handle with 5mm double-bar insert. The doors and the mounting plate brackets can be removed for maintenance purposes. It is certified by BV and UL and marine certified by DNV. This enclosure has IP55 ingress protection rating against dust and water and IK10 impact protectoin rating.

Specifications

Range	PanelSeT
Product name	PanelSeT SM
Product or component type	Compact enclosure
Application	Multi-purpose
Installation accessory type	Floor-standing

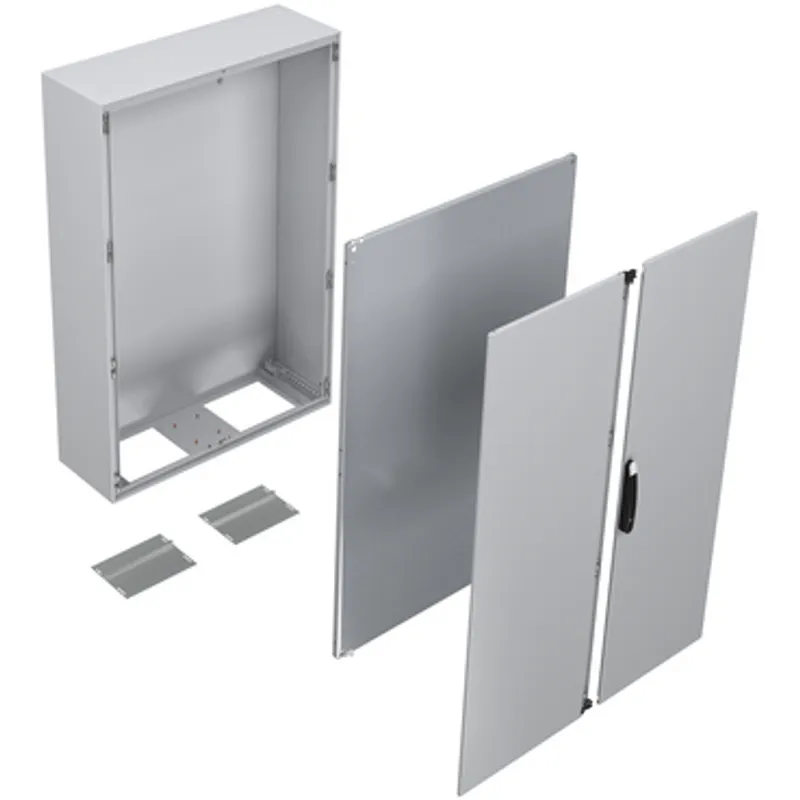

Device composition	1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket
Removable parts	Door by screws hinge, Mounting plate bracket by screws

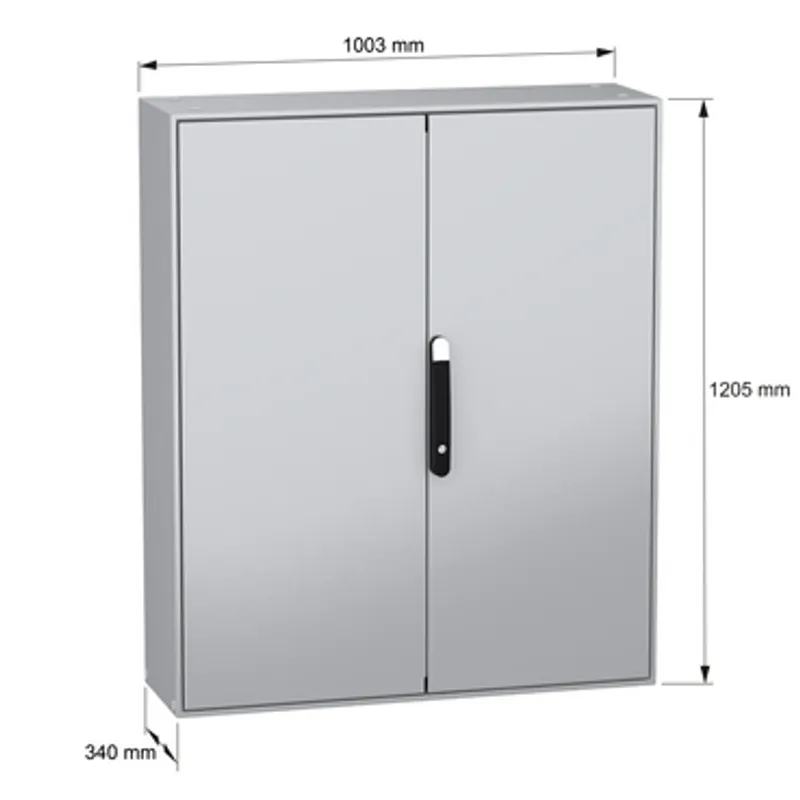

Enclosure nominal height	1200 mm
Enclosure nominal width	1000 mm
Enclosure nominal depth	300 mm
Number of doors	Front: 2 door(s)

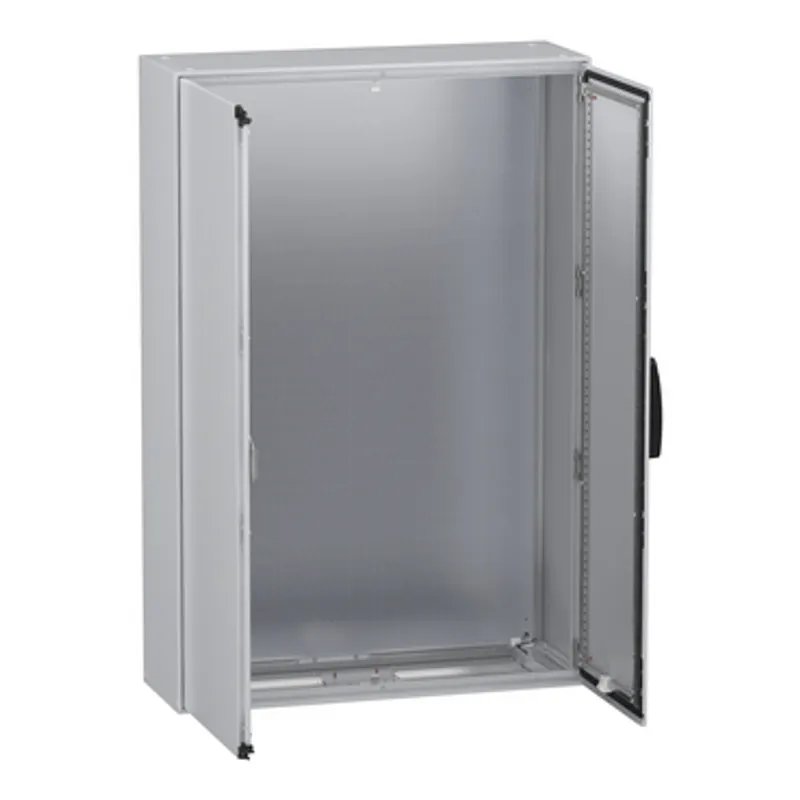

Door opening side	Left (120 °), Right (120 °)
Door type	Plain
Lock type	4 points lock, handle with 5 mm double bar insert
Body type	Single piece body with welded rear panel, Front part forming a rigid frame with welded corners
Mounting plate description	Without mounting plate
Type of gland plate	Standard
cable entry	1 entry
Material	Body: sheet steel, Door: sheet steel, Hinge: zamak
Surface finish	Epoxy-polyester powder
Colour	Enclosure: grey (RAL 7035), Handle: black (RAL 9005)
Accessibility for operation	Front
Net weight	60.5 kg
Standards	IEC 62208
Product certifications	DNV, BV, UL
IK degree of protection	IK10 conforming to IEC 62262, conforming to UL, conforming to cUL
IP degree of protection	IP55 conforming to IEC 60529
Coverage	Core product

Packaging

Package 1	1 PCE, 39.000 cm × 105.000 cm × 133.000 cm (L × W × H), 69.000 kg
Package 2	2 PAL, 78.000 cm × 105.000 cm × 133.000 cm (L × W × H), 138.000 kg
