Schneider Electric NSYSLCR40

Light cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, W400mm, set of 2

MPN: NSYSLCR40
EAN: 3606485132037
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSLCR40?

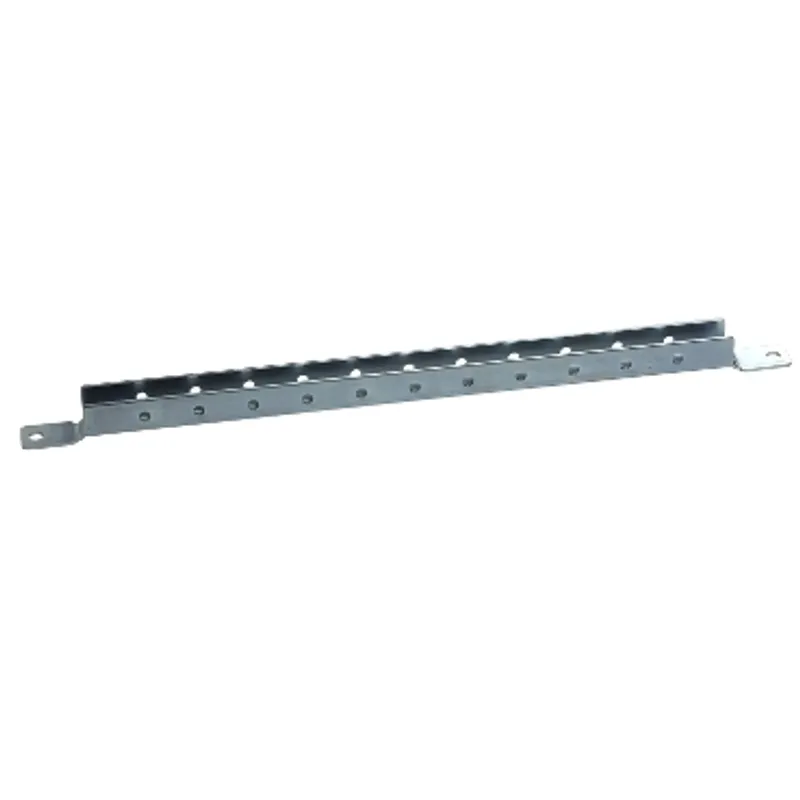

This set of two light cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal length of 40 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.

Specifications

Range	PanelSeT
Accessory / separate part category	Mounting accessory
Product or component type	Light cross rail
Application	Multi-purpose
Nominal dimensions of the housing	- W: 400 mm
Range compatibility	PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SFX
Mounting location	Between cross rails, On structure of enclosure
Mounting support	Adaptation profile, on SM enclosures
Device composition	Fixing elements, 2 cross rails
Quantity per set	Set of 1
Material	Steel
Surface finish	Zinc coated
Fixing mode	By screws - screw type M6 self tapping
Adjustment	Adjustable with a pitch of 25 mm
Number of horizontal rows	1
Height	30 mm
Width	Fixing centers: 350 mm, Nominal: 400 mm, Useful: 310 mm
Depth	18.6 mm
Coverage	Core product

Packaging

Package 1

1 PCE, 37.500 cm × 5.000 cm × 3.500 cm (L × W × H), 520.000 g
