Schneider Electric NSYSICR9040

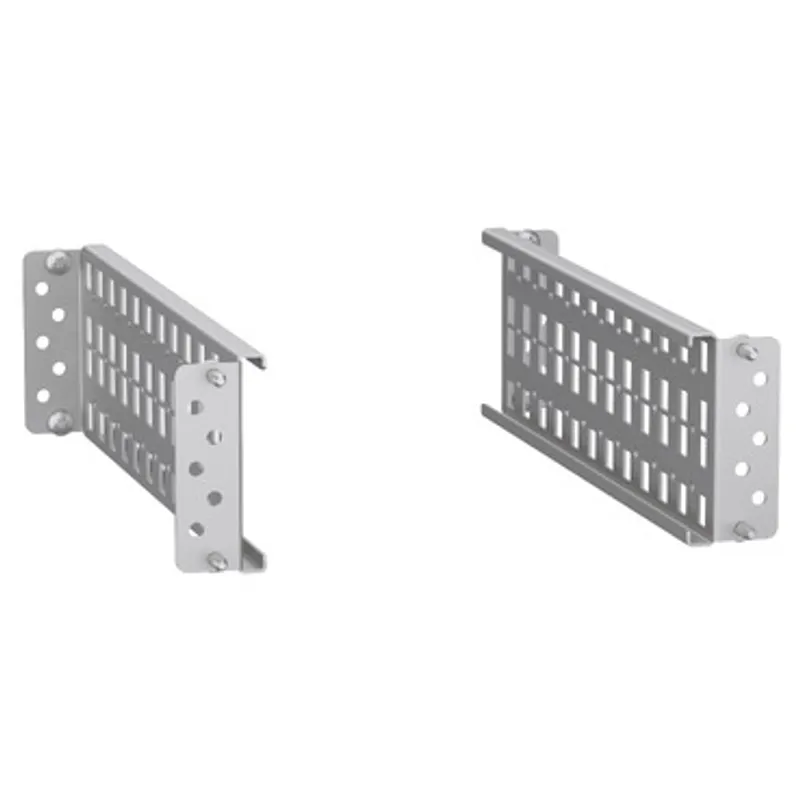

Integrated cross rails, PanelSeT SFN, PanelSeT SF, H90 W400mm, set of 2

MPN: NSYSICR9040
EAN: 3606481327802
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSICR9040?

This set of two integrated cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 90 mm and a nominal length of 90 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.

Specifications

Range	PanelSeT
Product specific application	30 mm additional space on each fixation side (a total of 60 mm)
Accessory / separate part category	Mounting accessory
Product or component type	Cross rail
Application	Multi-purpose
Nominal dimensions of the housing	-
Range compatibility	PanelSeT PanelSeT SF suitable enclosure, PanelSeT PanelSeT SM compact enclosure
Mounting location	On structure of enclosure
Mounting support	Upright
Device composition	Fixing elements, 2 cross rails
Quantity per set	Set of 1
Material	Galvanised steel
Fixing mode	By screws
Adjustment	Adjustable with a pitch of 25 mm
Number of horizontal rows	3
Maximum load	120 kg
Height	90 mm
Width	Nominal: 400 mm, Useful: 309 mm
Depth	12 mm
thickness	1.5 mm

Packaging

Package 1	1 PCE, 34.000 cm × 10.000 cm × 6.000 cm (L × W × H), 836.000 g
Package 2	100 P12, 120.000 cm × 80.000 cm × 48.000 cm (L × W × H), 98.600 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSICR9040PDF
