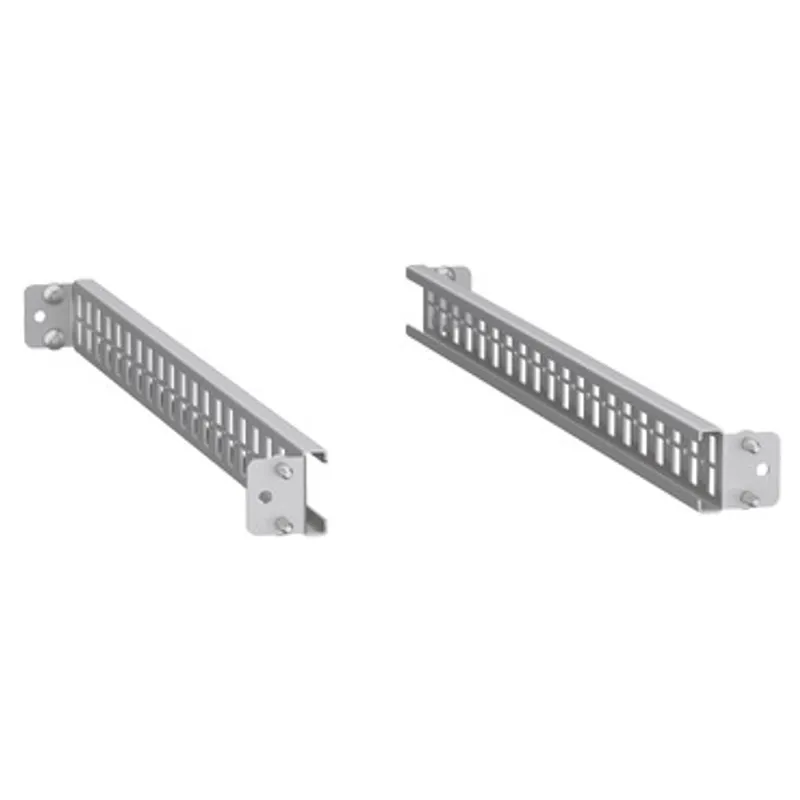

Schneider Electric NSYSICR4060

Integrated cross rails, PanelSeT SFN, PanelSeT SF, H40 W600mm, set of 2

MPN: NSYSICR4060
EAN: 3606481327680
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSICR4060?

This set of two integrated cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures. They are used for the creation of structures inside the enclosure. These mounting elements are made of galvanized steel. They have a nominal width of 40 mm and a nominal length of 40 mm. Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm. They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm. The set consists of two cross rails and fixing elements.

Specifications

Range	PanelSeT
Product specific application	30 mm additional space on each fixation side (a total of 60 mm)
Accessory / separate part category	Mounting accessory
Product or component type	Cross rail
Application	Multi-purpose
Nominal dimensions of the housing	-
Range compatibility	PanelSeT PanelSeT SF suitable enclosure, PanelSeT PanelSeT SM compact enclosure
Mounting location	On structure of enclosure
Mounting support	Upright
Device composition	Fixing elements, 2 cross rails
Quantity per set	Set of 1
Material	Galvanised steel
Fixing mode	By screws
Adjustment	Adjustable with a pitch of 25 mm
Number of horizontal rows	1
Maximum load	50 kg
Height	40 mm
Width	Nominal: 600 mm, Useful: 509 mm
Depth	12 mm
thickness	1.5 mm

Packaging

Package 1	1 PCE, 54.500 cm × 6.000 cm × 5.500 cm (L × W × H), 766.000 g
Package 2	400 P12, 120.000 cm × 80.000 cm × 90.000 cm (L × W × H), 350.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSICR4060PDF
