Available on request

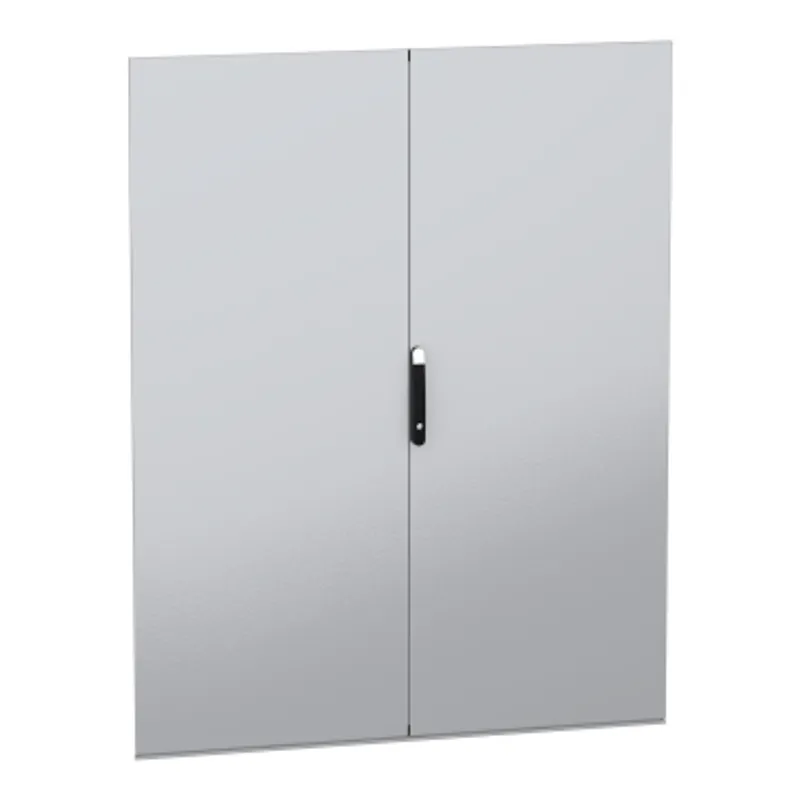

Double plain door, PanelSeT SFN, PanelSeT SM, for electrical enclosure H2000 W1600mm
MPN: NSYSFND20162D · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SFN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 20.7 kg |
Shipping & availability
When can NSYSFND20162D be shipped?
NSYSFND20162D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSFND20162D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSFND20162D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSFND20162D, subject to availability and destination.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - H: 2000 mm W: 1600 mm |
| Mounting location | Front |
| Range compatibility | PanelSeT SFN |
| Device composition | 1 lock with handle and 5 mm double bar insert, 1 locking bar system 4 points, 2 door, 1 locking bar system 2 points, 2 reinforcement frame, 8 hinges |
| Quantity per set | Set of 1 |
| Material | Sheet steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Lock type | Lock 5 mm double bar |
| Number of locks | 1 |
| Door type | External plain |
| Door opening side | Reversible (120 °) |
| Maximum load | 60 kg/m² |

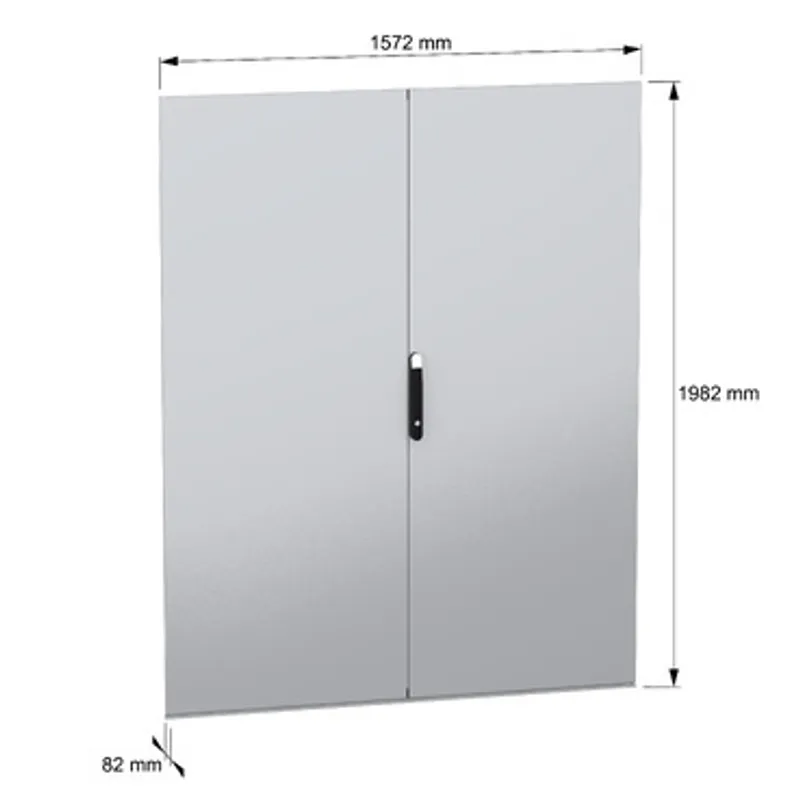

| Height | Nominal: 1966 mm |
| Width | Nominal: 1569 mm |
| Net weight | 20.7 kg |
| IK degree of protection | IK10 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 10.000 cm |
| Package 1 Width | 88.000 cm |
| Package 1 Length | 200.000 cm |
| Package 1 Weight | 62.000 kg |
| Unit Type of Package 2 | P2M |
| Number of Units in Package 2 | 5 |
| Package 2 Height | 68.000 cm |
| Package 2 Width | 200.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 340.000 kg |
| Warranty | 18 months |
