Schneider Electric

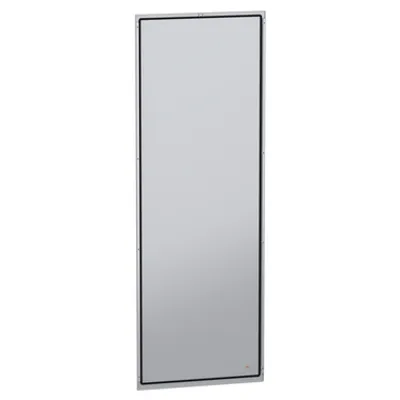

NSYBPN228Rear panel, PanelSeT SFN, for electrical enclosure H2200 W800mm, external fixing
PanelSeT SFN Parts
Schneider Electric

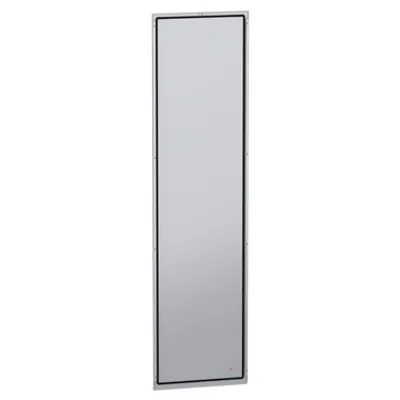

NSYBPN226Rear panel, PanelSeT SFN, for electrical enclosure H2200 W600mm, external fixing
Schneider Electric

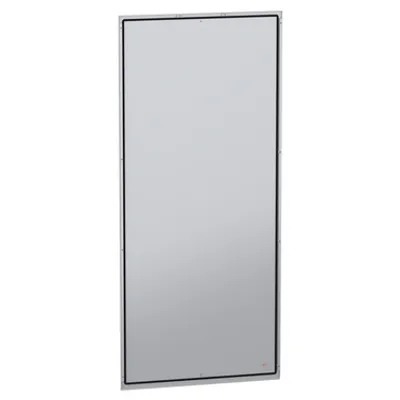

NSYBPN2210Rear panel, PanelSeT SFN, for electrical enclosure H2200 W1000mm, external fixing
Schneider Electric

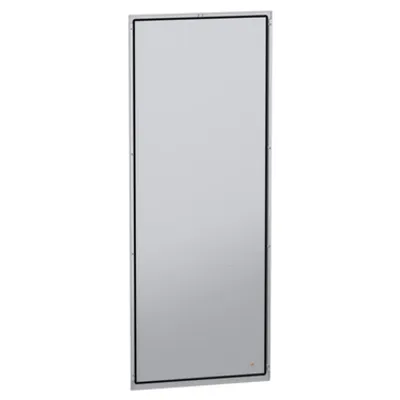

NSYBPN208Rear panel, PanelSeT SFN, for electrical enclosure H2000 W800mm, external fixing
Schneider Electric

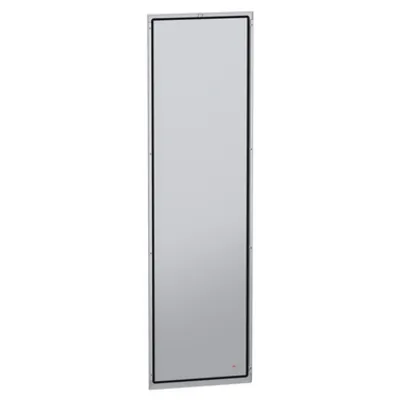

NSYBPN206Rear panel, PanelSeT SFN, for electrical enclosure H2000 W600mm, external fixing
Schneider Electric

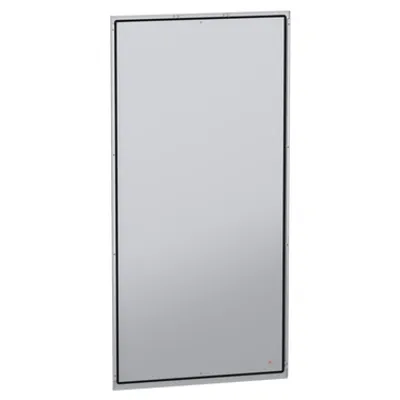

NSYBPN2010Rear panel, PanelSeT SFN, for electrical enclosure H2000 W1000mm, external fixing
Schneider Electric

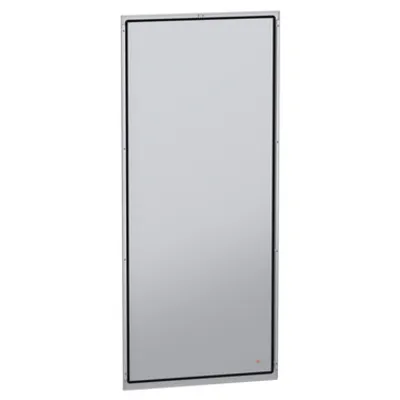

NSYBPN188Rear panel, PanelSeT SFN, for electrical enclosure H1800 W800mm, external fixing
Schneider Electric
NSYBPN186Rear panel, PanelSeT SFN, for electrical enclosure H1800 W600mm, external fixing
Schneider Electric
NSYBPN168Rear panel, PanelSeT SFN, for electrical enclosure H1600 W800mm, external fixing
Schneider Electric

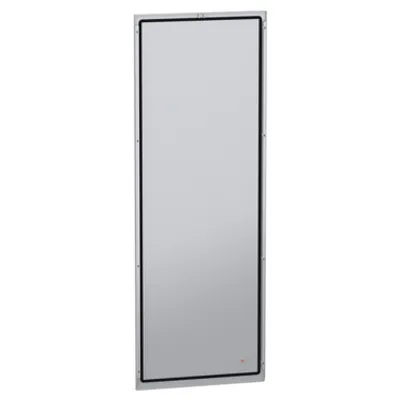

NSYBPN166Rear panel, PanelSeT SFN, for electrical enclosure H1600 W600mm, external fixing
Schneider Electric

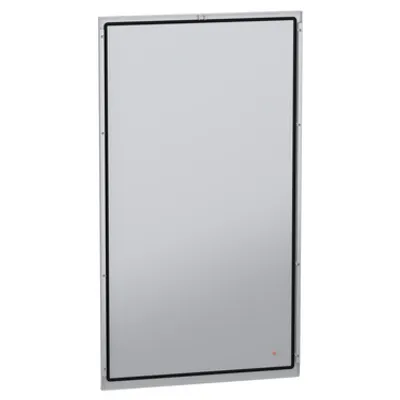

NSYBPN148Rear panel, PanelSeT SFN, for electrical enclosure H1400 W800mm, external fixing
Schneider Electric

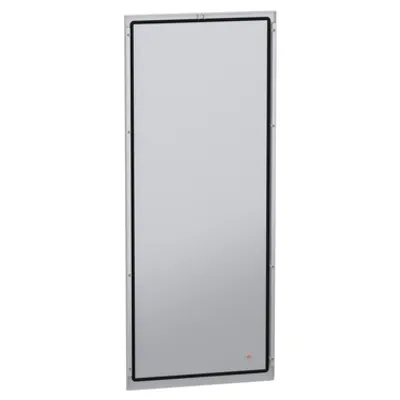

NSYBPN146Rear panel, PanelSeT SFN, for electrical enclosure H1400 W600mm, external fixing
Schneider Electric

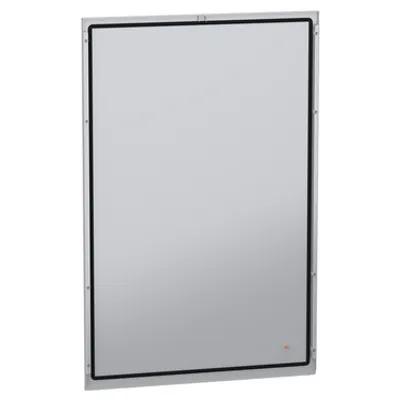

NSYBPN128Rear panel, PanelSeT SFN, for electrical enclosure H1200 W800mm, external fixing
Schneider Electric

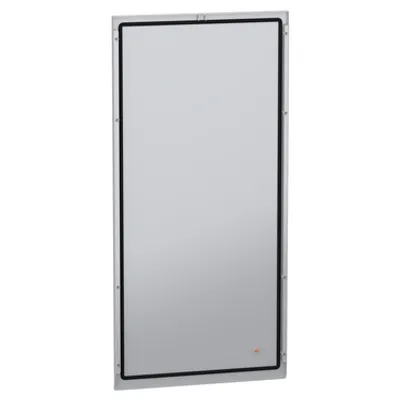

NSYBPN126Rear panel, PanelSeT SFN, for electrical enclosure H1200 W600mm, external fixing
Schneider Electric

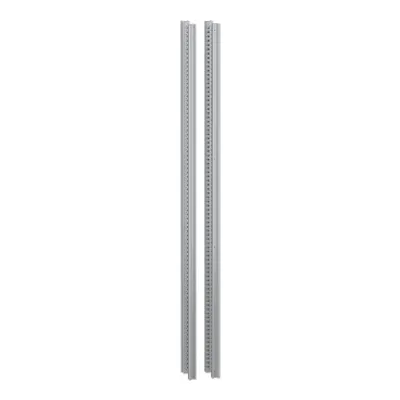

NSYSFNV22Vertical uprights, PanelSeT SFN, for electrical enclosure H2200mm, set of 4
Schneider Electric

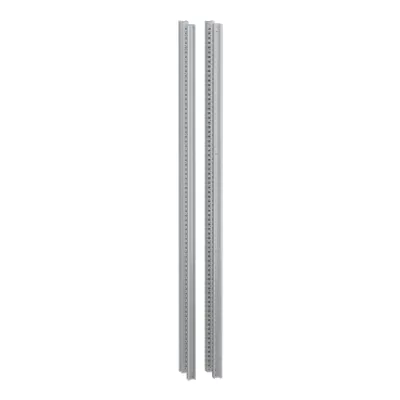

NSYSFNV20Vertical uprights, PanelSeT SFN, for electrical enclosure H2000mm, set of 4
Schneider Electric
NSYSFNV18Vertical uprights, PanelSeT SFN, for electrical enclosure H1800mm, set of 4
Schneider Electric

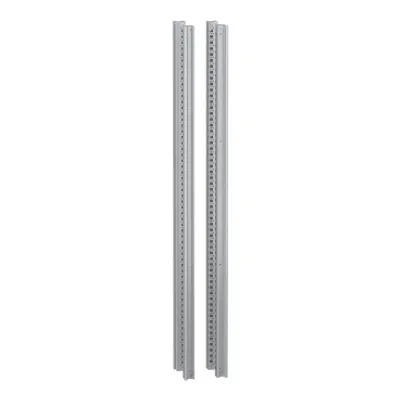

NSYSFNV16Vertical uprights, PanelSeT SFN, for electrical enclosure H1600mm, set of 4
Schneider Electric

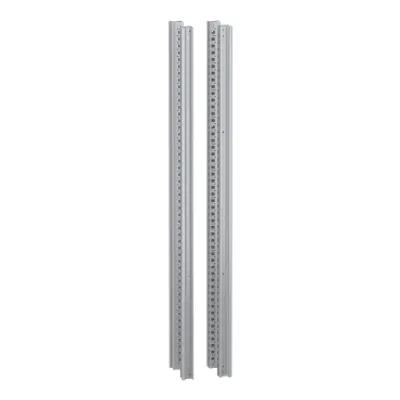

NSYSFNV14Vertical uprights, PanelSeT SFN, for electrical enclosure H1400mm, set of 4
Schneider Electric

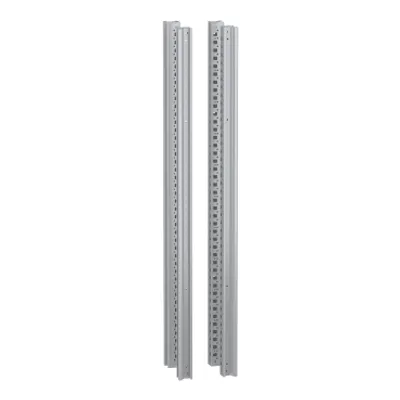

NSYSFNV12Vertical uprights, PanelSeT SFN, for electrical enclosure H1200mm, set of 4
Schneider Electric

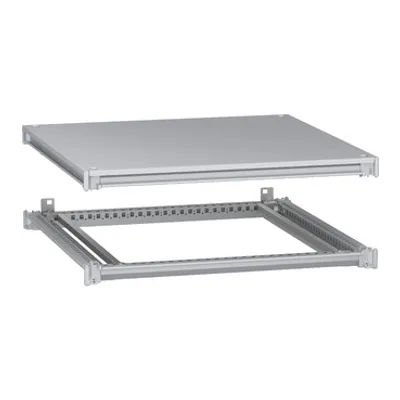

NSYSFNC88Bottom and top frame, PanelSeT SFN, for electrical enclosure W800 D800mm, roof included
Schneider Electric

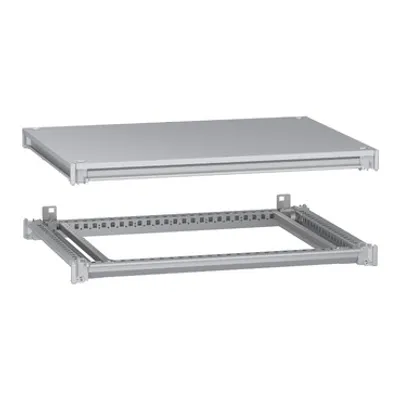

NSYSFNC86Bottom and top frame, PanelSeT SFN, for electrical enclosure W800 D600mm, roof included
Schneider Electric

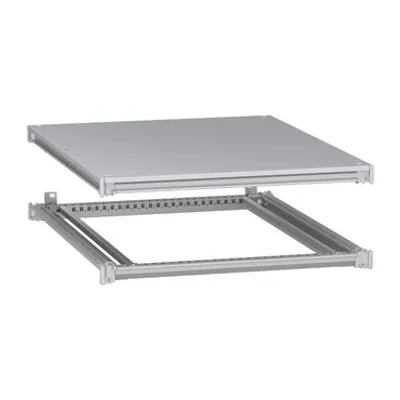

NSYSFNC810Bottom and top frame, PanelSeT SFN, for electrical enclosure W800 D1000mm, roof included
Schneider Electric

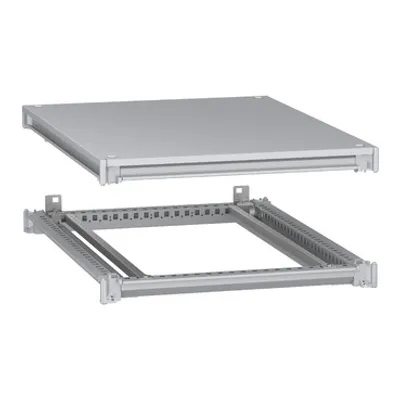

NSYSFNC68Bottom and top frame, PanelSeT SFN, for electrical enclosure W600 D800mm, roof included
Compare PanelSeT SFN
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | For enclosure nominal dimensions | Net weight | Height | Width |
|---|---|---|---|---|---|
| NSYBPN228 | Rear panel | - H: 2200 mm W: 800 mm | 24.5 kg | Nominal: 2200 mm | Nominal: 800 mm |
| NSYBPN226 | Rear panel | - H: 2200 mm W: 600 mm | 18.6 kg | Nominal: 2200 mm | Nominal: 600 mm |
| NSYBPN2210 | Rear panel | - H: 2200 mm W: 1000 mm | 30 kg | Nominal: 2200 mm | Nominal: 1000 mm |
| NSYBPN208 | Rear panel | - H: 2000 mm W: 800 mm | 22.5 kg | Nominal: 2000 mm | Nominal: 800 mm |
| NSYBPN206 | Rear panel | - H: 2000 mm W: 600 mm | 17 kg | Nominal: 2000 mm | Nominal: 600 mm |
| NSYBPN2010 | Rear panel | - H: 2000 mm W: 1000 mm | 29 kg | Nominal: 2000 mm | Nominal: 1000 mm |
| NSYBPN188 | Rear panel | - H: 1800 mm W: 800 mm | 20.5 kg | Nominal: 1800 mm | Nominal: 800 mm |
| NSYBPN186 | Rear panel | - H: 1800 mm W: 600 mm | 15.5 kg | Nominal: 1800 mm | Nominal: 600 mm |
| NSYBPN168 | Rear panel | - H: 1600 mm W: 800 mm | 18 kg | Nominal: 1600 mm | Nominal: 800 mm |
| NSYBPN166 | Rear panel | - H: 1600 mm W: 600 mm | 15 kg | Nominal: 1600 mm | Nominal: 600 mm |
| NSYBPN148 | Rear panel | - H: 1400 mm W: 800 mm | 16 kg | Nominal: 1400 mm | Nominal: 800 mm |
| NSYBPN146 | Rear panel | - H: 1400 mm W: 600 mm | 12 kg | Nominal: 1400 mm | Nominal: 600 mm |
| NSYBPN128 | Rear panel | - H: 1200 mm W: 800 mm | 13.5 kg | Nominal: 1200 mm | Nominal: 800 mm |
| NSYBPN126 | Rear panel | - H: 1200 mm W: 600 mm | 10 kg | Nominal: 1200 mm | Nominal: 600 mm |
| NSYSFNV22 | Vertical upright | — | 21.7 kg | 2200 mm | 45 mm |
| NSYSFNV20 | Vertical upright | — | 19.6 kg | 2000 mm | 45 mm |
| NSYSFNV18 | Vertical upright | — | 17.6 kg | 1800 mm | 45 mm |
| NSYSFNV16 | Vertical upright | — | 15.5 kg | 1600 mm | 45 mm |
| NSYSFNV14 | Vertical upright | — | 13.5 kg | 1400 mm | 45 mm |
| NSYSFNV12 | Vertical upright | — | 11.5 kg | 1200 mm | 45 mm |
| NSYSFNC88 | Framework kit | - W: 800 mm D: 800 mm | — | 110 mm | 800 mm |
| NSYSFNC86 | Framework kit | - W: 800 mm D: 600 mm | — | 110 mm | 800 mm |
| NSYSFNC810 | Framework kit | - W: 800 mm D: 1000 mm | — | 110 mm | 800 mm |
| NSYSFNC68 | Framework kit | - W: 600 mm D: 800 mm | — | 110 mm | 600 mm |
Common to all listed parts
| Range | PanelSeT |
| Range compatibility | PanelSeT SFN |
| Material | Steel |
