Schneider Electric NSYSFELB

Lifting brackets, PanelSeT SFN, PanelSeT SF, set of 4

MPN
NSYSFELB
EAN
3606485131559
Category
PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSFELB?

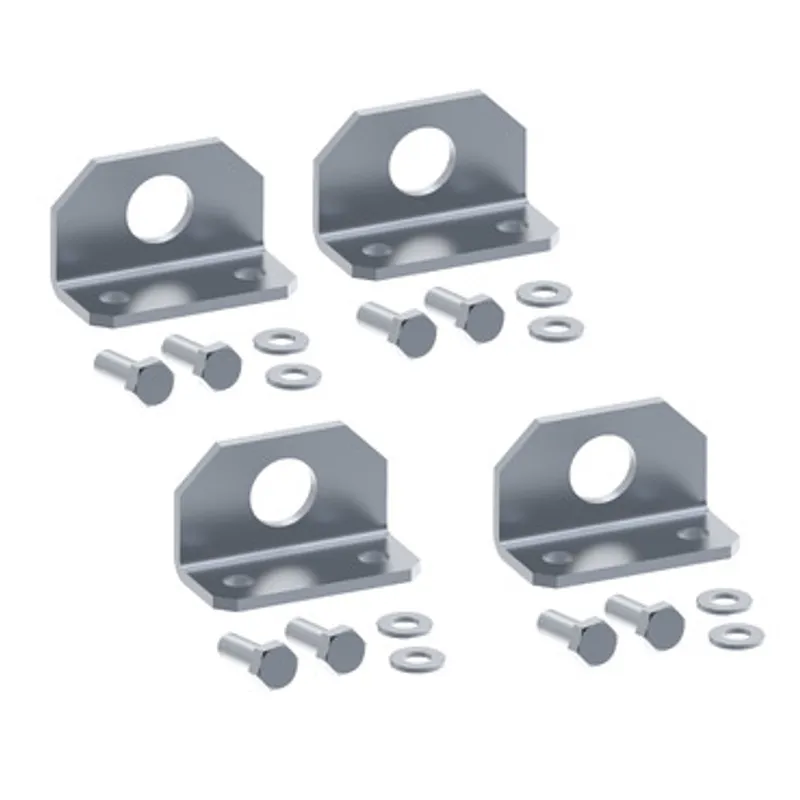

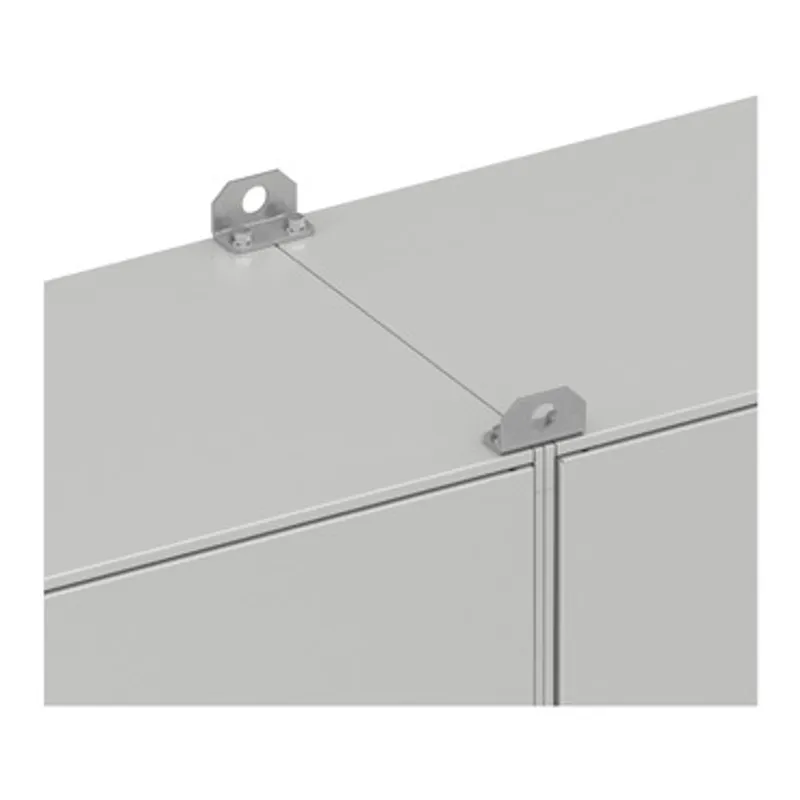

This is a set of lifting & transport brackets suitable for PanelSeT SFN, PanelSeT SF and PrismaSeT electrical enclosures. The product is made of zinc-coated steel. It is designed to be fixed to the structure between two coupled enclosures, in the axis of the uprights. The maximum load is 500 kg at 90º per unit. Maximum 2 assembled enclosures can be be lifted by using the set of 2 brackets. The kit contains 4 brackets and fixing elements.

Specifications

Specifications

AreaPanelSeT
categoryLifting accessory
Product or component typeLifting bracket
ApplicationMulti-purpose
Mounting locationEnclosure top
Mounting supportDirectly in the axis of the uprights
Range compatibilityPrisma Prisma PH, PanelSeT PanelSeT SFHD, PanelSeT PanelSeT SFM
Device composition4 bracket, fixing elements
Quantity per setSet of 1
MaterialSteel
Surface finishZinc coated
Fixing modeBy screws - screw type M12
Permanent permissible load500 kg
Height60 mm
Width100 mm
Depth49 mm
Diameter32 mm
CoverageCore product

Packaging

Package 11 PCE, 15.000 cm × 9.000 cm × 7.500 cm (L × W × H), 1.956 kg
Package 2250 PAM, 120.000 cm × 100.000 cm × 49.000 cm (L × W × H), 504.000 kg
