Schneider Electric NSYSFEB

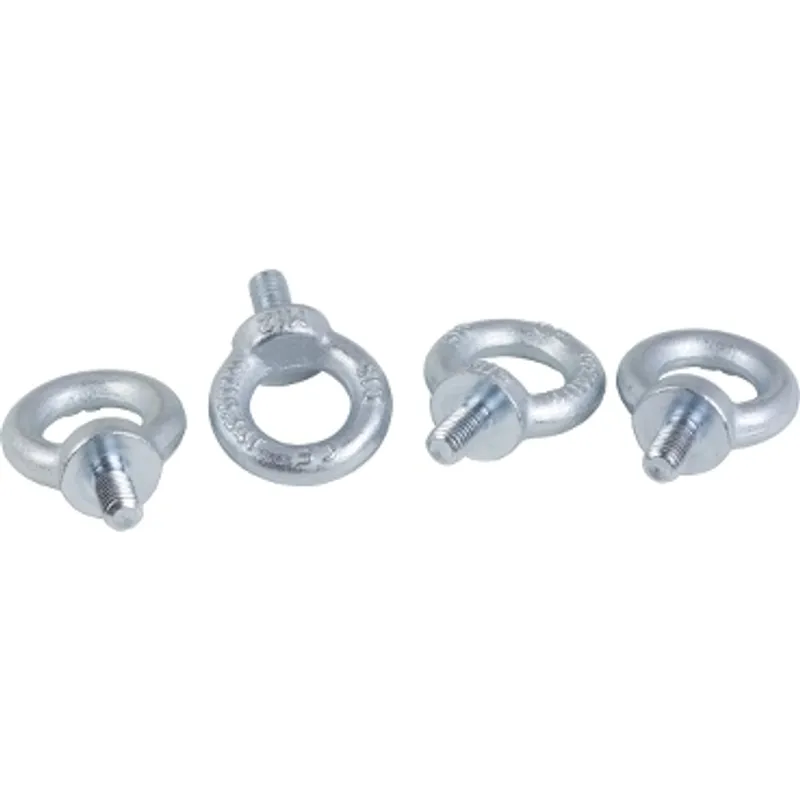

Lifting eyebolts, PanelSeT SFN, PanelSeT SF, steel , M12 , set of 4
- MPN
- NSYSFEB
- EAN
- 3606485131542
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSFEB?
This is a set of M12 lifting eyebolts suitable for PanelSeT SFN, PanelSeT SF and PrismaSeT electrical enclosures. The product is made of galvanized cast steel. It is designed to be screwed directly into the structure of the enclosure, in the axis of the uprights. The maximum load is 1360 kg at 90º using 4 units (340 kg at 90º per unit). The kit contains 4 eyebolts.
Specifications
Specifications
| Area | PanelSeT |
| category | Lifting accessory |
| Product or component type | Lifting eye |
| Application | Multi-purpose |
| Mounting location | Enclosure top |
| Mounting support | Directly in the axis of the uprights |
| Range compatibility | Prisma Prisma PH, PanelSeT PanelSeT SFHD, PanelSeT PanelSeT SFM |
| Device composition | 4 eyebolt |
| Quantity per set | Set of 1 |
| Material | Cast steel |
| Surface finish | Galvanized |
| Fixing mode | Screwed |
| Permanent permissible load | 340 kg for 1 eyebolt vertical direction |
| Height | 62.5 mm |
| Width | 55 mm |
| Depth | 24 mm |
| Diameter | 29 mm |
| ISO thread | M12 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 14.000 cm × 9.000 cm × 7.500 cm (L × W × H), 692.000 g |
| Package 2 | 400 P12, 120.000 cm × 80.000 cm × 80.000 cm (L × W × H), 289.800 kg |
