Schneider Electric NSYS3D8825P

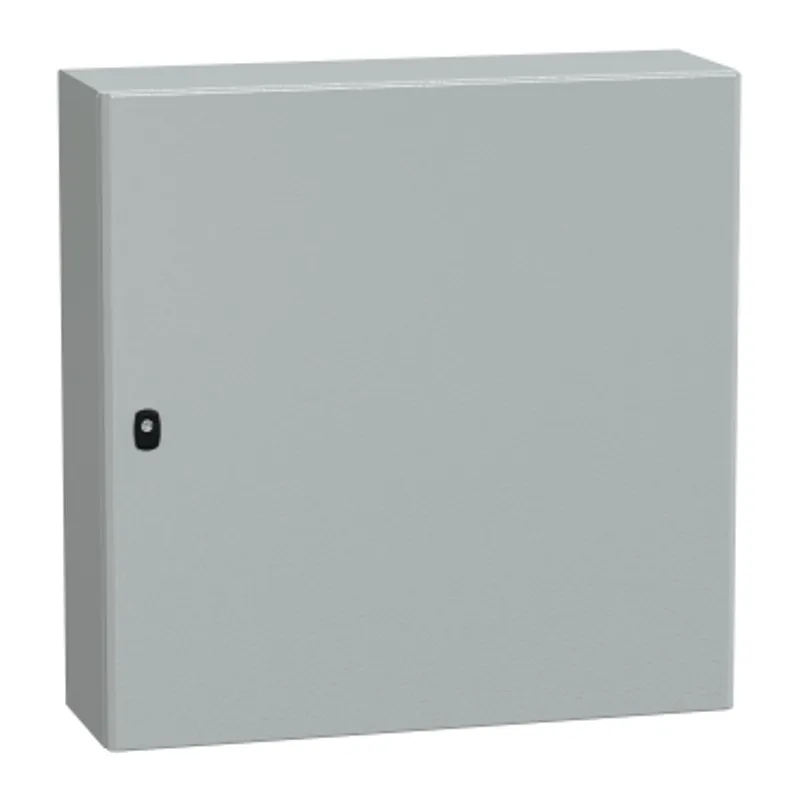

Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 800x800x250mm, IP66, IK10
- MPN
- NSYS3D8825P
- EAN
- 3606480158872
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D8825P?
Spacial S3D is an 800mm x 800mm x 250mm steel wall-mounting enclosure for multi-purpose applications It is designed to withstand high impact and has an IK10 rating (IEC62262) and an IP66 rating (IEC60529) It is certified by cUL, GL, UL, DNV, BV and LR and is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, one mounting plate and one door with a lock The door can be opened up to 120° and has a three-point lock with a 3mm double-bar insert The door and the cable gland plates can be removed for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 250 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 1 mounting plate, 1 door with lock |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, GL, UL, DNV, BV |
| Net weight | 40 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 84.000 cm × 82.000 cm × 30.500 cm (L × W × H), 37.000 kg |
| Package 2 | 8 PAM, 120.000 cm × 100.000 cm × 178.000 cm (L × W × H), 309.000 kg |
