Schneider Electric NSYS3D6420

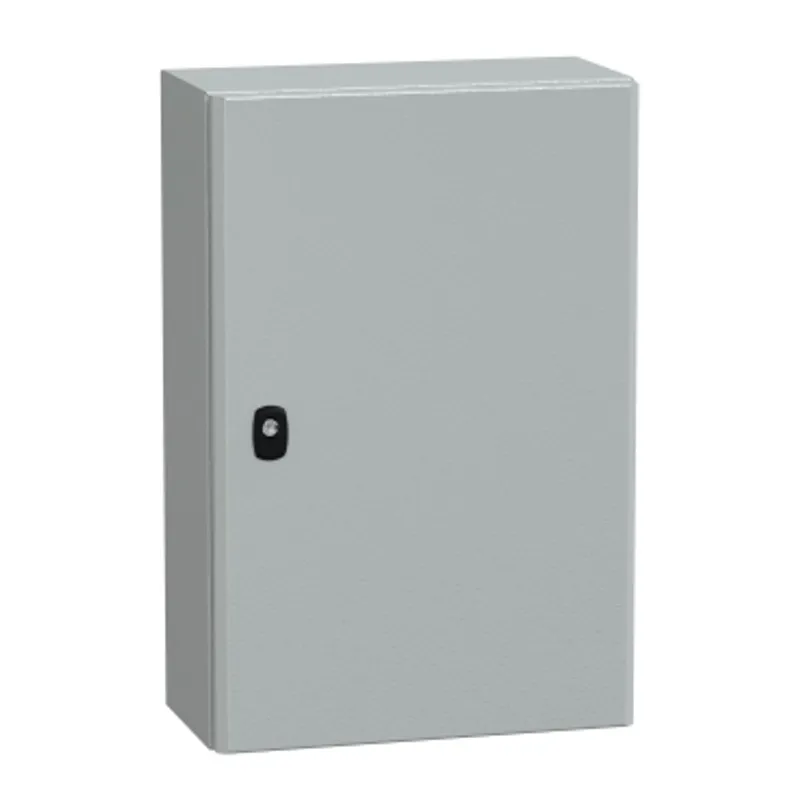

Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 600x400x200mm, IP66, IK10

MPN
NSYS3D6420
EAN
3606480159336
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D6420?

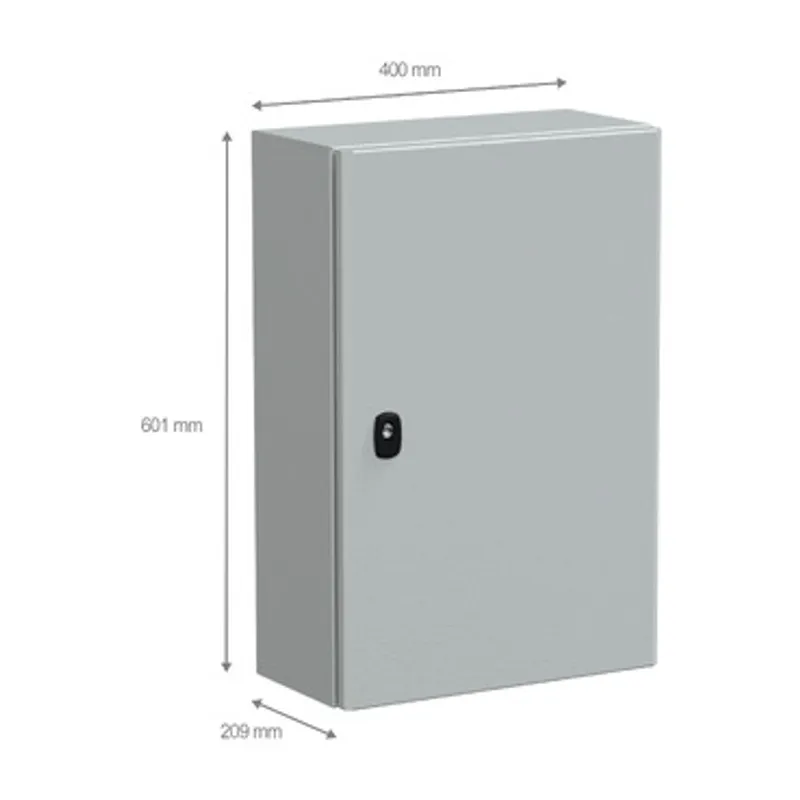

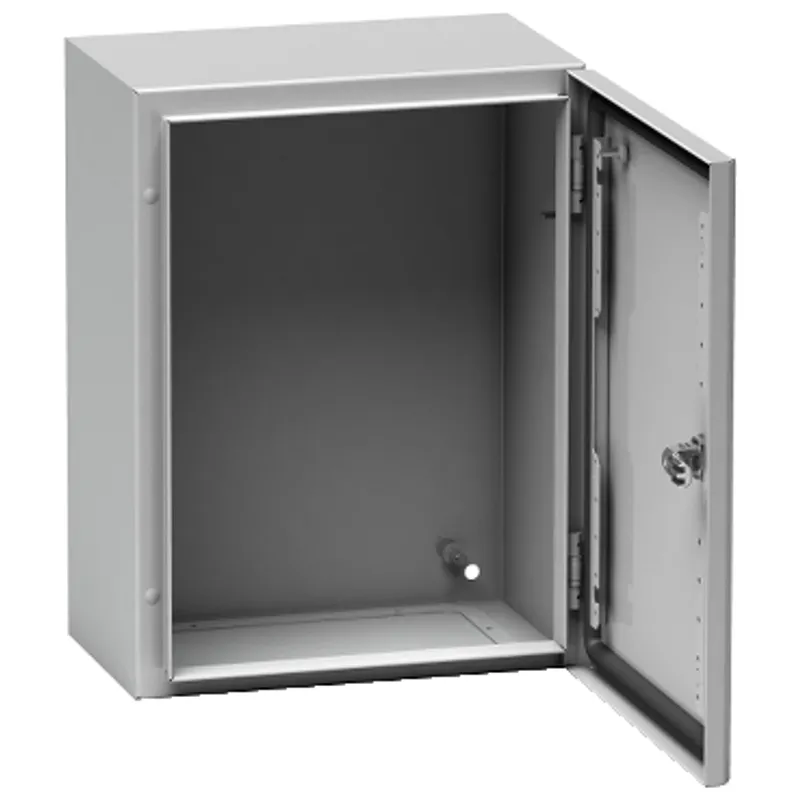

Spacial S3D is a multi-purpose monobloc wall-mounting enclosure made of steel, designed for use in harsh environments It has a nominal height, width and depth of 600mm, 400mm and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one door, one cable gland plate and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 10,76kg It is certified by GL, LR, UL, DNV, BV and cUL and has a NEMA 4X/13 rating for protection against dust and water

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height600 mm
Enclosure nominal width400 mm
Enclosure nominal depth200 mm
Door typePlain
Mounting plate descriptionWithout mounting plate
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 1 door, 1 lock, 1 cable gland plate
body typeSingle piece body, Gutter-shaped front rail double sheet thickness
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialSteel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsGL, UL, DNV, BV, cUL
Net weight10.76 kg
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 61.500 cm × 41.500 cm × 24.500 cm (L × W × H), 10.552 kg
Package 230 PAM, 120.000 cm × 100.000 cm × 199.000 cm (L × W × H), 330.000 kg
