Schneider Electric NSYS3D10840

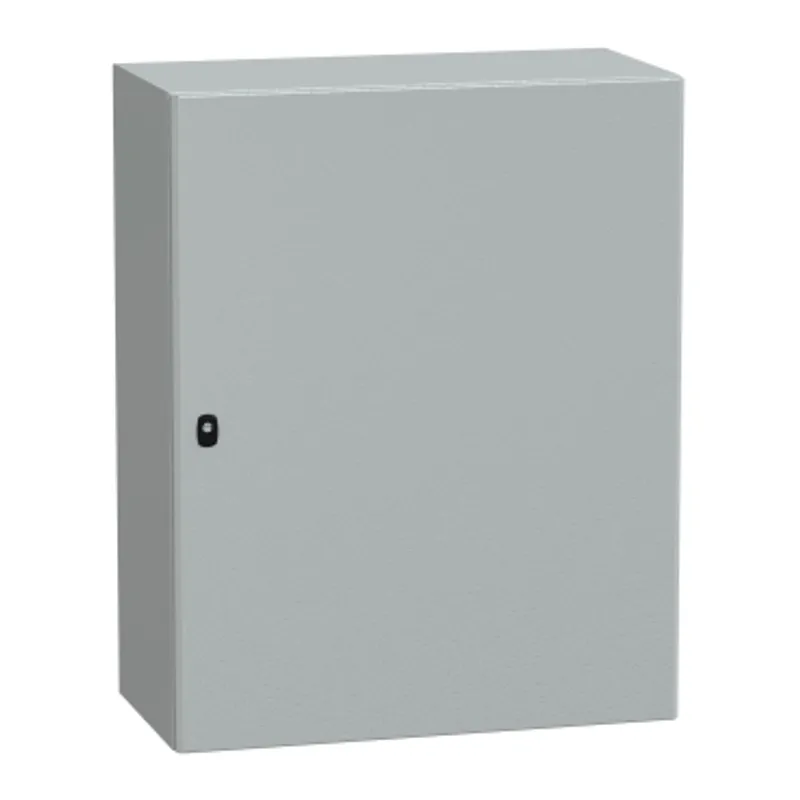

Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 1000x800x400mm, IP66, IK10

MPN
NSYS3D10840
EAN
3606480160097
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D10840?

Spacial S3D steel wall-mounting enclosure is designed to provide multi-purpose protection in harsh environments It is certified by DNV, cUL, UL, BV, LR, and GL and is rated NEMA 4X/13 and IK10 (IEC62262) for high impact The enclosure has an IP66 rating (IEC60529) to protect against dust and water This enclosure has a nominal height, width and depth of 1000mm, 800mm and 400mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, one plain door and a lock The door is reversible and can be opened up to 120°, allowing easy access to the equipment inside The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plates can be removed for maintenance purposes

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1000 mm
Enclosure nominal width800 mm
Enclosure nominal depth400 mm
Door typePlain
Mounting plate descriptionWithout mounting plate
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 2 cable gland plate, 1 door, 1 lock
body typeSingle piece body, Gutter-shaped front rail double sheet thickness
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialSteel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsDNV, cUL, UL, BV, GL
Net weight42 kg
NEMA degree of protectionNEMA 4X/13
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP66 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 103.000 cm × 82.000 cm × 45.500 cm (L × W × H), 41.400 kg
Package 24 PAM, 120.000 cm × 100.000 cm × 178.000 cm (L × W × H), 172.000 kg
