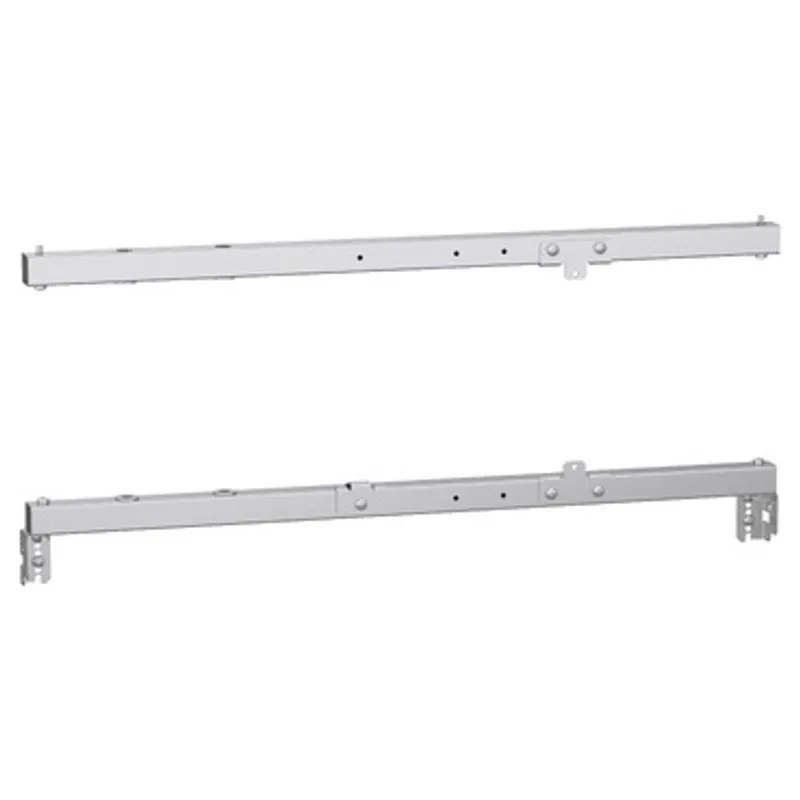

set of 2 PanelSeT SF/SM partial 19" swing rack supports - 800 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT for IT network and server cabinets |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.36 kg |
Shipping & availability
When can NSYRSWSP8 be shipped?
NSYRSWSP8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYRSWSP8 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYRSWSP8 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYRSWSP8, subject to availability and destination.
Schneider Electric set of 2 PanelSeT SF/SM partial 19" swing rack supports - 800 mm, manufacturer part number NSYRSWSP8. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Swing rack support |
| Application | Multi-purpose, Electronic application |
| For enclosure nominal dimensions | - W: 800 mm |
| Mounting support | Partial 19'' swing rack, for height or depth adjustment |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM, PanelSeT PanelSeT SF-E |
| Device composition | Fixing elements, 2 support |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element: structure of enclosure |
| Adjustment | Adjustable in height or depth with a pitch of 25 mm |
| Height | Real: 40 mm |
| Width | Nominal: 800 mm, Real: 9.5 mm |
| Depth | Real : 75 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 7.000 cm |
| Package 1 Length | 89.000 cm |
| Package 1 Weight | 2.360 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 89.000 cm |
| Package 2 Weight | 47.200 kg |
| Coverage | Core product |
| Warranty | 18 months |
More Schneider Electric parts
Available on requestPanelSeT SF/SM partial 19" swing rack - 1002 mm
Available on requestPanelSeT SF/SM partial 19" swing rack - 355 mm
Available on requestPanelSeT SF/SM partial 19" swing rack - 468 mm
Available on requestset of 2 PanelSeT SF/SM partial 19" swing rack supports - 600 mm
Available on requestSafety terminals section 1x4mm² . Supply : 20
Available on requestSafety terminals section 1x6mm² . Supply : 20
Available on requestSafety terminals section 1x10mm² . Supply 20.

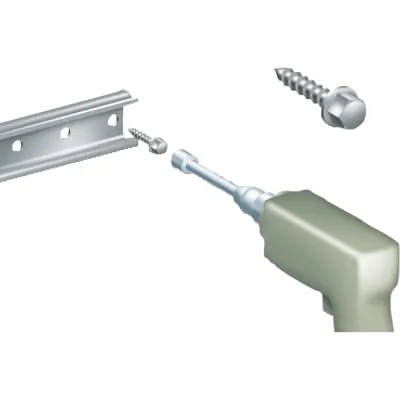

Available on requestSelf-tapping screw 4.8x13mm + captive washer. Supply: 100 units
