Schneider Electric NSYPLSP5454G

PLS box, polyester rear, polyester cover IP66 54x54x18cm

MPN
NSYPLSP5454G
EAN
3606480777295
Category
PanelSeT PLS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLSP5454G?

Thalassa PLS box polyester rear with opaque polyester cover. 540 x 540 x 180 mm. Insulating modular box. One piece moulded body. Wall mounted. Low plain cover, cover locking screw removable. Polyester reinforced with fibreglass rear and cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLS
Device short namePLS
Enclosure typeMulti-purpose
CategoryInsulating modular box
Nominal height540 mm
Nominal width540 mm
Nominal depth180 mm
Enclosure mountingWall mounted
Device composition1 cover: on enclosure, 1 rear part: on enclosure, locking screws
Body typeOne piece moulded
Type of front coverLow plain cover
Lock typeSlot screw
Removable partsCover locking screw
MaterialRear: polyester reinforced with fibreglass, Cover: polyester reinforced with fibreglass
ColourBody: grey (RAL 7035)
StandardsNEMA classification 13, NEMA 4X, IEC 62208
Product certificationsUL
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK09 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-30…70 °C

Packaging

Package 11 PCE, 55.000 cm × 55.000 cm × 19.000 cm (L × W × H), 6.634 kg
Package 230 PAM, 120.000 cm × 100.000 cm × 184.500 cm (L × W × H), 212.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLSP5454G: frequently asked questions

When can NSYPLSP5454G be shipped?

NSYPLSP5454G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLSP5454G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLSP5454G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLSP5454G, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYPLSP2736G – PLS box, polyester rear, polyester cover IP66 27x36x18cm
Schneider Electric
NSYPLSP2736G

PLS box, polyester rear, polyester cover IP66 27x36x18cm

Schneider Electric NSYPLSP2754G – PLS box, polyester rear, polyester cover IP66 27x54x18cm
Schneider Electric
NSYPLSP2754G

PLS box, polyester rear, polyester cover IP66 27x54x18cm

Schneider Electric NSYPLSP3636G – PLS box, polyester rear, polyester cover IP66 36x36x18cm
Schneider Electric
NSYPLSP3636G

PLS box, polyester rear, polyester cover IP66 36x36x18cm

Schneider Electric NSYPLSP3654G – PLS box, polyester rear, polyester cover IP66 36x54x18cm
Schneider Electric
NSYPLSP3654G

PLS box, polyester rear, polyester cover IP66 36x54x18cm

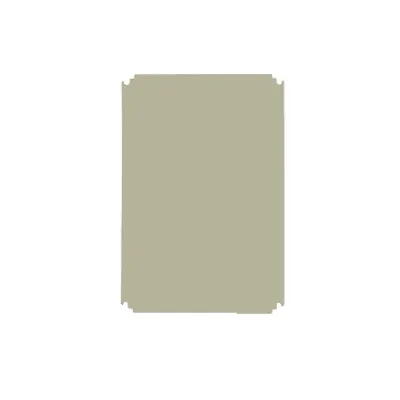

Schneider Electric NSYPMA105 – Polyester insulating mounting plate for PLA enclosure H1000xW500mm
