PanelSeT PLS Parts
Compare PanelSeT PLS
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product or component type | Device composition | Depth | Height | Width |
|---|---|---|---|---|---|

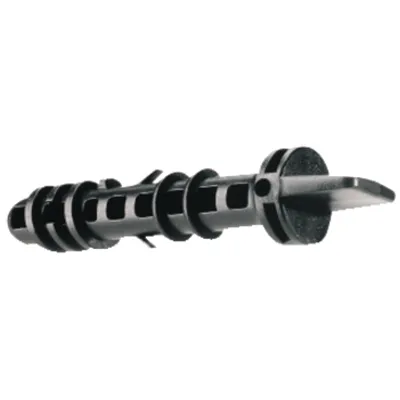

| NSYTCM274 | Screw | 4 screw | 100 mm | 15 mm | — |

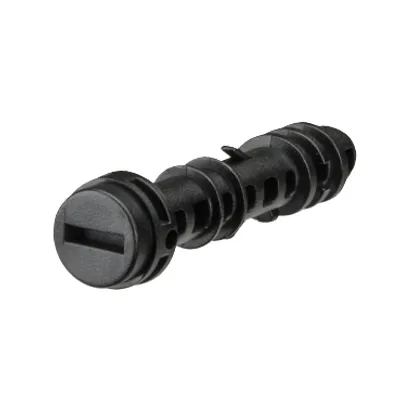

| NSYTCD274 | Screw | 4 screw | — | — | — |

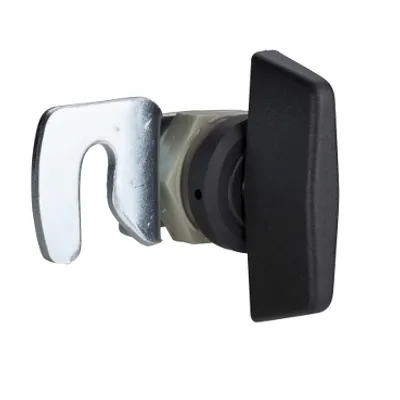

| NSYCL27M | Lock | 1 key, 1 side lock | — | — | — |

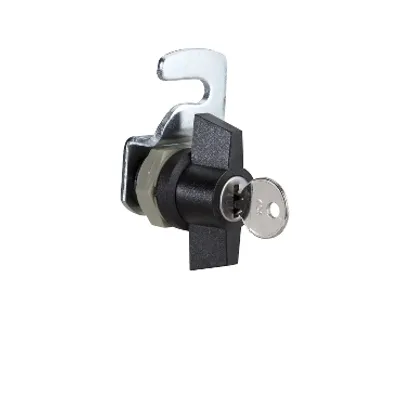

| NSYCL27L405 | Lock | 1 key, 1 side lock | — | — | — |

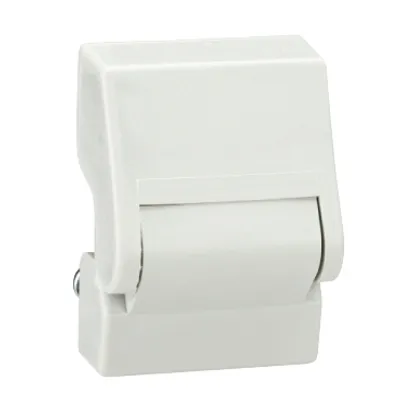

| NSYBE27G | Hinge | Fixing elements, 2 x hinge | — | — | — |

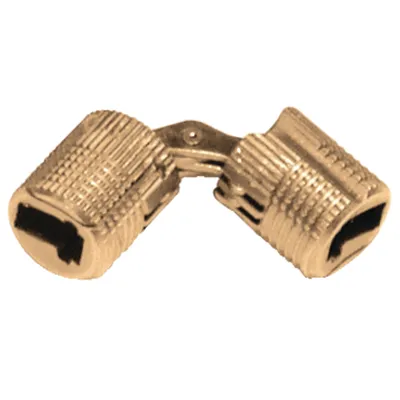

| NSYBL27 | Hinge | Fixing elements, 2 x hinge | — | — | — |

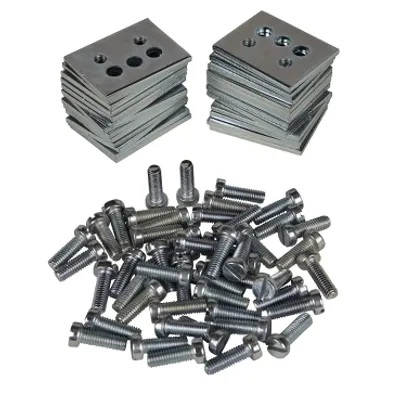

| NSYPF27X | Wall fixing support | Fixing elements, 4 lug | 100 mm | 0 mm | 100 mm |
| NSYPF27N | Wall fixing support | Fixing elements, 4 lug | 100 mm | 0 mm | 100 mm |
| NSYATM27 | Handle | 1 handle | 44 mm | 130 mm | — |
| NSYUM27360 | Full-opening coupling frame | 1 frame, gasket | — | — | Opening: 290 mm |
| NSYUM27270 | Full-opening coupling frame | 1 frame, gasket | 230 mm | 5 mm | Opening: 200 mm |

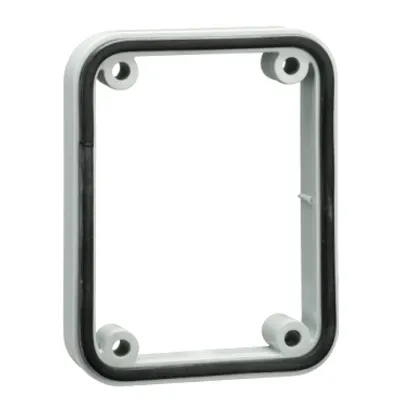

| NSYUM27180 | Full-opening coupling frame | 1 frame, gasket | — | — | Opening: 110 mm |
| NSYUCC360 | Partial-opening coupling frame | 1 frame | 121 mm | 240 mm | Opening: 290 mm |

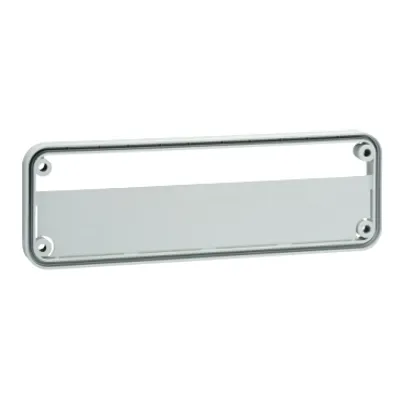

| NSYUCC270 | Partial-opening coupling frame | 1 frame | 121 mm | 240 mm | Opening: 200 mm |

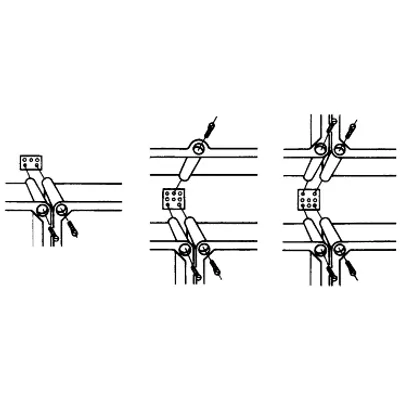

| NSYPS4C27 | Box coupling unit piece | 1 box coupling unit piece | 130 mm | 60 mm | 90 mm |
| NSYPS2C27 | Box coupling unit piece | 1 box coupling unit piece | 130 mm | 60 mm | 90 mm |
| NSYTL27360G | Side plate | 1 side plate | — | — | 290 mm |

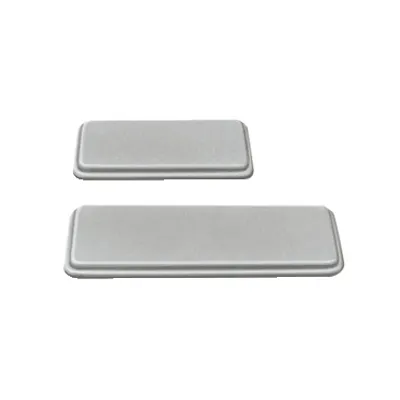

| NSYTL27270G | Side plate | 1 side plate | — | — | 200 mm |
| NSYTPLSP3654G | Cover | 1 cover | 45 mm | 360 mm | 540 mm |
| NSYTPLSP2754G | Cover | 1 cover | 45 mm | 270 mm | 540 mm |

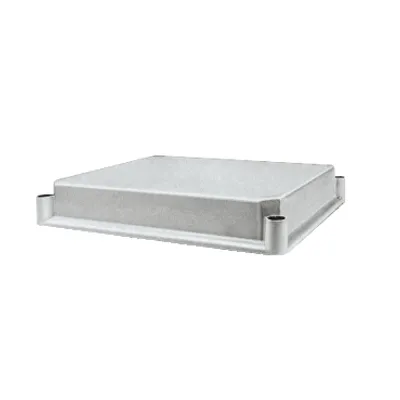

| NSYTPLSP2727G | Cover | 1 cover | 45 mm | 270 mm | 270 mm |
| NSYTPLSC5472AG | Cover | 1 cover | 95 mm | 540 mm | 720 mm |
| NSYTPLSC5454AG | Cover | 1 cover | 95 mm | 540 mm | 540 mm |
| NSYTPLSC5454G | Cover | 1 cover | 45 mm | 540 mm | 540 mm |
Common to all listed parts
| Range | PanelSeT |
