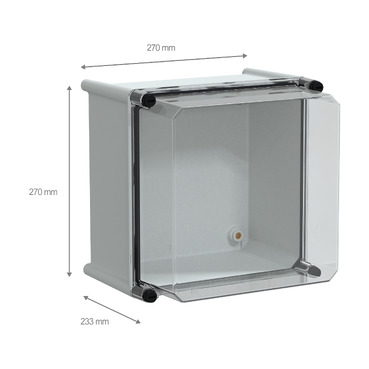

Schneider Electric NSYPLS2727AG

PLS box, polyester rear, transparent PC cover IP66 27x27x23cm

MPN
NSYPLS2727AG
EAN
3606480776847
Category
PanelSeT PLS
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLS2727AG?

Thalassa PLS box polyester rear with transparent PC cover. 270 x 270 x 230 mm. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover, cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, NEMA (13,4X) 960°C fire resistance. Insulation Class II.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLS
Device short namePLS
Enclosure typeMulti-purpose
CategoryInsulating modular box
Nominal height270 mm
Nominal width270 mm
Nominal depth230 mm
Enclosure mountingWall mounted
Device composition1 cover: on enclosure, 1 rear part: on enclosure, locking screws
Body typeOne piece moulded
Type of front coverHigh transparent cover
Lock typeSlot screw
Removable partsCover locking screw
MaterialCover: polycarbonate, Rear: polyester reinforced with fibreglass
ColourBody: grey (RAL 7035)
StandardsNEMA 4X, IEC 62208, NEMA classification 13
Product certificationsUL
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK09 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-30…70 °C

Packaging

Package 11 PCE, 28.500 cm × 28.500 cm × 19.000 cm (L × W × H), 1.973 kg
Package 280 PAM, 120.000 cm × 100.000 cm × 132.000 cm (L × W × H), 178.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLS2727AG: frequently asked questions

When can NSYPLS2727AG be shipped?

NSYPLS2727AG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLS2727AG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLS2727AG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLS2727AG, subject to availability and destination.

More Schneider Electric parts

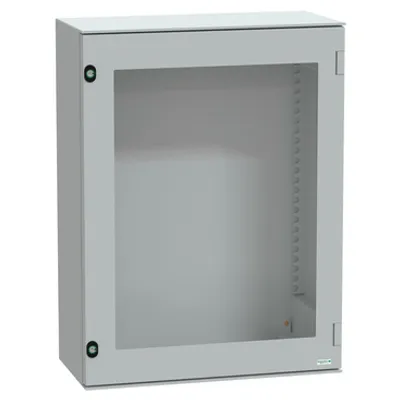

Schneider Electric NSYPLM86TG – Wall mounted polyester enclosure, PanelSeT PLM, glazed door, 847x636x300mm, IP66, IK08, RAL 7035
Schneider Electric
NSYPLM86TG

Wall mounted polyester enclosure, PanelSeT PLM, glazed door, 847x636x300mm, IP66, IK08, RAL 7035

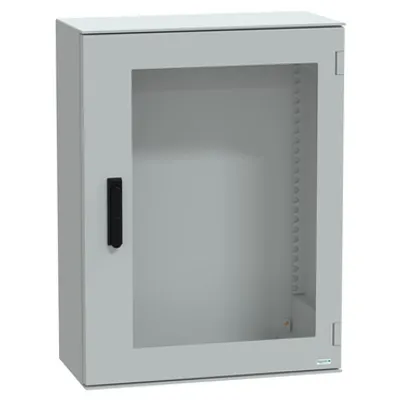

Schneider Electric NSYPLM86TVG – Wall mounted polyester enclosure, PanelSeT PLM, glazed door, with handle, 847x636x300mm, IP66, IK08, RAL 7035
Schneider Electric
NSYPLM86TVG

Wall mounted polyester enclosure, PanelSeT PLM, glazed door, with handle, 847x636x300mm, IP66, IK08, RAL 7035

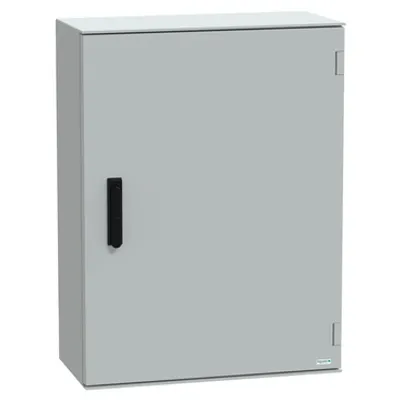

Schneider Electric NSYPLM86VG – Wall mounted polyester enclosure, PanelSeT PLM, plain door, with handle, 847x636x300mm, IP66, IK10, RAL 7035
