Schneider Electric NSYPLM810G

Landscape (Horizontal) enclosure polyester, PanelSeT PLM, IP66 H852xW1056xD350mm

MPN
NSYPLM810G
EAN
3606481085252
Category
PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

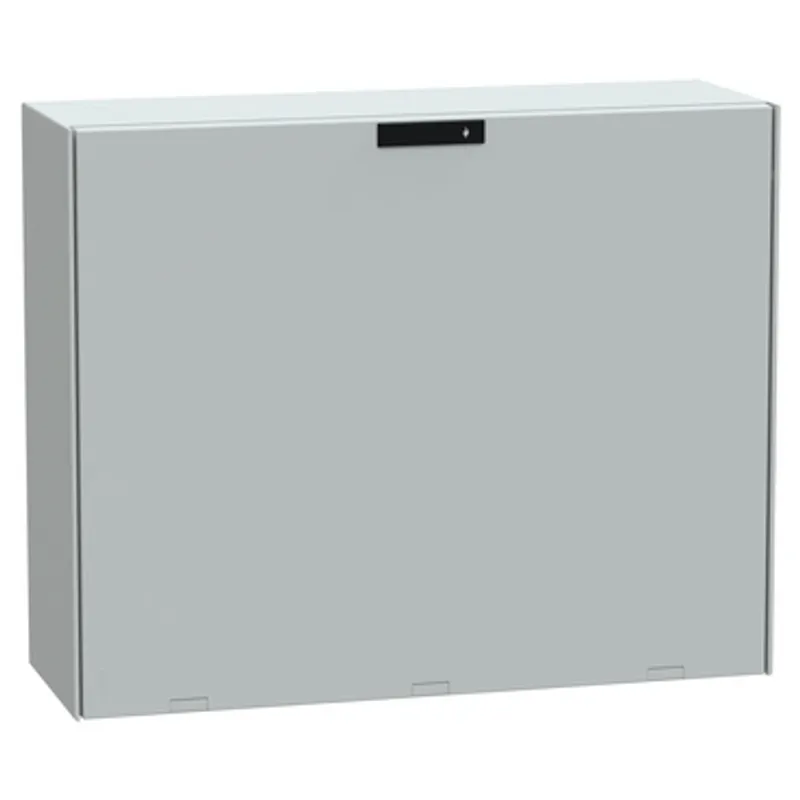

What is the Schneider Electric NSYPLM810G?

This PanelSeT PLM landscape (formerly PanelSeT PLM) enclosure comes in grey colour and it's designed for multi-purpose application and photovoltaic (Solar). It is composed of body, door, lock. Featuring a removable door by cut hinges. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The dimensions are (W) 1056 mm x (H) 852 mm x (D) 350 mm. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is suitable to build array combiner boxes. The enclosure is also fire resistant up to 960 °C (IEC 62208) and meets NEMA classification 13 and 4X standards, as well as IEC 62208.. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. It well satisfied the standard of IEC 62208, NEMA classification 13, NEMA classification 4X. This compact enclosure is BV, UL certified. Environmental compliant

Specifications

Specifications

RangePanelSeT
Device short namePLM
Enclosure typeMulti-purpose
CategoryCompact enclosure

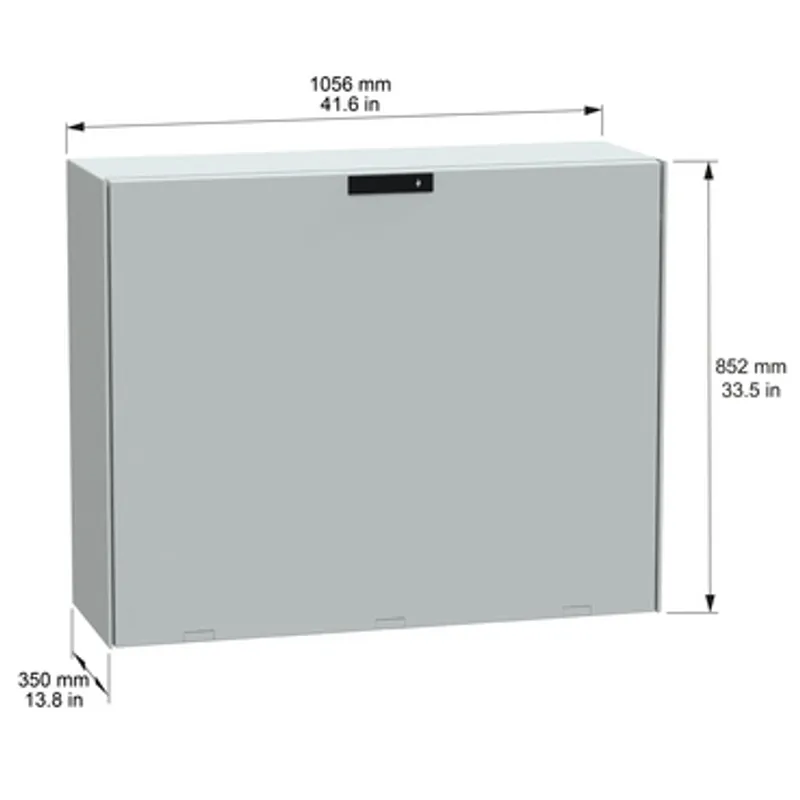

Nominal height852 mm
Nominal width1056 mm
Nominal depth350 mm
Enclosure mountingWall mounted
Installation directionHorizontal

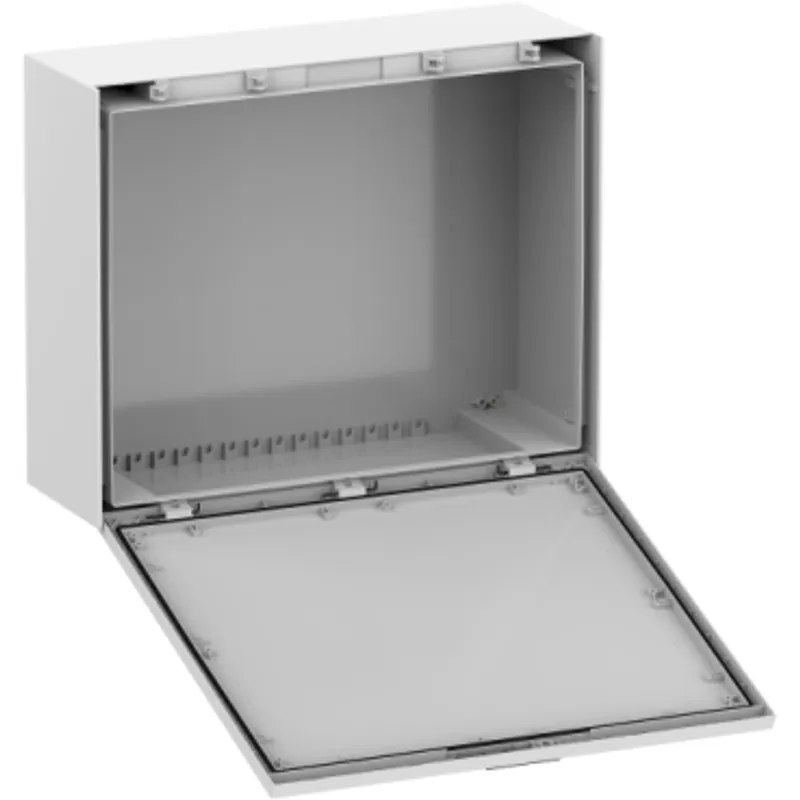

Device composition1 body, 1 door, 1 lock

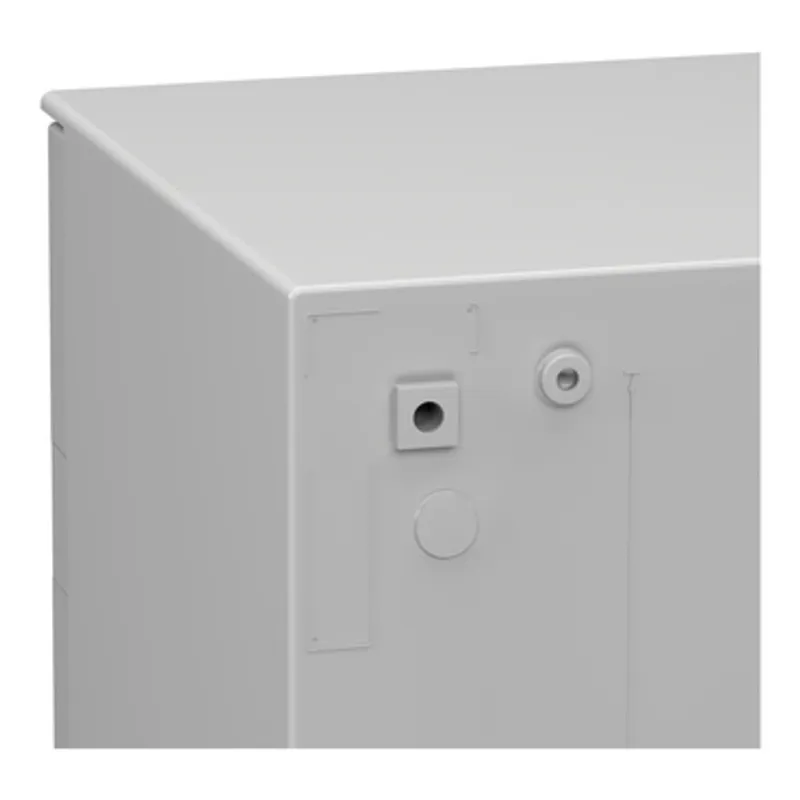

Body typeBuilt-in canopy, on lateral side, One piece moulded with notches in the rear
Door typePlain
Door opening sideDown
Lock type4 points lock, handle with 5 mm double bar insert
Number of locks1
Mounting plate descriptionWithout mounting plate
Accessibility for operationFront
Removable partsDoor by cut hinges
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsNEMA classification 13, IEC 62208, NEMA classification 4X
Product certificationsUL, BV
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for operation-40…80 °C

Packaging

Package 11 PCE, 87.500 cm × 38.000 cm × 113.000 cm (L × W × H), 31.000 kg
Package 24 PAM, 120.000 cm × 100.000 cm × 165.000 cm (L × W × H), 136.000 kg
