Wall mounted polyester enclosure, PanelSeT PLM, glazed door, with handle, 747x536x300mm, IP66, IK08, RAL 7035
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 15.98 kg |
Shipping & availability
When can NSYPLM75TVG be shipped?
NSYPLM75TVG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLM75TVG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLM75TVG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM75TVG, subject to availability and destination.

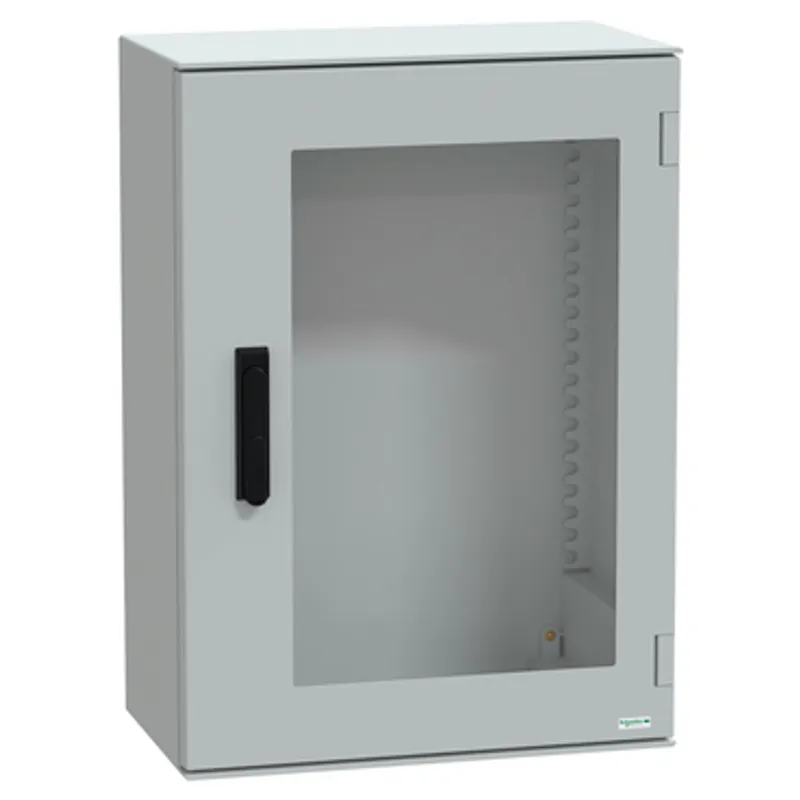

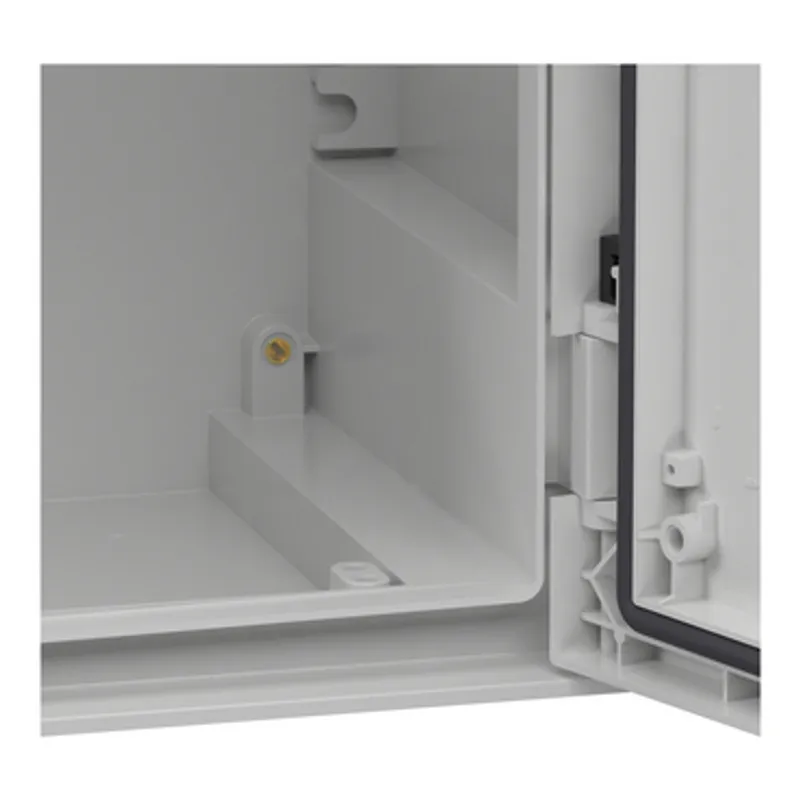

Thalassa PLM wall-mounting polyester enclosure monobloc w/glazed door. 747 x 536 x 300 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 points lock, handle with 1242E key lock). Accessible front. Polyester reinforced with fibreglass, tempered glass door. Grey RAL 7035. IP66, IK08, NEMA (13,4X) 960°C fire resistance.
Specifications
Specifications
| Range | PanelSeT |
| Device short name | PLM |
| Enclosure type | Multi-purpose |
| Category | Compact enclosure |

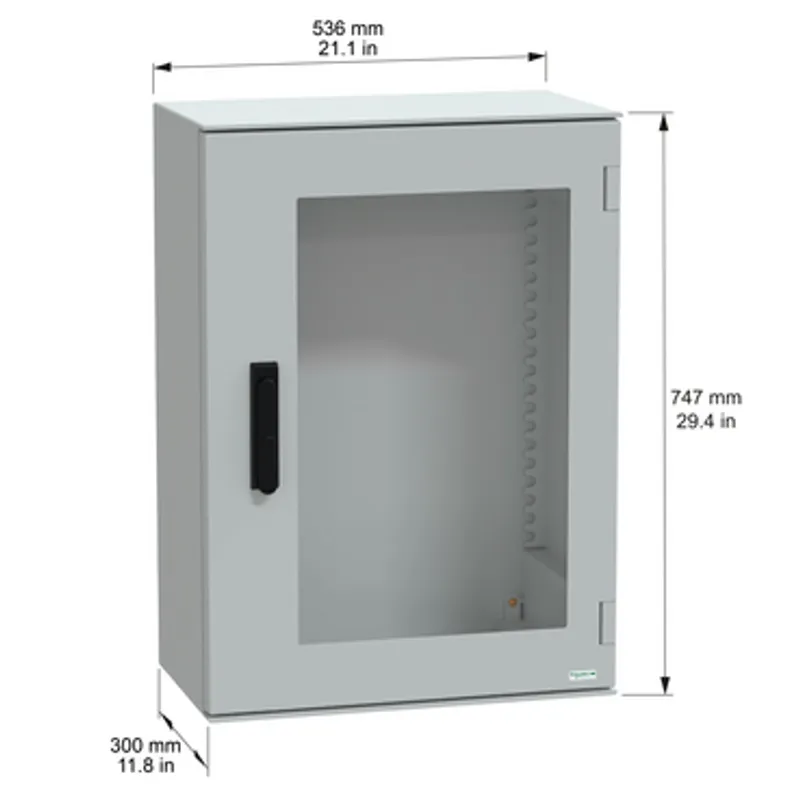

| Nominal height | 747 mm |
| Nominal width | 536 mm |
| Nominal depth | 300 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 door, 1 handle lock |
| Door type | Transparent |
| Lock type | 3 points lock, handle with 1242E key lock |
| Number of locks | 1 |
| Mounting plate description | Without mounting plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body: polyester reinforced with fibreglass, Door: tempered glass |
| Colour | Grey (RAL 7035) |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 34.000 cm |
| Package 1 Width | 56.000 cm |
| Package 1 Length | 81.000 cm |
| Package 1 Weight | 15.978 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 12 |
| Package 2 Height | 178.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 205.000 kg |
| Warranty | 18 months |
More Schneider Electric parts
Available on requestWall mounted polyester enclosure, PanelSeT PLM, plain door, with bakelite plate, 747x536x300mm, IP66, IK10, RAL 7035
Available on requestWall mounted polyester enclosure, PanelSeT PLM, plain door, 747x536x300mm, IP66, IK10, RAL 7035

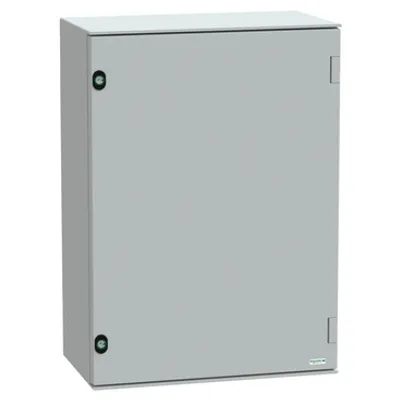

Available on requestWall mounted polyester enclosure, PanelSeT PLM, plain door, with metallic plate, 747x536x300mm, IP66, IK10, RAL 7035

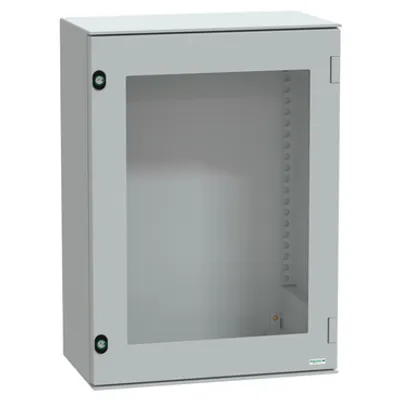

Available on requestWall mounted polyester enclosure, PanelSeT PLM, glazed door, 747x536x300mm, IP66, IK08, RAL 7035

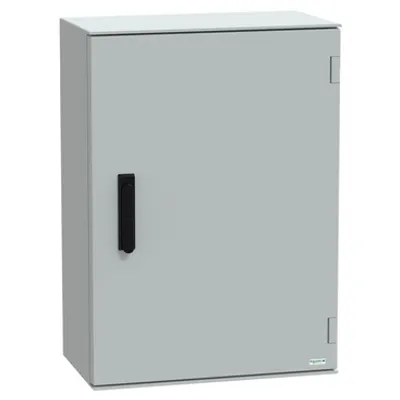

Available on requestWall mounted polyester enclosure, PanelSeT PLM, plain door, with handle, 747x536x300mm, IP66, IK10, RAL 7035

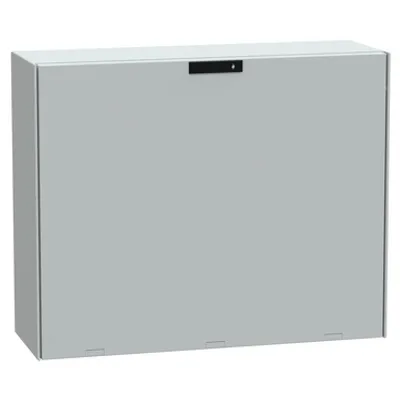

Available on requestLandscape (Horizontal) enclosure polyester, PanelSeT PLM, IP66 H852xW1056xD350mm

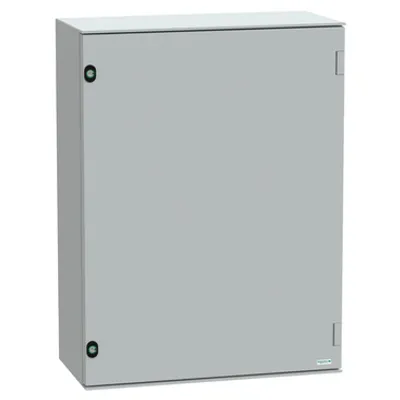

Available on requestWall mounted polyester enclosure, PanelSeT PLM, plain door, with bakelite plate, 847x636x300mm, IP66, IK10, RAL 7035
