Schneider Electric NSYPLM54BG

Wall mounted polyester enclosure, PanelSeT PLM, plain door, with bakelite plate, 530x430x200mm, IP66, IK10, RAL 7035

MPN
NSYPLM54BG
EAN
3606480776588
Category
PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLM54BG?

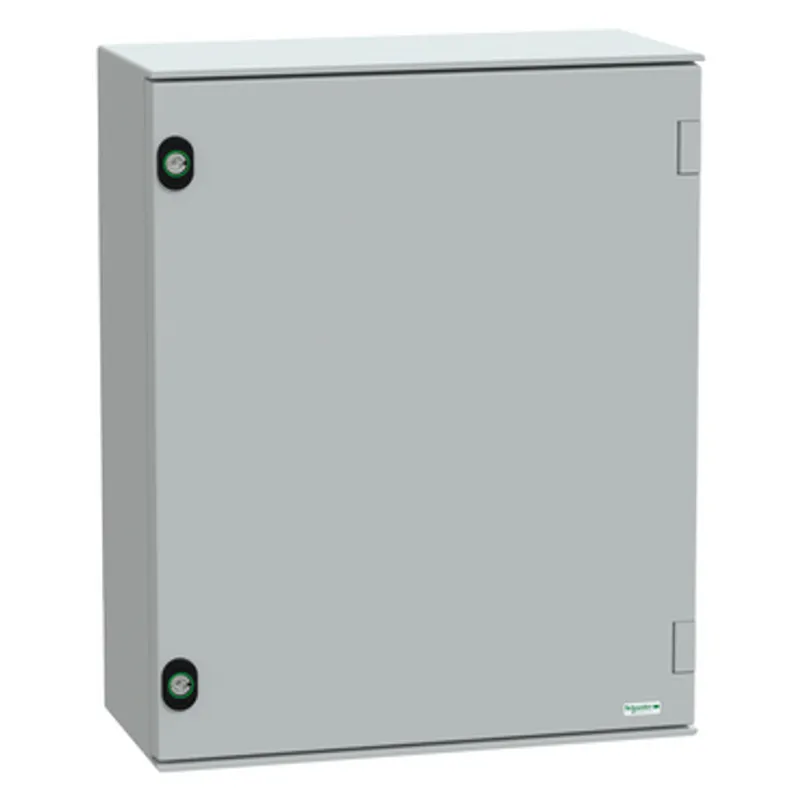

This PanelSeT PLM (formerly PanelSeT PLM) is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 530 mm, 430 mm, and 200 mm, respectively. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, one mounting plate, and two locks. The door is plain, and it can be opened from the front with two 3 mm double-bar locks. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK10 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The enclosure is also fire resistant up to 960 °C (IEC 62208) and meets NEMA classification 13 and 4X standards, as well as IEC 62208.

Specifications

Specifications

RangePanelSeT
Device short namePLM
Enclosure typeMulti-purpose
CategoryCompact enclosure

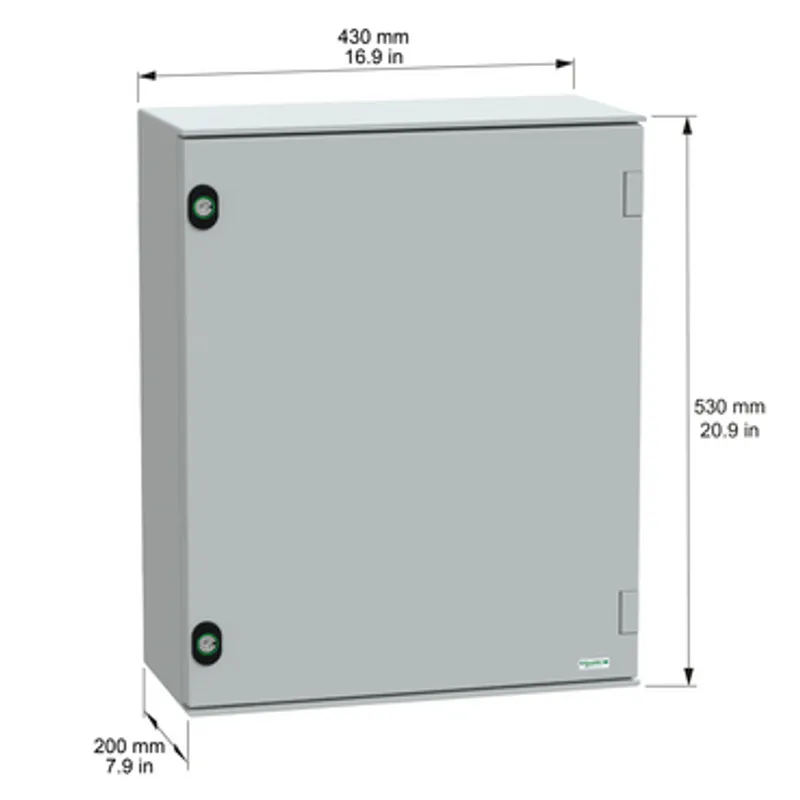

Nominal height530 mm
Nominal width430 mm
Nominal depth200 mm
Enclosure mountingWall mounted

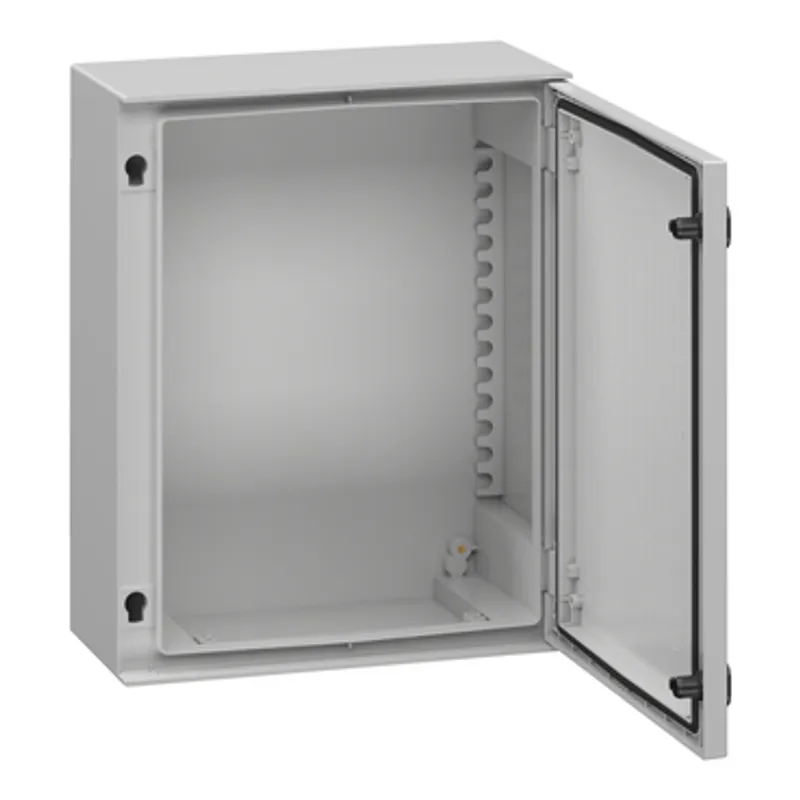

Device composition1 body, 1 door, 1 mounting plate, 2 lock
Door typePlain
Lock type3 mm double-bar lock
Number of locks2
Mounting plate descriptionPlain bakelite
Accessibility for operationFront
Removable partsDoor by hinges, Mounting plate by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsNEMA classification 4X, IEC 62208, NEMA classification 13
Product certificationsUL
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK10 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for operation-40…80 °C

Packaging

Package 11 PCE, 23.000 cm × 45.500 cm × 59.000 cm (L × W × H), 8.220 kg
Package 230 PAM, 120.000 cm × 100.000 cm × 193.000 cm (L × W × H), 260.000 kg
