Schneider Electric NSYPLM43TVG

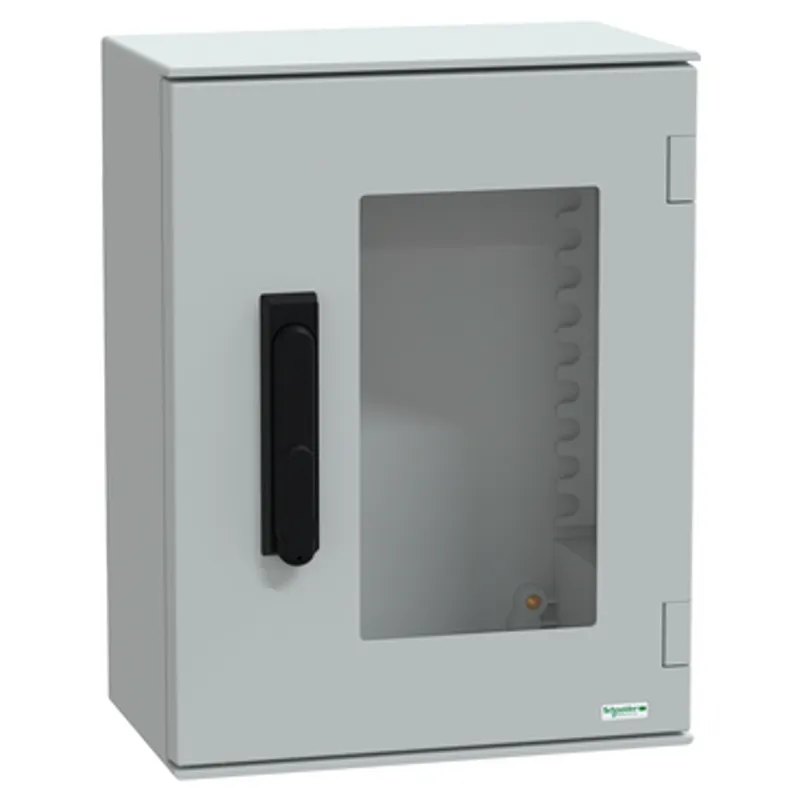

Wall mounted polyester enclosure, PanelSeT PLM, glazed door, with handle, 430x330x200mm, IP66, IK08, RAL 7035

MPN
NSYPLM43TVG
EAN
3606480776557
Category
PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLM43TVG?

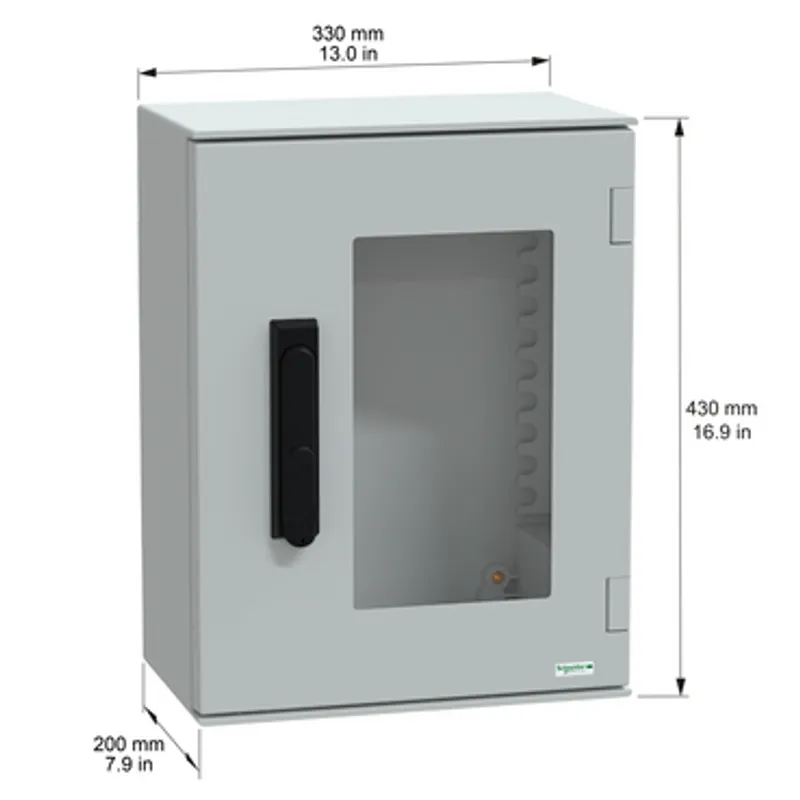

This PanelSeT PLM (formerly PanelSeT PLM) is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 430 mm, 330 mm, and 200 mm, respectively. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, and one handle lock. The door is transparent and can be opened from the front with a 3 points handle. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK08 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure can be used in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The enclosure is also fire resistant up to 960 °C.

Specifications

Specifications

RangePanelSeT
Device short namePLM
Enclosure typeMulti-purpose
CategoryCompact enclosure
Nominal height430 mm
Nominal width330 mm
Nominal depth200 mm
Enclosure mountingWall mounted
Device composition1 body, 1 door, 1 handle lock
Door typeTransparent
Lock type3 points lock, handle with 1242E key lock
Number of locks1
Mounting plate descriptionWithout mounting plate
Accessibility for operationFront
Removable partsDoor by hinges
MaterialBody: polyester reinforced with fibreglass, Door: tempered glass
ColourGrey (RAL 7035)
Electrical insulation classClass II
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK08 conforming to IEC 62262
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for operation-40…80 °C

Packaging

Package 11 PCE, 46.0 cm × 35.0 cm × 23.0 cm (L × W × H), 6.305 kg
Package 250 PAM, 188 cm × 100 cm × 120 cm (L × W × H), 335 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLM43TVG: frequently asked questions

When can NSYPLM43TVG be shipped?

NSYPLM43TVG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLM43TVG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLM43TVG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM43TVG, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYPLM43BG – Wall mounted polyester enclosure, PanelSeT PLM, plain door, with bakelite plate, 430x330x200mm, IP66, IK10, RAL 7035
Schneider Electric
NSYPLM43BG

Wall mounted polyester enclosure, PanelSeT PLM, plain door, with bakelite plate, 430x330x200mm, IP66, IK10, RAL 7035

Schneider Electric NSYPLM43G – Wall mounted polyester enclosure, PanelSeT PLM, plain door, 430x330x200mm, IP66, IK10, RAL 7035
Schneider Electric
NSYPLM43G

Wall mounted polyester enclosure, PanelSeT PLM, plain door, 430x330x200mm, IP66, IK10, RAL 7035

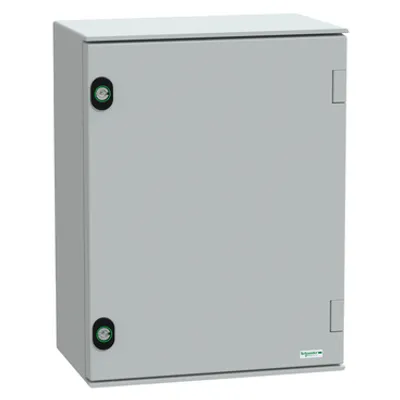

Schneider Electric NSYPLM43PG – Wall mounted polyester enclosure, PanelSeT PLM, plain door, with metallic plate, 430x330x200mm, IP66, IK10, RAL 7035
Schneider Electric
NSYPLM43PG

Wall mounted polyester enclosure, PanelSeT PLM, plain door, with metallic plate, 430x330x200mm, IP66, IK10, RAL 7035

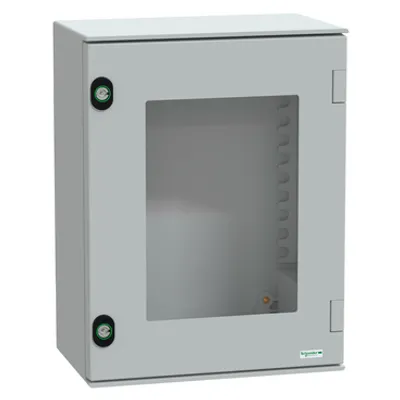

Schneider Electric NSYPLM43TG – Wall mounted polyester enclosure, PanelSeT PLM, glazed door, 430x330x200mm, IP66, IK08, RAL 7035
Schneider Electric
NSYPLM43TG

Wall mounted polyester enclosure, PanelSeT PLM, glazed door, 430x330x200mm, IP66, IK08, RAL 7035

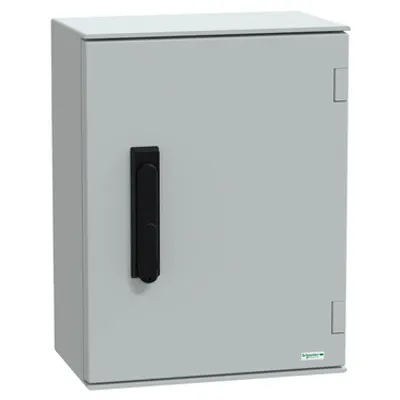

Schneider Electric NSYPLM43VG – Wall mounted polyester enclosure, PanelSeT PLM, plain door, with handle, 430x330x200mm, IP66, IK10, RAL 7035
