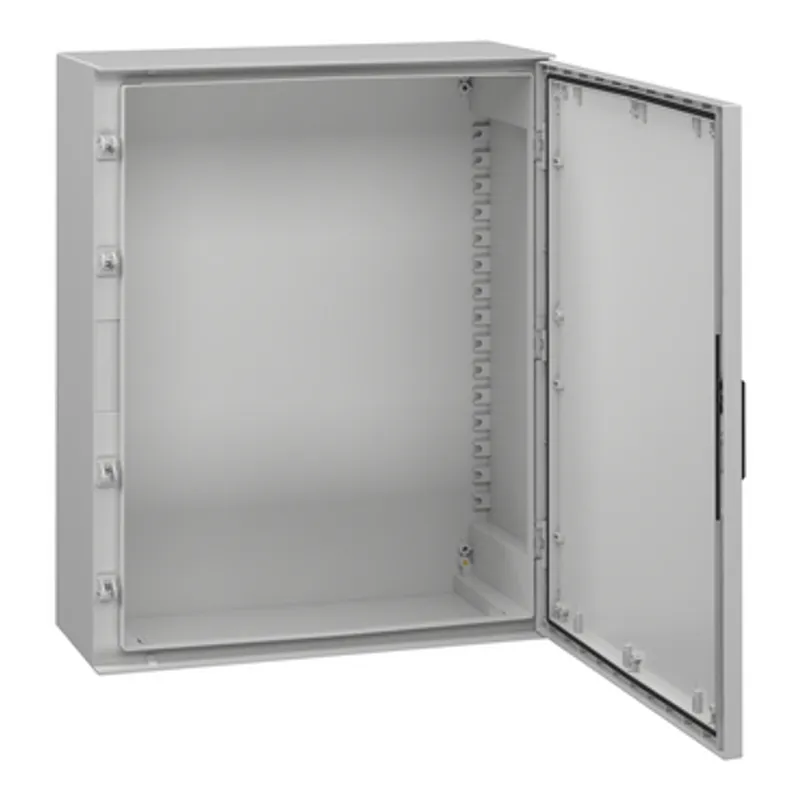

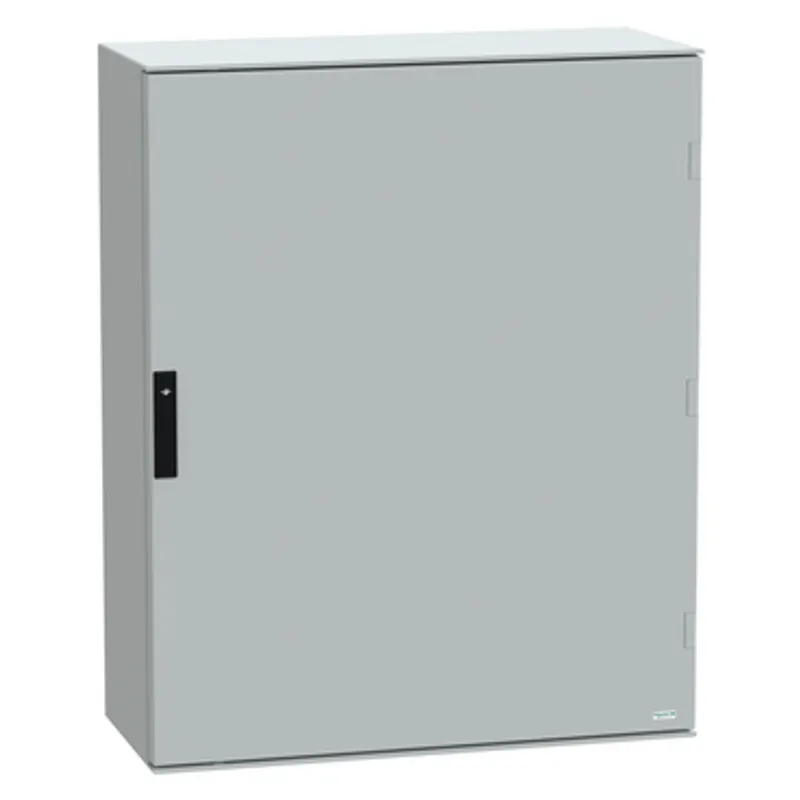

Wall mounted polyester enclosure, PanelSeT PLM, plain door, with bakelite plate, 1056x852x350mm, IP66, IK10, RAL 7035
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT PLM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 35 kg |
Shipping & availability
When can NSYPLM108BG be shipped?
NSYPLM108BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPLM108BG in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPLM108BG and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLM108BG, subject to availability and destination.
Schneider Electric Wall mounted polyester enclosure, PanelSeT PLM, plain door, with bakelite plate, 1056x852x350mm, IP66, IK10, RAL 7035, manufacturer part number NSYPLM108BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Device short name | PLM |
| Enclosure type | Multi-purpose |
| Category | Compact enclosure |

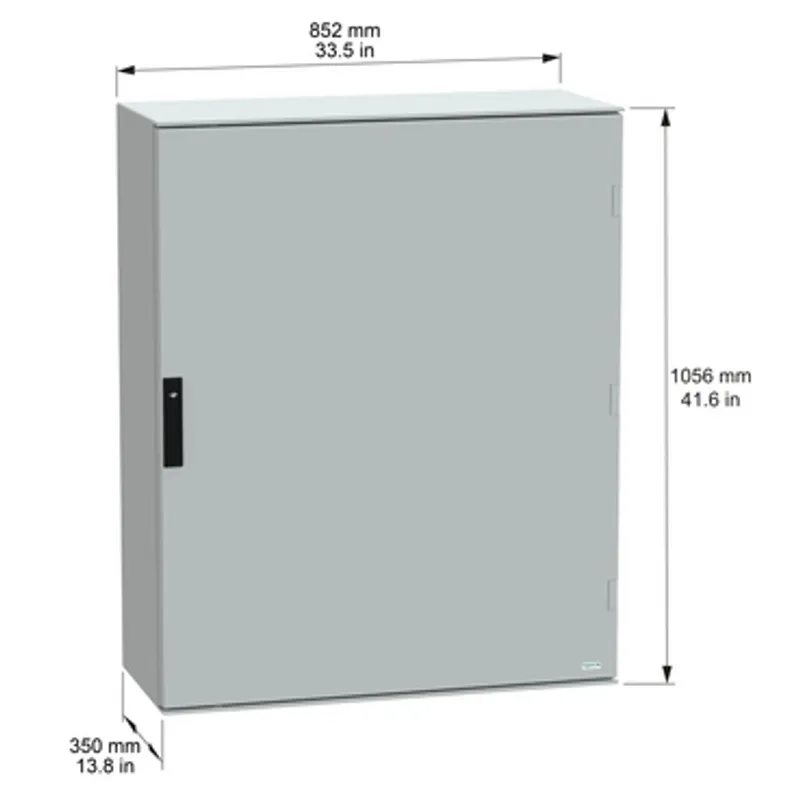

| Nominal height | 1056 mm |
| Nominal width | 852 mm |
| Nominal depth | 350 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 door, 1 lock, 1 mounting plate |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Number of locks | 1 |
| Mounting plate description | Plain bakelite |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Mounting plate by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | NEMA classification 13, NEMA classification 4X, IEC 62208 |
| Product certifications | UL |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation | -40…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 38.000 cm |
| Package 1 Width | 87.000 cm |
| Package 1 Length | 113.000 cm |
| Package 1 Weight | 35.000 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 4 |
| Package 2 Height | 166.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 153.000 kg |
| Warranty | 18 months |
More Schneider Electric parts
Available on requestFloor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 750x750x320mm, IP44, IK10

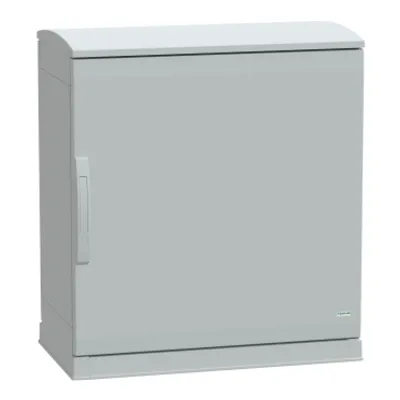

Available on requestFloor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 750x750x420mm, IP44, IK10
Available on requestFloor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 750x750x620mm, IP44, IK10
Available on requestPanelSeT PHD - Set of 4 lifting eyes M12. Maximum load: 500kg
Available on requestWall mounted polyester enclosure, PanelSeT PLM, plain door, 1056x852x350mm, IP66, IK10, RAL 7035

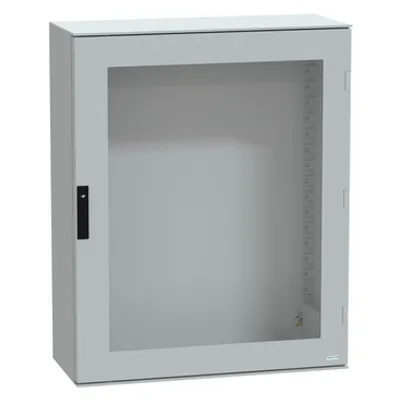

Available on requestWall mounted polyester enclosure, PanelSeT PLM, glazed door, 1056x852x350mm, IP66, IK08, RAL 7035
