Schneider Electric NSYPLAZT776G

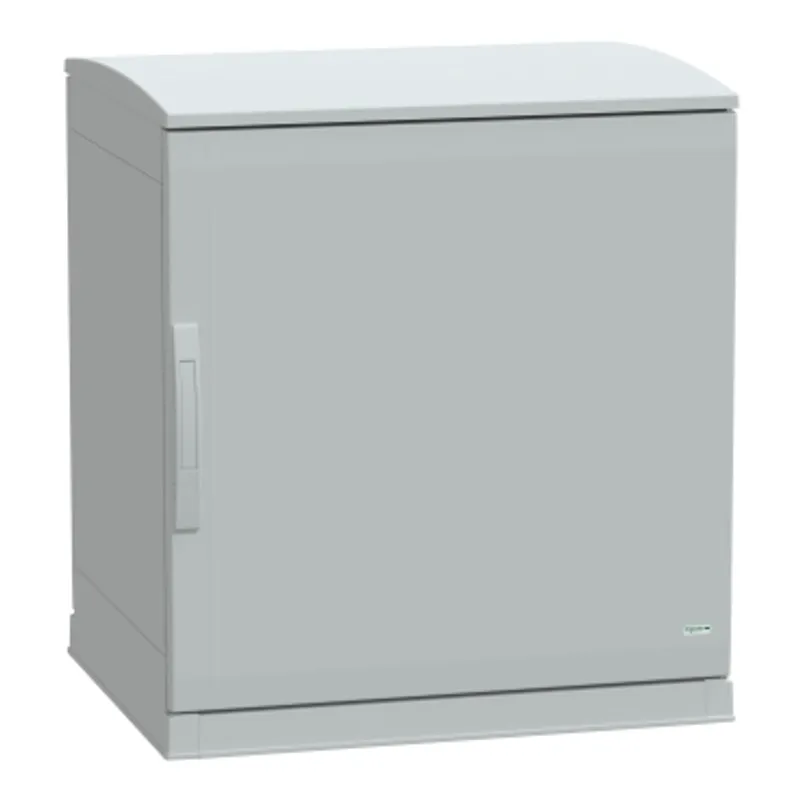

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 750x750x620mm, IP44, IK10

MPN
NSYPLAZT776G
EAN
3606480772863
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYPLAZT776G (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAZT776G?

This PLAZT version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It measures 750mm in height, 750mm in width, and 620mm in depth, and is made of polyester reinforced with fiberglass to ensure durability and resistance to harsh environments, both indoor and outdoor The enclosure is available in grey (RAL 7035) and consists of two side parts, one plain front door, one rear panel, and one canopy The front door is designed to open up to 180° from either the right or left side, providing easy access to the equipment inside The door features a two-point handle lock with a 5mm double-bar insert The rear panel and door can be removed for maintenance purposes, and the canopy can also be removed by fixing elements to provide access to the top of the enclosure The enclosure offers robust protection against various hazards, including fire, impact, dust, and water It can withstand fire up to 960°C in accordance with the IEC 62208 standard The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts It is rated IP44 (IEC 60529), offering high protection against dust and water Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAZT
Nominal height750 mm
Nominal width750 mm
Nominal depth620 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 canopy, 1 plinth
Body typeOpen top and bottom part assembled with side parts
Door typePlain front
Number of doors1 door(s)
Door opening sideReversible (180 °)
Lock type2 points handle lock, 5 mm double-bar
Accessibility for operationBottom, Rear, Top, Front
Removable partsDoor by hinges, Rear panel by fixing element, Canopy by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 86.000 cm × 77.000 cm × 65.000 cm (L × W × H), 36.000 kg
Package 22 PAM, 120.000 cm × 100.000 cm × 190.000 cm (L × W × H), 84.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLAZT776G: frequently asked questions

Can I still buy the NSYPLAZT776G now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYPLAZT776G, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYPLAZT776G be shipped?

NSYPLAZT776G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLAZT776G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLAZT776G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZT776G, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYPLAZT753G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 750x500x320mm, IP44, IK10
Schneider Electric
NSYPLAZT753G

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 750x500x320mm, IP44, IK10

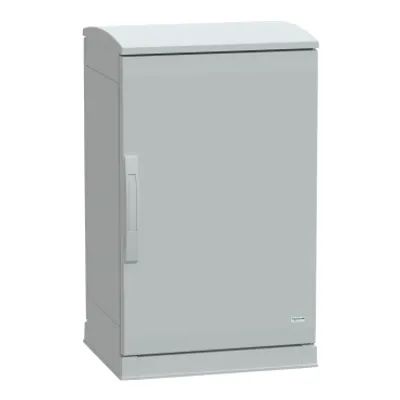

Schneider Electric NSYPLAZT754G – Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 750x500x420mm, IP44, IK10
