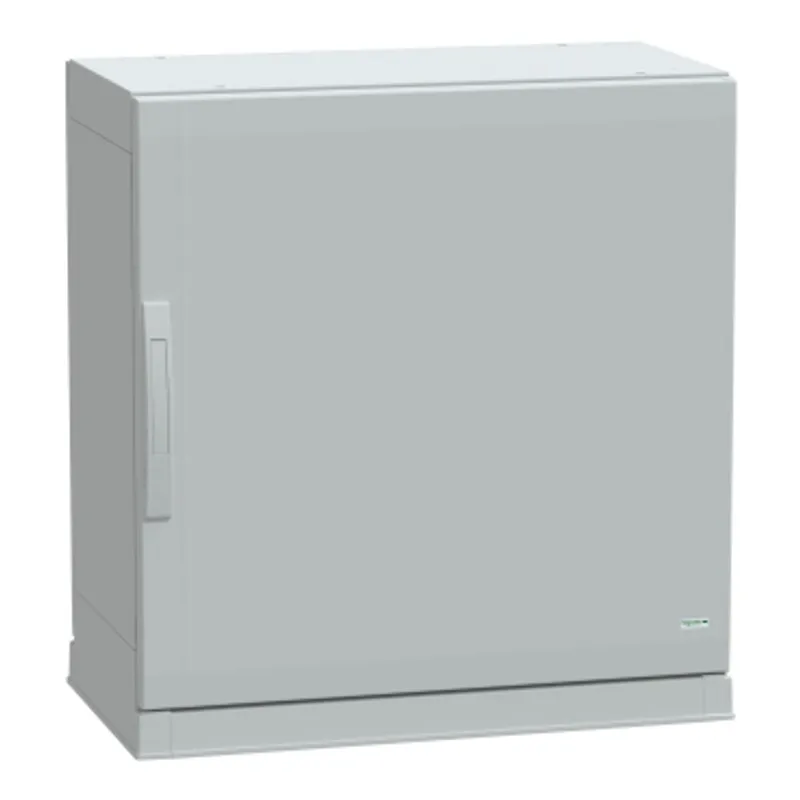

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 750x750x420mm, IP54, IK10

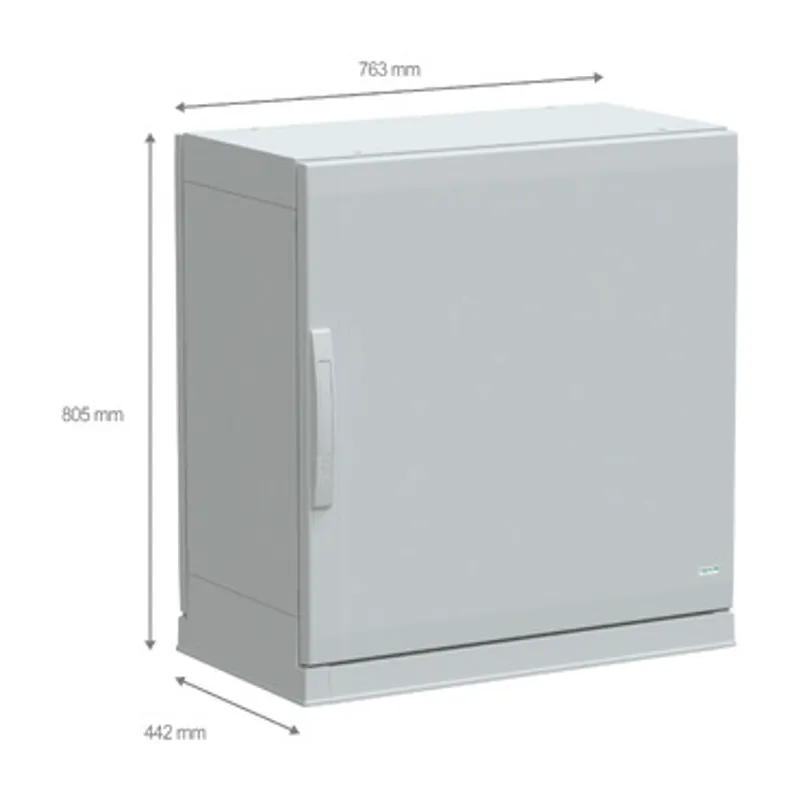

"This PLAZ version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "It has a nominal height of 750mm, a width of 750mm, and a depth of 420mm" "It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "It consists of one top part, one bottom part, two side parts, one rear panel, one plain front door, and one plinth" "The door is designed to open up to 120° from either the right or left side, providing easy access to the equipment inside" "The door is equipped with a two-point handle lock and a 5mm double-bar" "The rear panel and door can also be removed for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C, in accordance with the IEC 62208 standard" "The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP54 (IEC 60529), offering high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLAZ |
| Nominal height | 750 mm |
| Nominal width | 750 mm |
| Nominal depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 plinth |
| Body type | Sealed top and open bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points handle lock, 5 mm double-bar |
| Accessibility for operation | Front, Bottom, Rear |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP54 conforming to IEC 60529 (plinth type open bottom) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Package 1 | 1 PCE, 83.000 cm × 78.000 cm × 46.000 cm (L × W × H), 26.000 kg |
| Package 2 | 4 PAM, 120.000 cm × 100.000 cm × 177.000 cm (L × W × H), 116.000 kg |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
NSYPLAZ774G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for NSYPLAZ774G and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZ774G, subject to availability and destination.

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 750x1250x420mm, IP54, IK10

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 750x500x320mm, IP54, IK10

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 750x500x420mm, IP54, IK10

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 750x750x320mm, IP54, IK10

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 750x750x620mm, IP54, IK10

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x1000x320mm, IP44, IK10

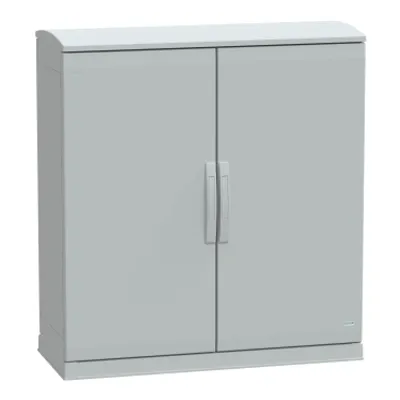

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x1000x420mm, IP44, IK10

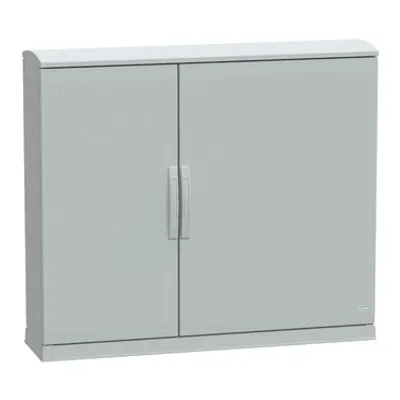

Floor standing polyester enclosure, PanelSeT PLA, open bottom, ventilated canopy, 1000x1250x320mm, IP44, IK10
