Schneider Electric NSYPLAZ753G

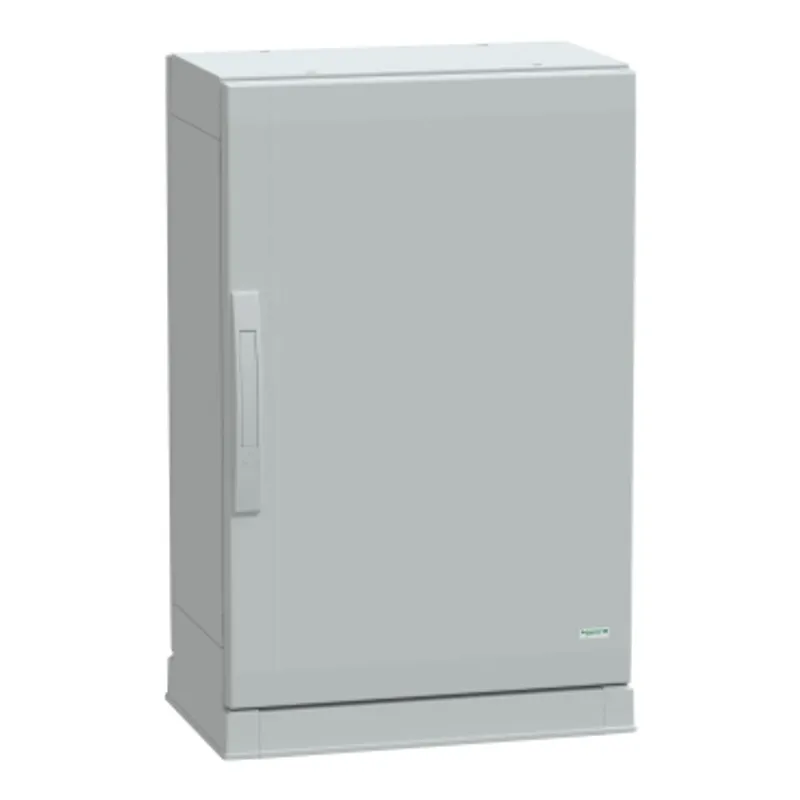

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 750x500x320mm, IP54, IK10

MPN
NSYPLAZ753G
EAN
3606480775918
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAZ753G?

This PLAZ version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications It comes with a sealed top and an open bottom, assembled with side parts The enclosure has nominal dimensions of 750mm in height, 500mm in width, and 320mm in depth It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings The enclosure is available in grey (RAL 7035) It consists of two side parts, one plain front door, one rear panel, and one plinth

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAZ
Nominal height750 mm
Nominal width500 mm
Nominal depth320 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 plinth
Body typeSealed top and open bottom part assembled with side parts
Door typePlain front
Number of doors1 door(s)
Door opening sideReversible (120 °)
Lock type2 points handle lock, 5 mm double-bar
Accessibility for operationRear, Front, Bottom
Removable partsDoor by hinges, Rear panel by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP54 conforming to IEC 60529 (plinth type open bottom)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 81.000 cm × 54.000 cm × 36.000 cm (L × W × H), 19.800 kg
Package 210 PAM, 120.000 cm × 100.000 cm × 176.000 cm (L × W × H), 211.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLAZ753G: frequently asked questions

When can NSYPLAZ753G be shipped?

NSYPLAZ753G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLAZ753G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLAZ753G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZ753G, subject to availability and destination.
