Schneider Electric NSYPLAZ574G

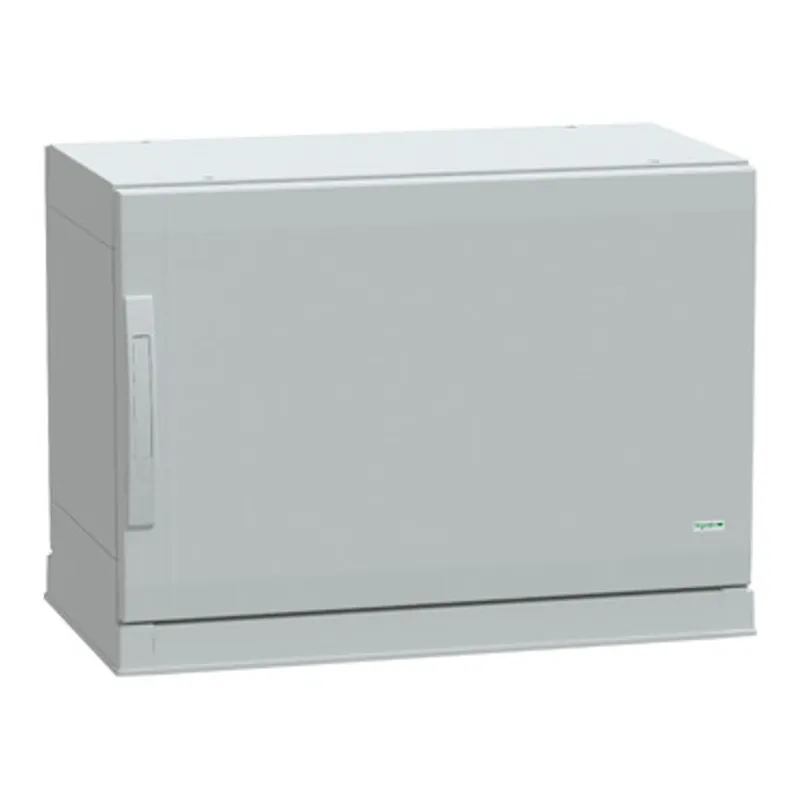

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 500x750x420mm, IP54, IK10

MPN
NSYPLAZ574G
EAN
3606480775864
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAZ574G?

Schneider Electric Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 500x750x420mm, IP54, IK10, manufacturer part number NSYPLAZ574G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAZ
Nominal height500 mm
Nominal width750 mm
Nominal depth420 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 plinth
Body typeSealed top and open bottom part assembled with side parts
Door typePlain front
Number of doors1 door(s)
Door opening sideReversible (120 °)
Lock type2 points handle lock, 5 mm double-bar
Accessibility for operationRear, Bottom, Front
Removable partsDoor by hinges, Rear panel by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP54 conforming to IEC 60529 (plinth type open bottom)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 78.500 cm × 57.000 cm × 46.000 cm (L × W × H), 21.800 kg
Package 26 PAM, 120.000 cm × 100.000 cm × 129.000 cm (L × W × H), 143.000 kg
