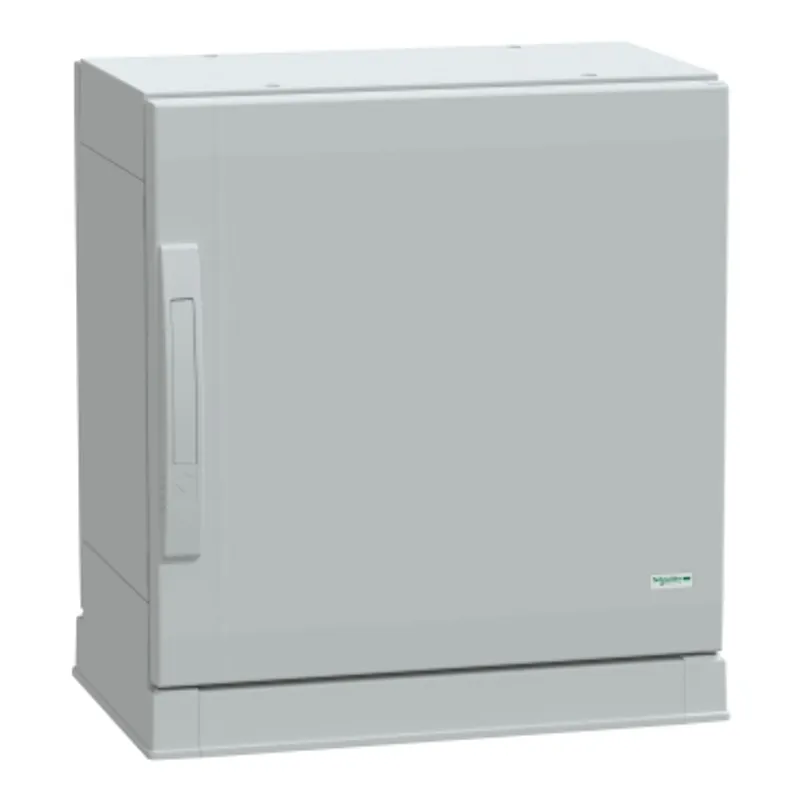

Schneider Electric NSYPLAZ553G

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 500x500x320mm, IP54, IK10

MPN
NSYPLAZ553G
EAN
3606480775833
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAZ553G?

"This PLAZ version of the PLA is a versatile, floor-standing enclosure that is suitable for various applications" "It comes with a sealed top and an open bottom, assembled with side parts" "The enclosure has nominal dimensions of 500mm in height, 500mm in width, and 320mm in depth" "It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "Consisting of two side parts, one plain front door, one rear panel, and one plinth, the enclosure is designed for easy access to the equipment inside" "The door can be opened from either the right or left side, up to 120°, and features a two-point handle lock with a 5mm double-bar insert" "The door and rear panel are also removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP54 (IEC 60529), offering high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAZ
Nominal height500 mm
Nominal width500 mm
Nominal depth320 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 plinth
Body typeSealed top and open bottom part assembled with side parts
Door typePlain front
Number of doors1 door(s)
Door opening sideReversible (120 °)
Lock type2 points handle lock, 5 mm double-bar
Accessibility for operationBottom, Front, Rear
Removable partsDoor by hinges, Rear panel by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP54 conforming to IEC 60529 (plinth type open bottom)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 64.000 cm × 56.000 cm × 38.000 cm (L × W × H), 16.000 kg
Package 215 PAM, 120.000 cm × 100.000 cm × 185.000 cm (L × W × H), 253.000 kg
