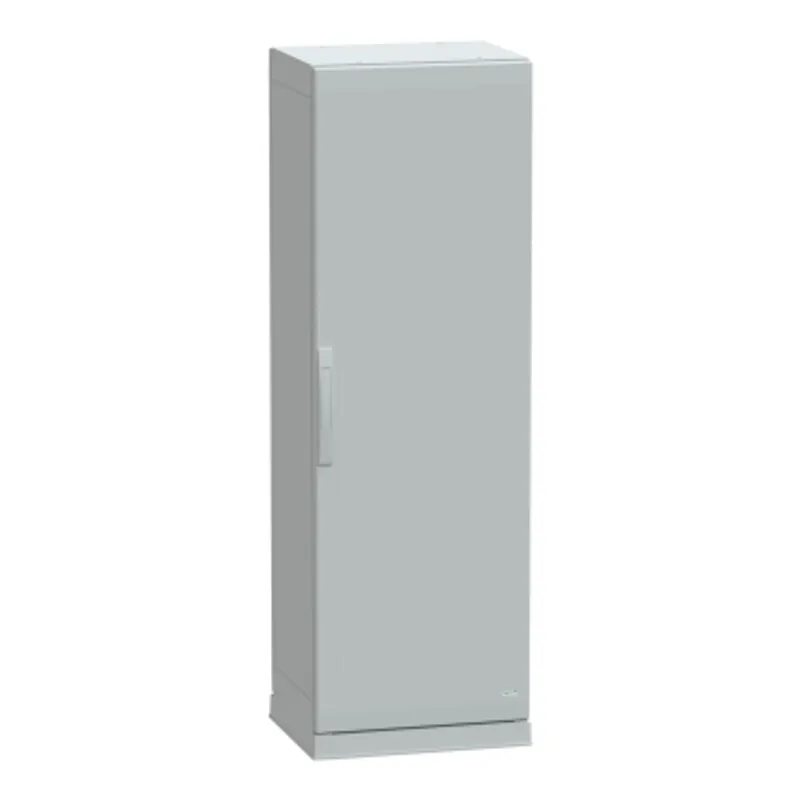

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 1500x500x420mm, IP54, IK10
"This PLAZ version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications" "The enclosure measures 1500mm in height, 500mm in width, and 420mm in depth" "It is made of polyester reinforced with fiberglass, offering durability and resistance to harsh environments, including outdoor and industrial settings" "The enclosure is available in grey (RAL 7035)" "It comprises one top part, one bottom part, two side parts, one rear panel, one plain front door, and one plinth" "The door can be opened from either the right or left side, up to 120°, and features a four-point lock with a handle that has a 5mm double-bar insert" "The door and rear panel are removable for maintenance purposes" "The enclosure offers robust protection against various hazards, including fire, impact, dust, and water" "It can withstand fire up to 960°C in accordance with the IEC 62208 standard" "The enclosure also has an IK10 rating (IEC 62262), indicating high resistance to impacts" "It is rated IP54 (IEC 60529), offering high protection against dust and water" "Additionally, the enclosure has class II electrical insulation to prevent electric shocks and allow for the building of totally insulated solutions" "It is UL certified and can be stored in ambient air temperatures ranging from -35°C to 90°C without affecting its performance"
| Range | PanelSeT |
| Product name | PanelSeT PLA |
| Enclosure type | Multi-purpose |
| Product or component type | Suitable enclosure |
| Version | PLAZ |
| Nominal height | 1500 mm |
| Nominal width | 500 mm |
| Nominal depth | 420 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 top part, 1 bottom part, 2 side part, 1 rear panel, 1 door, 1 plinth |
| Body type | Sealed top and open bottom part assembled with side parts |
| Door type | Plain front |
| Number of doors | 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Accessibility for operation | Front, Rear, Bottom |
| Removable parts | Door by hinges, Rear panel by fixing element |
| Material | Polyester reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | Veritas |
| Electrical insulation class | Class II |
| IP degree of protection | IP54 conforming to IEC 60529 (plinth type open bottom) |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for storage | -35…90 °C |
| Package 1 | 1 PCE, 157.000 cm × 54.000 cm × 48.000 cm (L × W × H), 35.800 kg |
| Package 2 | 4 PAM, 120.000 cm × 100.000 cm × 171.000 cm (L × W × H), 156.200 kg |
