Schneider Electric NSYPLAZ15124G

Floor standing polyester enclosure, PanelSeT PLA, plain door, open bottom, 1500x1250x420mm, IP54, IK10

MPN
NSYPLAZ15124G
EAN
3606480775741
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLAZ15124G?

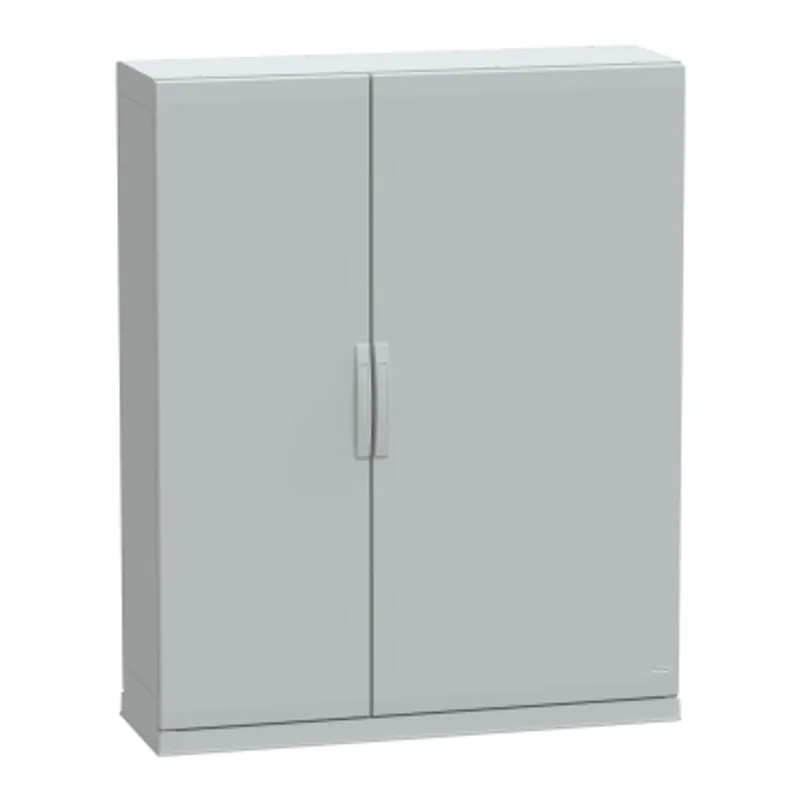

This PLAZ version of the PLA is a multi-purpose, floor-standing enclosure that is suitable for various applications It has a nominal height of 1500mm, a width of 1250mm, and a depth of 420mm The enclosure is made of polyester reinforced with fiberglass, giving it durability and resistance to harsh environments, such as outdoor and industrial settings It is available in grey (RAL 7035) and comprises two side parts, two plain front doors, two rear panels, and one plinth The doors can be opened from both the right and left sides, up to 120°, and feature a four-point lock with a handle that has a 5mm double-bar insert The doors and rear panels are removable for maintenance purposes

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLAZ
Nominal height1500 mm
Nominal width1250 mm
Nominal depth420 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel, 1 plinth
Body typeSealed top and open bottom part assembled with side parts
Door typePlain front
Number of doors2 door(s)
Door opening sideRight and left (120 °)
Lock type4 points lock, handle with 5 mm double bar insert
Accessibility for operationBottom, Rear, Front
Removable partsDoor by hinges, Rear panel by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsIEC 62208
Product certificationsVeritas
Electrical insulation classClass II
IP degree of protectionIP54 conforming to IEC 60529 (plinth type open bottom)
IK degree of protectionIK10 conforming to IEC 62262 (plain door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 156.500 cm × 129.000 cm × 46.000 cm (L × W × H), 70.800 kg
Package 22 PAL, 130.000 cm × 100.000 cm × 170.000 cm (L × W × H), 157.400 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLAZ15124G: frequently asked questions

When can NSYPLAZ15124G be shipped?

NSYPLAZ15124G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLAZ15124G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLAZ15124G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLAZ15124G, subject to availability and destination.
