Schneider Electric NSYPLA12126TG

Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely , 1250x1250x620mm, IP65, IK08

MPN
NSYPLA12126TG
EAN
3606485434483
Category
PanelSeT PLA
Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYPLA12126TG (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYPLA12126TG?

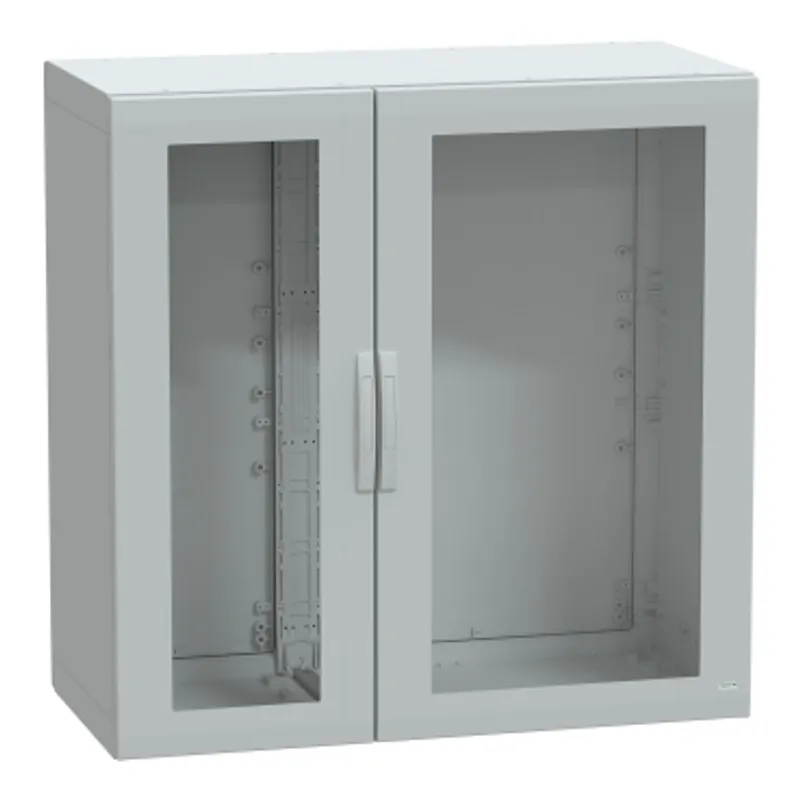

Schneider Electric Floor standing polyester enclosure, PanelSeT PLA, glazed door, completely sealed, 1250x1250x620mm, IP65, IK08, manufacturer part number NSYPLA12126TG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT PLA
Enclosure typeMulti-purpose
Product or component typeSuitable enclosure
VersionPLA
Nominal height1250 mm
Nominal width1250 mm
Nominal depth620 mm
Enclosure mountingFloor-standing
Device composition1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel
Body typeSealed top and bottom part assembled with side parts
Door typeTransparent front
Number of doors2 door(s)
Door opening sideRight and left (120 °)
Lock type4 points lock, 5 mm double-bar
Accessibility for operationFront, Rear
Removable partsDoor by hinges, Rear panel by fixing element
MaterialPolyester reinforced with fibreglass
ColourGrey (RAL 7035)
StandardsUL 508 A, IEC 62208
NEMA degree of protectionNEMA 2, NEMA 12, NEMA 1, NEMA 13
Product certificationsDNV Marine, UL/cUL listed, Veritas
Electrical insulation classClass II
IP degree of protectionIP65 conforming to IEC 60529 (completely sealed)
IK degree of protectionIK08 conforming to IEC 62262 (glazed door)
Fire resistance960 °C conforming to IEC 62208
Ambient air temperature for storage-35…90 °C

Packaging

Package 11 PCE, 68.000 cm × 128.000 cm × 128.000 cm (L × W × H), 76.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYPLA12126TG: frequently asked questions

Can I still buy the NSYPLA12126TG now that it is discontinued?

Yes. Schneider Electric has discontinued the NSYPLA12126TG, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can NSYPLA12126TG be shipped?

NSYPLA12126TG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLA12126TG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLA12126TG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA12126TG, subject to availability and destination.
