Home / Schneider Electric / Floor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1250x1250x620mm, IP65, IK10

Available on request

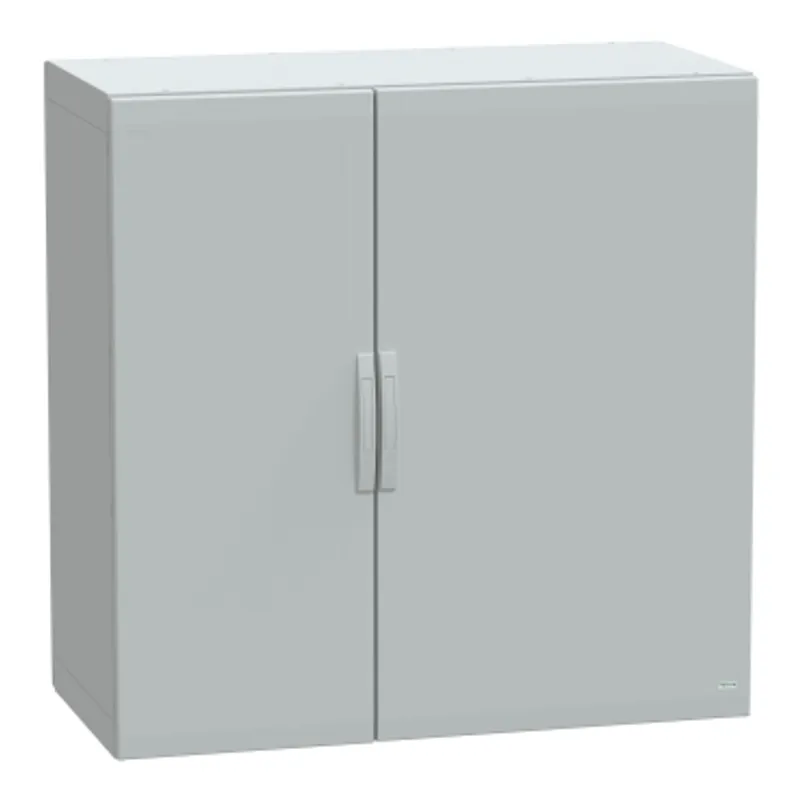

Floor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1250x1250x620mm, IP65, IK10

Name: Schneider Electric NSYPLA12126G – Floor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1250x1250x620mm, IP65, IK10
Brand: Schneider Electric
SKU: NSYPLA12126G

MPN: NSYPLA12126G · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	PanelSeT PLA
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	72 kg

Shipping & availability

When can NSYPLA12126G be shipped?

NSYPLA12126G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYPLA12126G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYPLA12126G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPLA12126G, subject to availability and destination.

Schneider Electric Floor standing polyester enclosure, PanelSeT PLA, plain door, completely sealed, 1250x1250x620mm, IP65, IK10, manufacturer part number NSYPLA12126G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Range	PanelSeT
Product name	PanelSeT PLA
Enclosure type	Multi-purpose
Product or component type	Suitable enclosure
Version	PLA
Nominal height	1250 mm
Nominal width	1250 mm
Nominal depth	620 mm
Enclosure mounting	Floor-standing
Device composition	1 top part, 1 bottom part, 2 side part, 2 door, 2 rear panel
Body type	Sealed top and bottom part assembled with side parts
Door type	Plain front
Number of doors	2 door(s)
Door opening side	Right and left (120 °)
Lock type	4 points lock, 5 mm double-bar
Accessibility for operation	Rear, Front
Removable parts	Door by hinges, Rear panel by fixing element
Material	Polyester reinforced with fibreglass
Colour	Grey (RAL 7035)
Standards	IEC 62208, UL 508 A
NEMA degree of protection	NEMA 13, NEMA 12, NEMA 2, NEMA 1
Product certifications	UL/cUL listed, Veritas, DNV Marine
Electrical insulation class	Class II
IP degree of protection	IP65 conforming to IEC 60529 (completely sealed)
IK degree of protection	IK10 conforming to IEC 62262 (plain door)
Fire resistance	960 °C conforming to IEC 62208
Ambient air temperature for storage	-35…90 °C
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	128.000 cm
Package 1 Width	128.000 cm
Package 1 Length	68.000 cm
Package 1 Weight	72.000 kg
Warranty	18 months
