Schneider Electric NSYMUPLA74G
Horizontal coupling kit for PLA enclosure H750xD420 mm - 15 mm - IP55 coupling
- MPN
- NSYMUPLA74G
- EAN
- 3606480774157
- Category
- PanelSeT PLA
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYMUPLA74G?

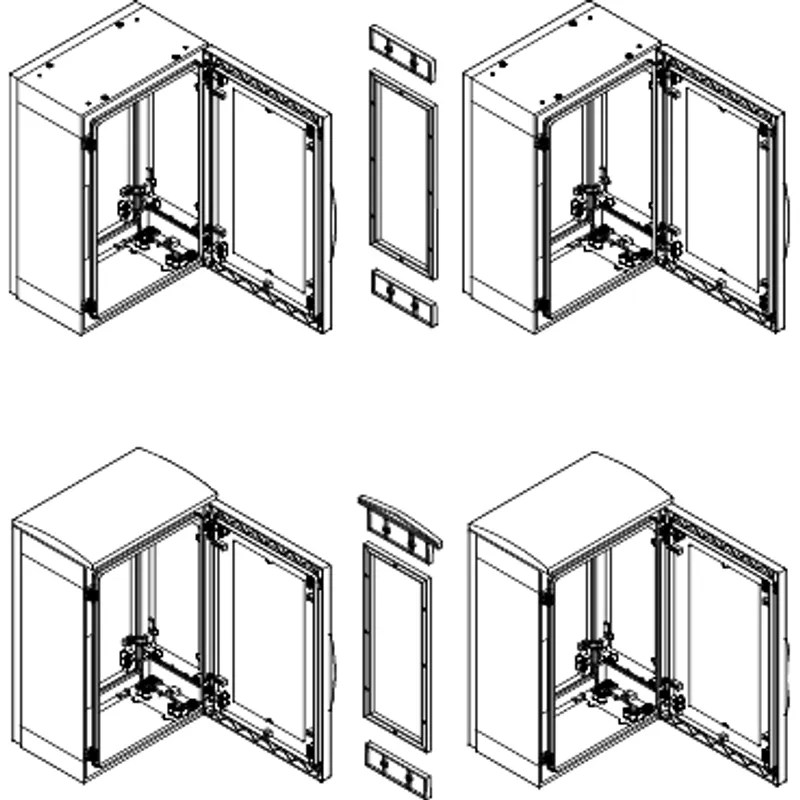

Coupling frame for PanelSeT PLA and PanelSeT PHD enclosures mounted on ZA plinth The frame is made from polyester The frame width is 15mm The nominal height is 750mm The depth is 420mm The coupling frame has a grey (RAL 7035) color Fixed on side coupling of 2 enclosures The kit is made of 1 frame and fixing elements Suitable for multi-purpose applications Ingress protection rating is IP55
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Coupling accessory |
| Product or component type | Coupling frame |
| Anwendung | Multi-purpose |
| Mounting location | Side coupling of 2 enclosures |
| Mounting support | ZA plinth |
| Range compatibility | PanelSeT PLA suitable enclosure, PanelSeT PHD suitable enclosure |
| Device composition | 1 frame, fixing elements |
| Material | Frame: polyester |
| Height | Nominal: 750 mm |
| Width | Frame: 15 mm |
| Depth | 420 mm |
| IP degree of protection | IP55 |
| Colour | Grey (RAL 7035) |
Packaging
| Package 1 | 1 PCE, 37.000 cm × 62.000 cm × 3.500 cm (L × W × H), 900.000 g |
| Package 2 | 4 PAL, 120.000 cm × 45.000 cm × 29.000 cm (L × W × H), 3.600 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYMUPLA74G: frequently asked questions
When can NSYMUPLA74G be shipped?
NSYMUPLA74G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYMUPLA74G in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYMUPLA74G and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYMUPLA74G, subject to availability and destination.
